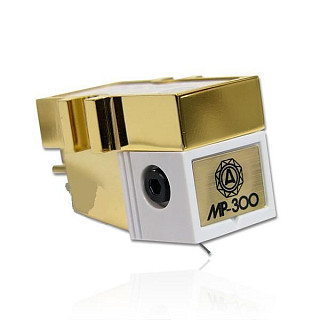

Nagaoka MP-300

Nagaoka - MP-300


Na objednávku do 3 dnů

21 790 Kč


Stav desky:
NEW nová - bez poškození
více ZDE


Cartridge for very demanding listeners. Thanks to the high-quality Superfine elliptical diamond tip and especially the boron shake and low output voltage, the presentation of this transmission is undoubtedly very reference and comparable to top MC type transmissions at a relatively lower price and preferably an exchangeable tip.

We offer free installation and professional settings of the catridges  purchased from us!

Type: Moving Magnet (MM)

Principle: Nagaoka MI technology® MI (Moving Iron)

Boron canteliver for high fidelity

Installation: 1/2 ″ mounting

Tip: Superfine polished elliptical diamond (0.4x0.7 mm)

Magnet: Powerful Samarium Cobalt Magnet (REC30) - samarium with cobalt

Output voltage: 3.0 mV / 1kHz, 5cm / sec: 5mV /

Frequency range: 20 Hz - 25 kHz

Channel balance: 1 kHz:> 1.0 dB

Crosstalk between channels: 1 kHz:> 25 dB

Impedance: 47 kΩ

Capacity: 100pF

Dynamic flexibility: 7.2x10 - 6 cm / dyn

Static flexibility: 20x10 - 6 cm / dyn

Weight: 8.0 g

Recommended pressure: 1.5 - 2.0 g
