Pioneer SA-500A + CS-66


Pioneer - SA-500A + CS-66

Availability

In Stock

29 900 Czk
pc

Info

Release:1971

Description

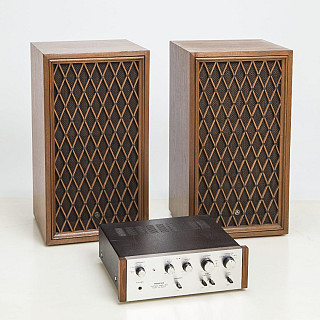

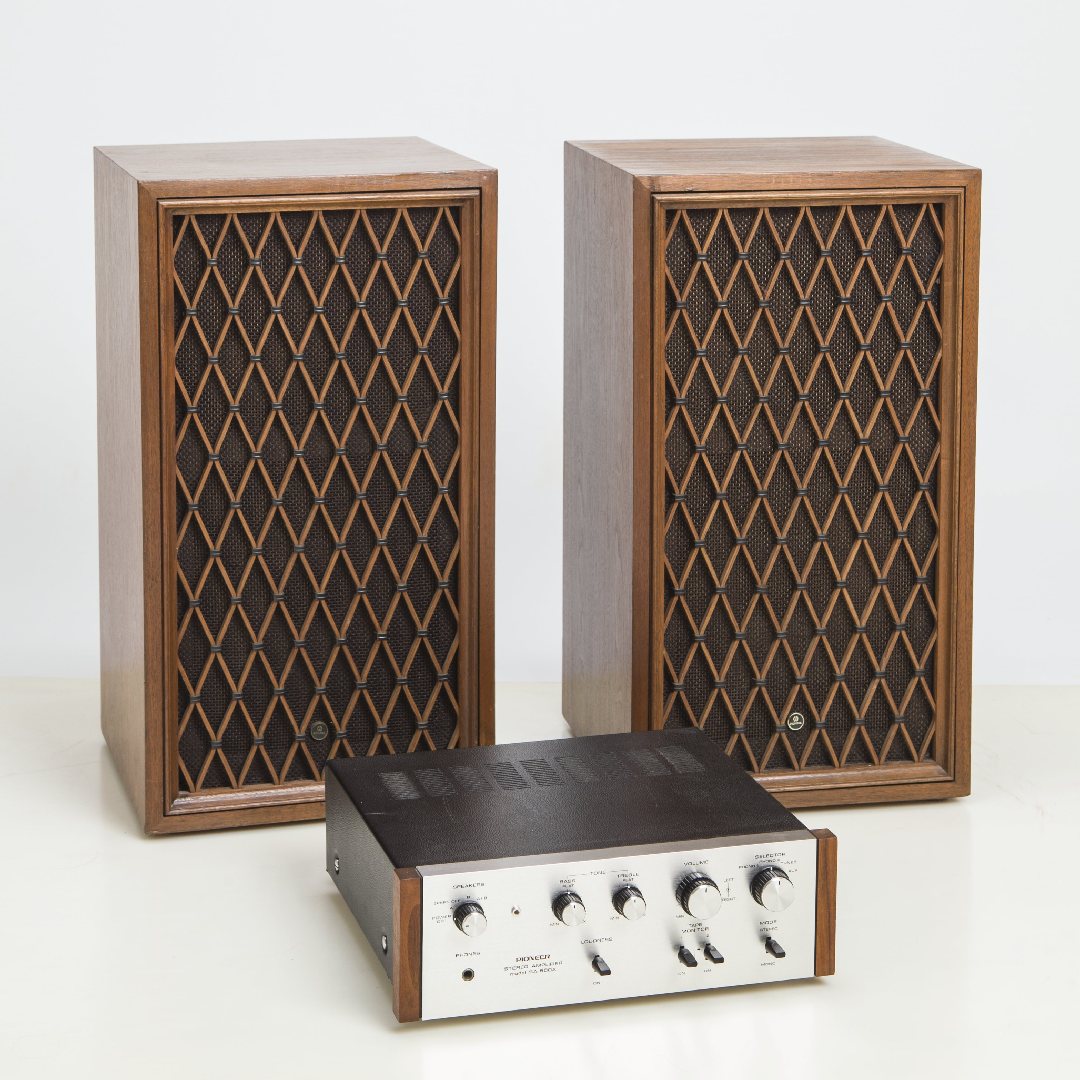

Vintage Hi-Fi of amplifier

Pioneer SA-500 and speakers Pioneer CS-66.

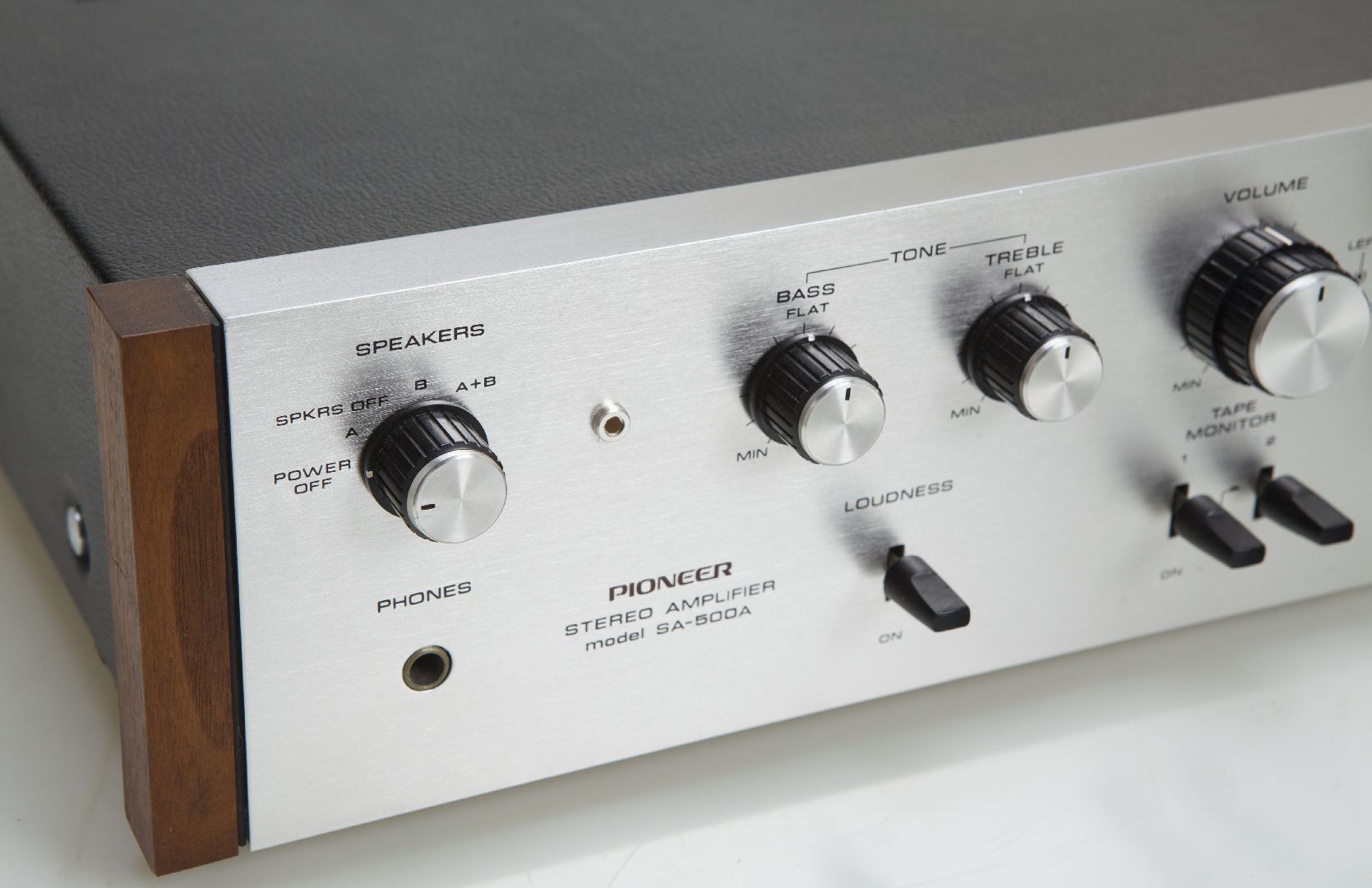

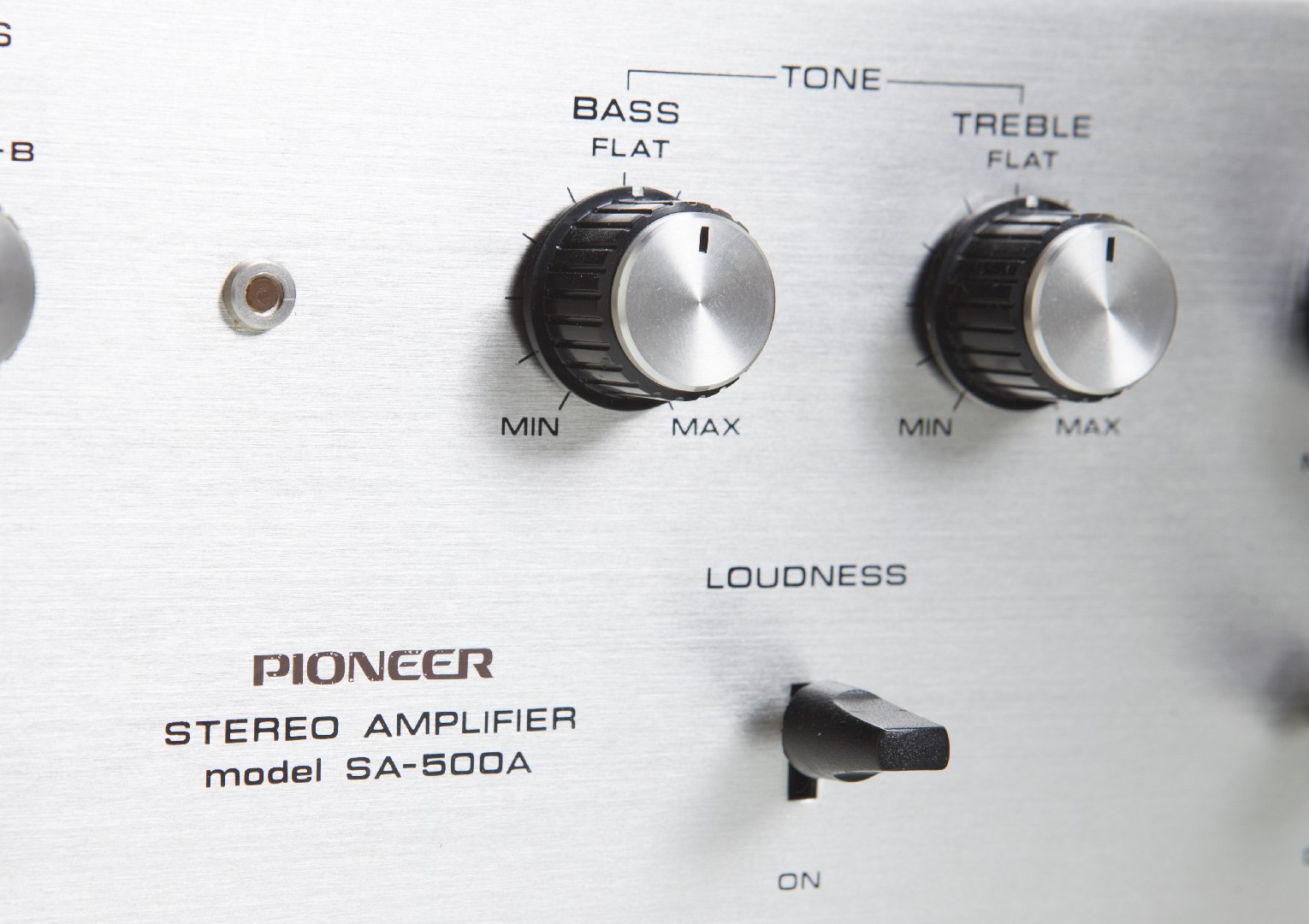

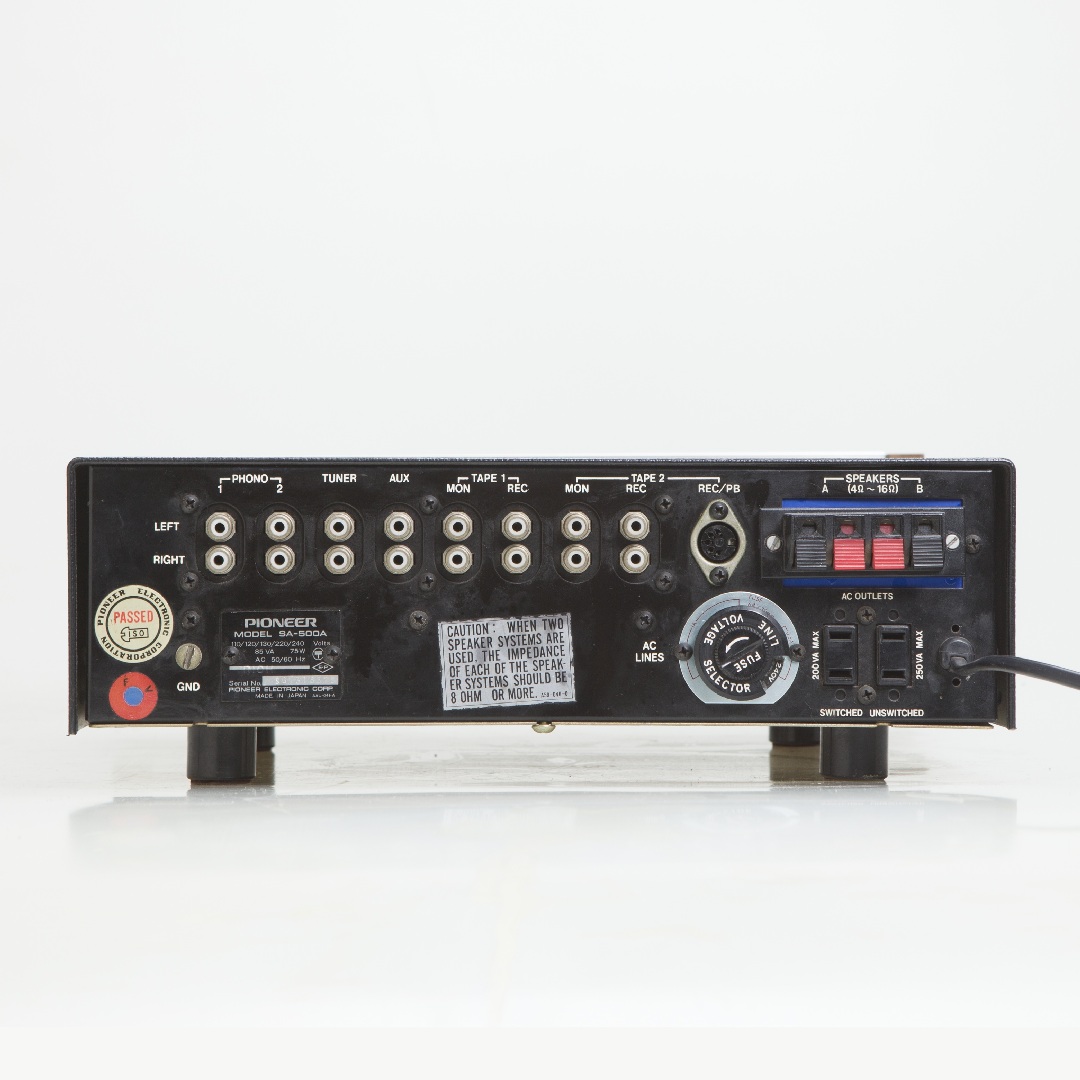

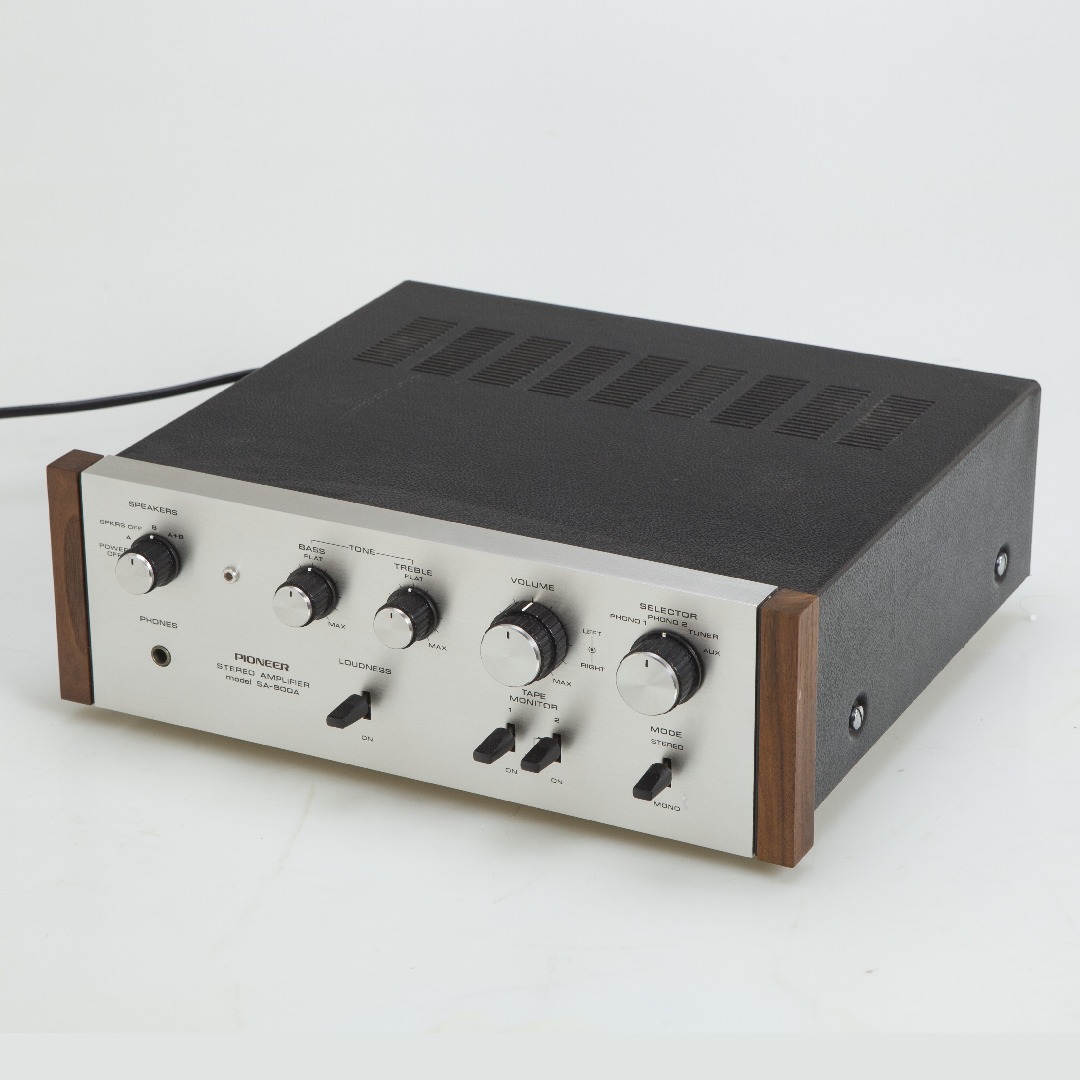

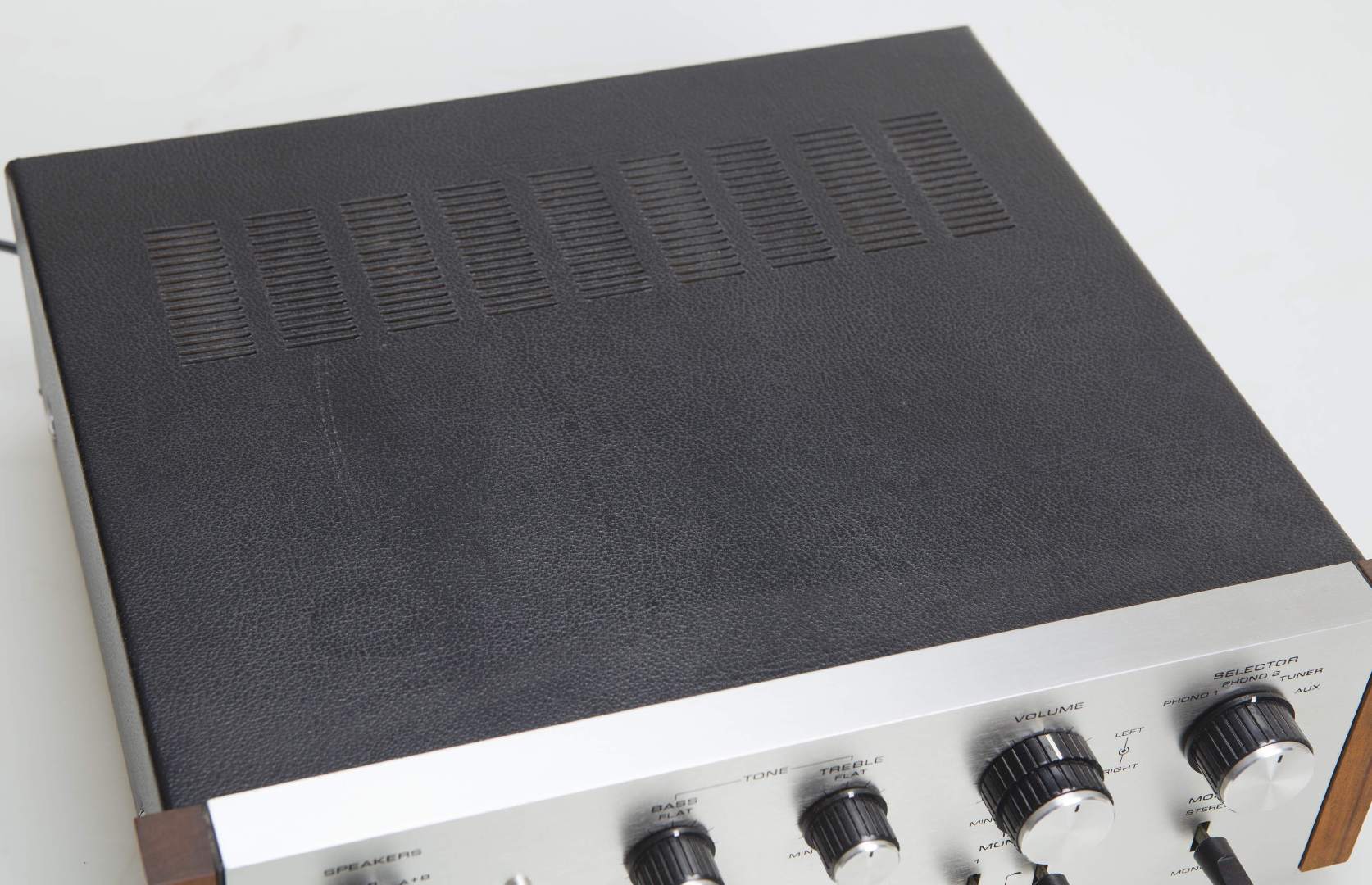

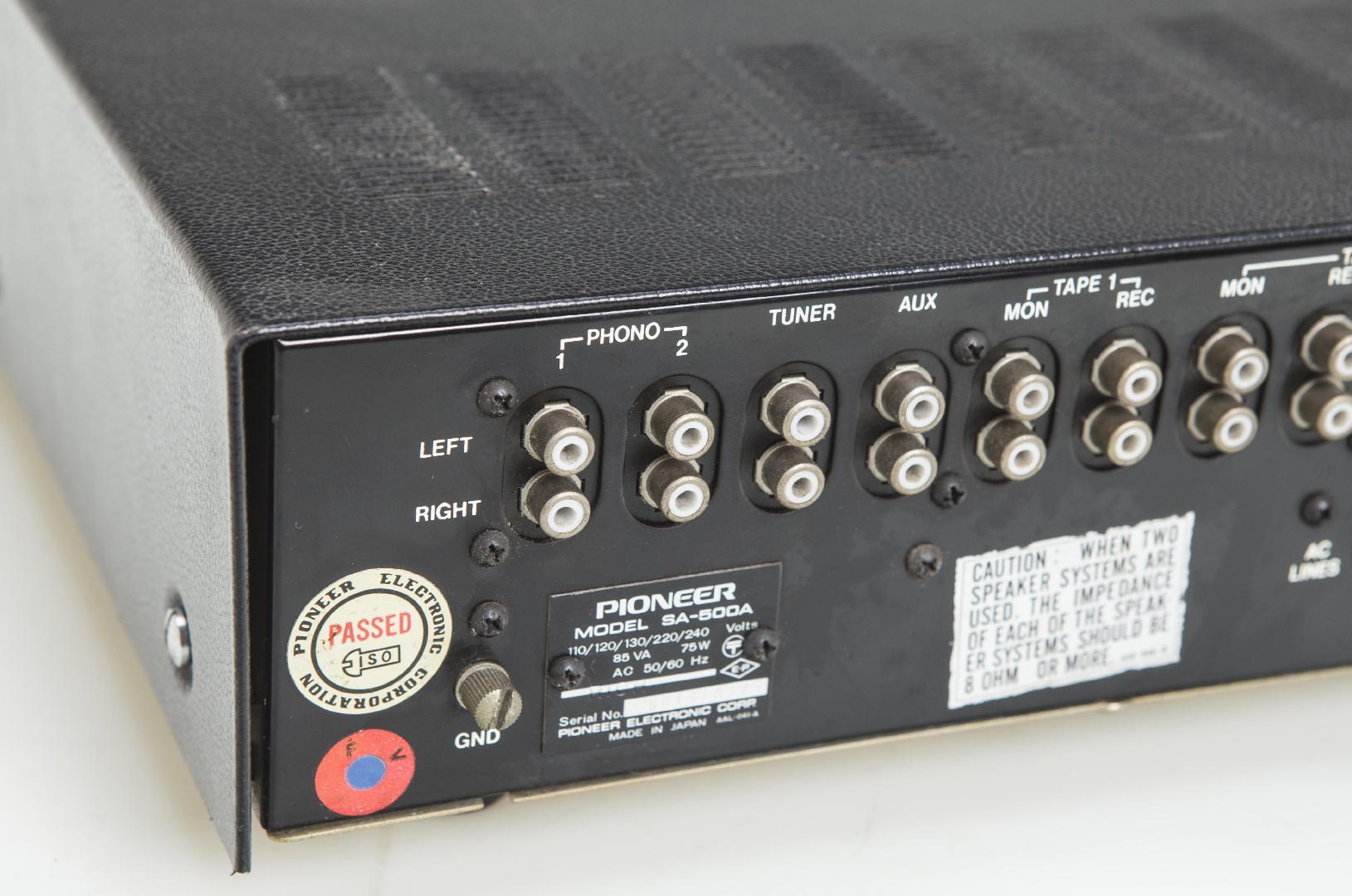

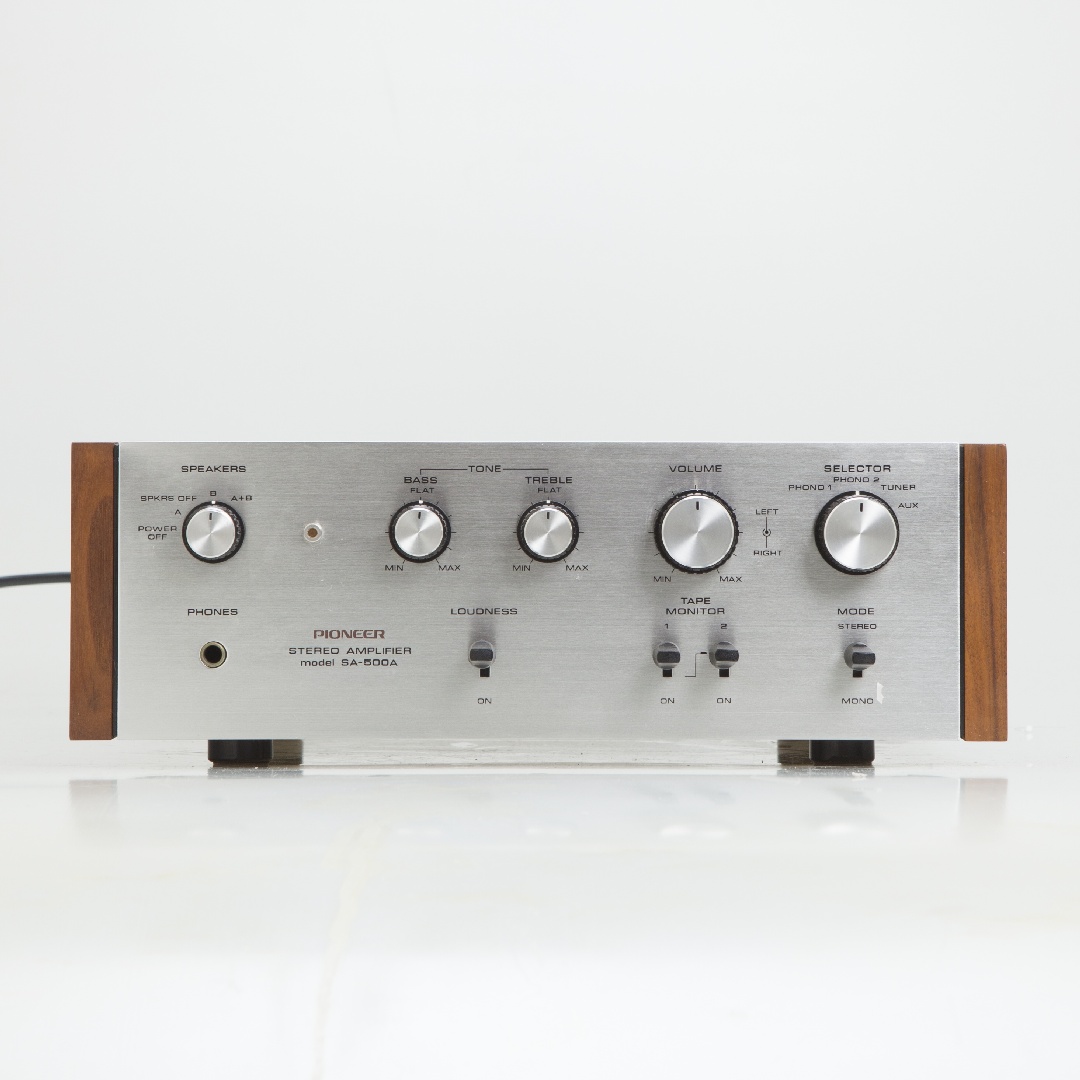

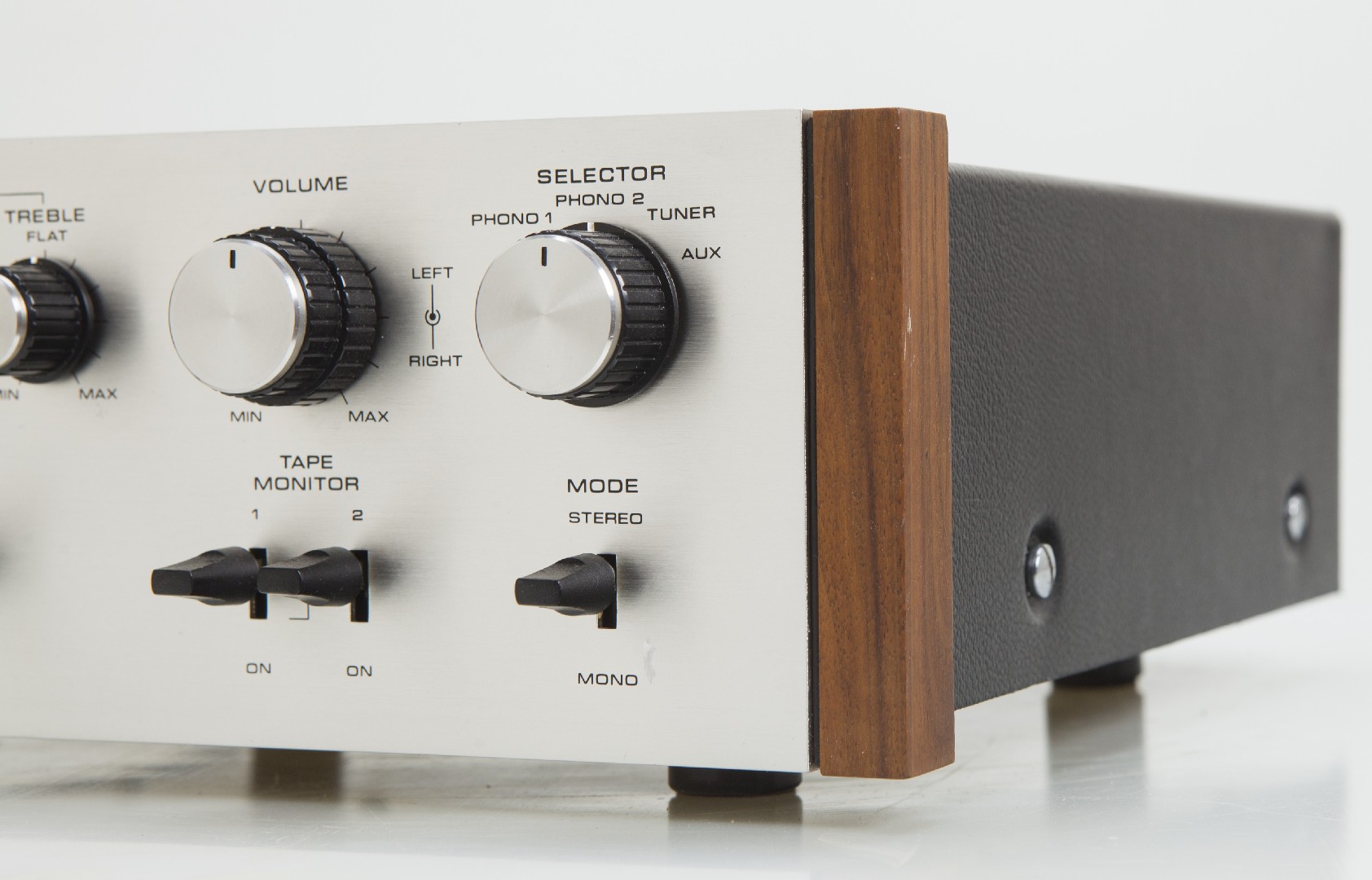

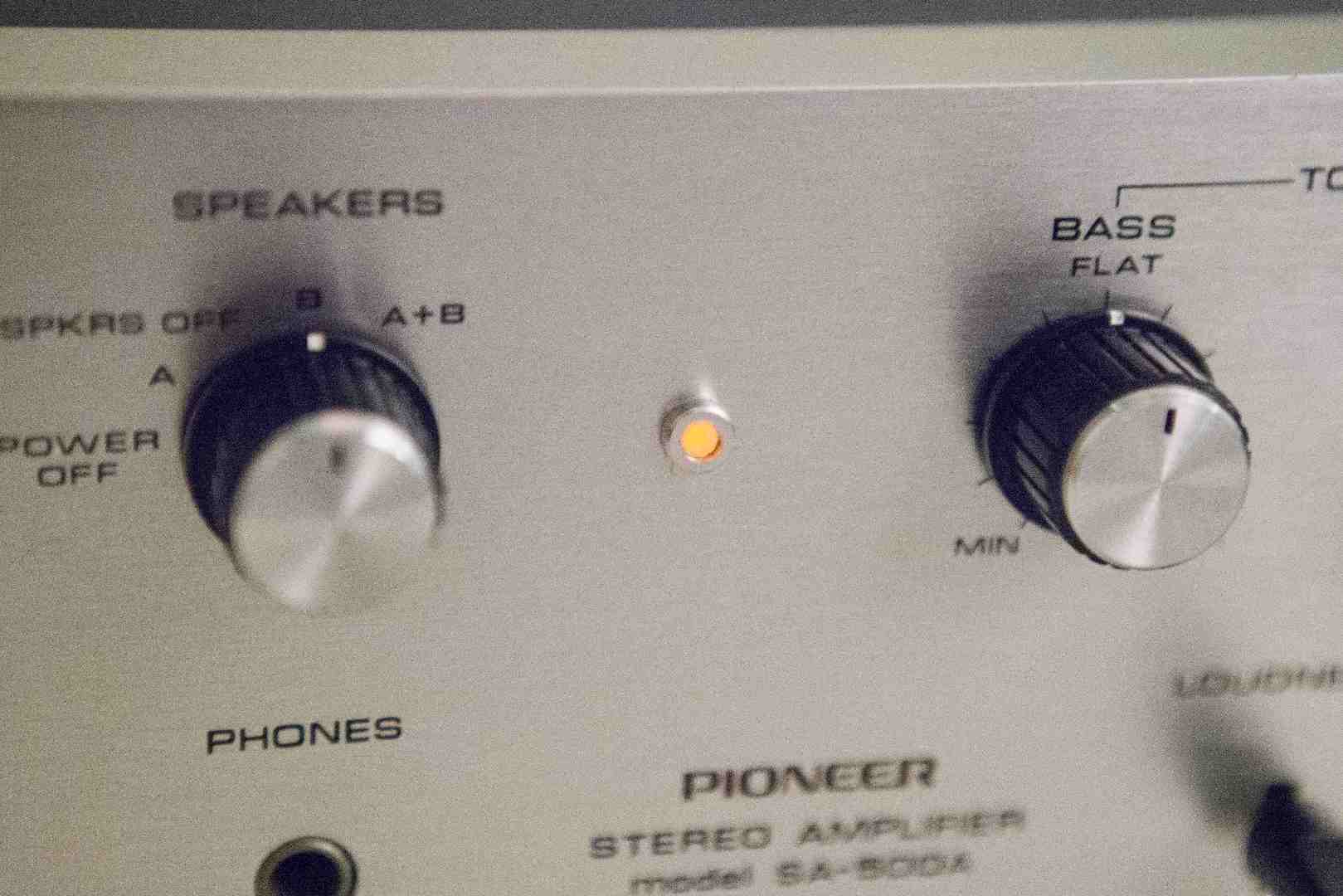

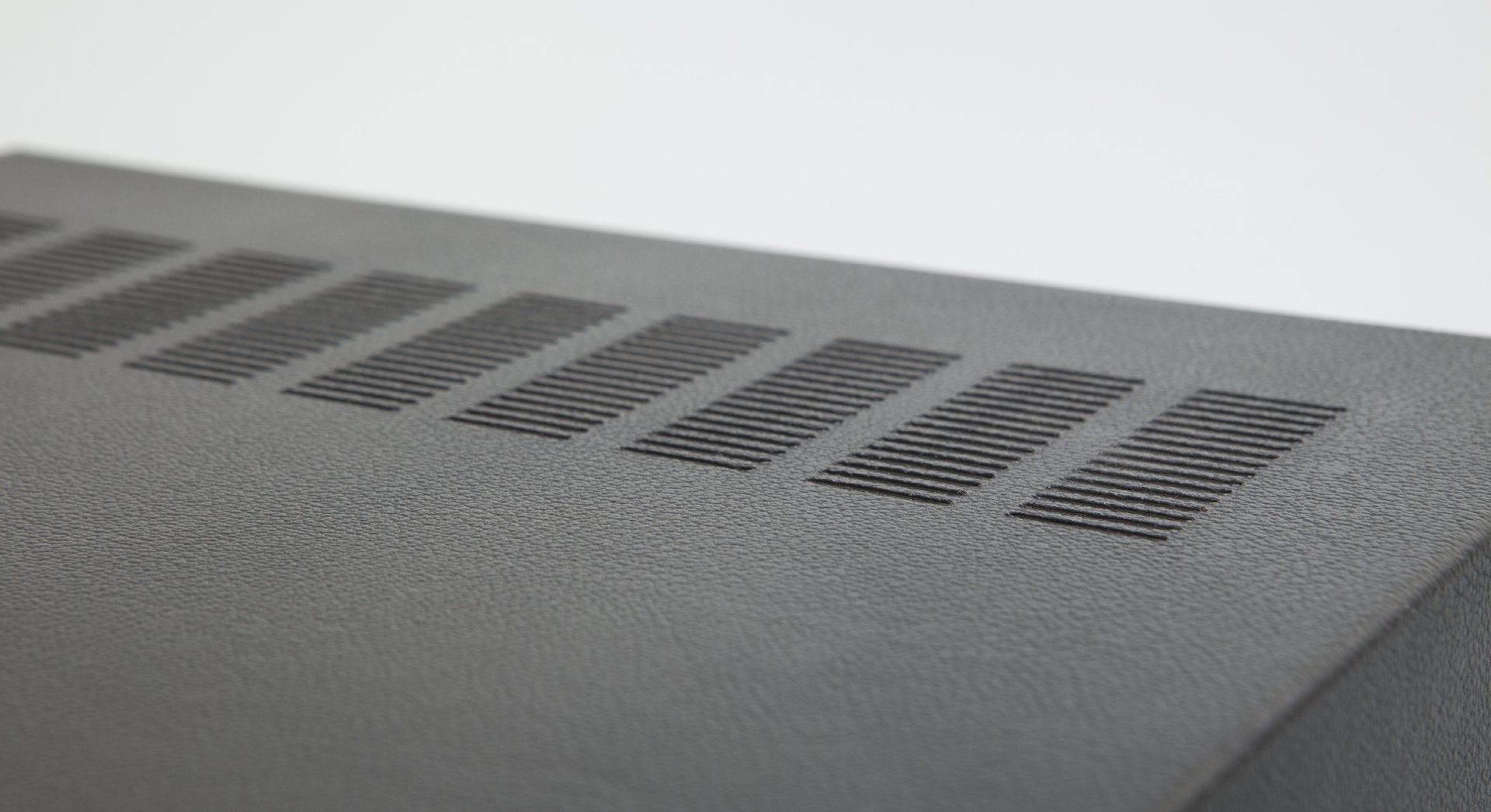

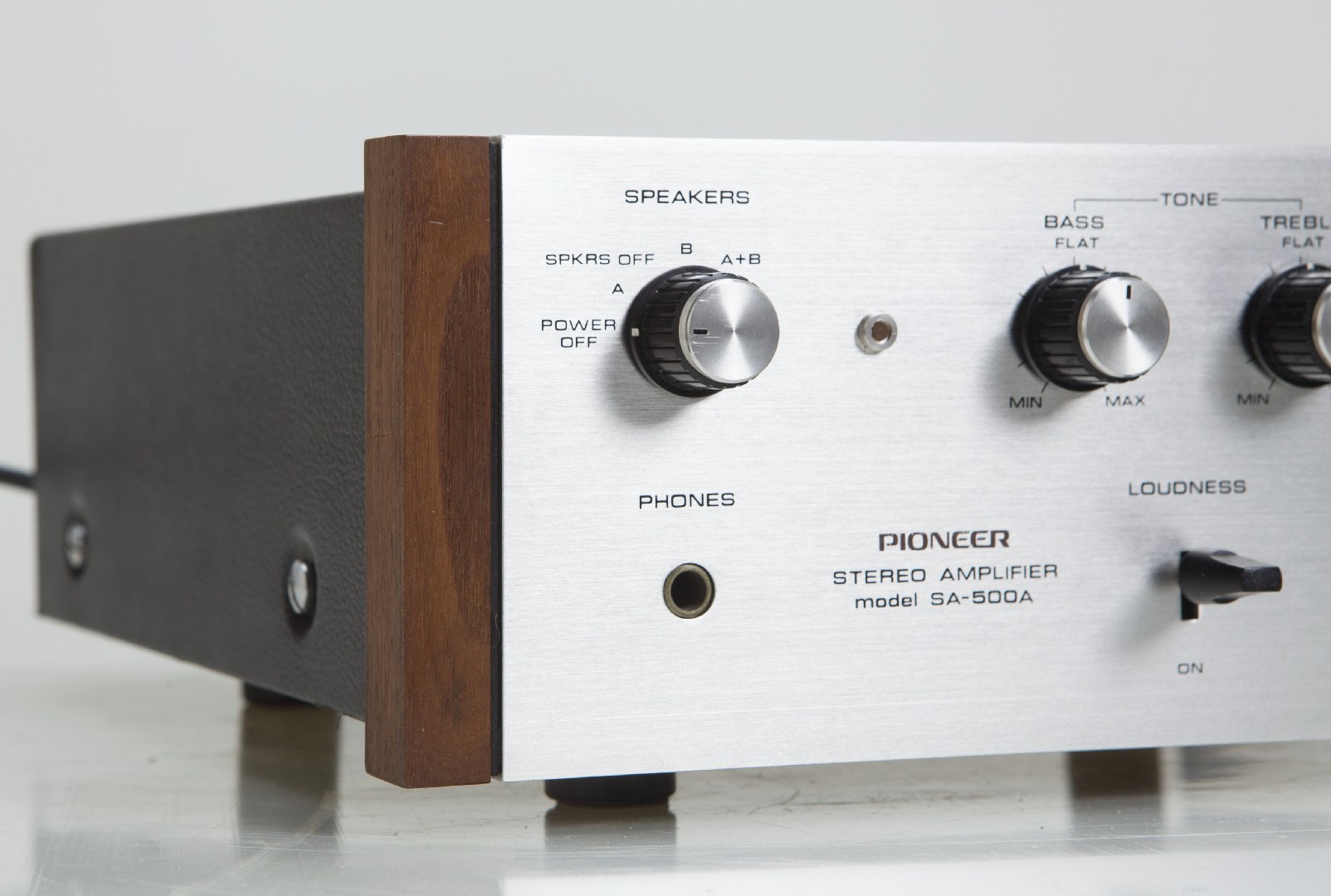

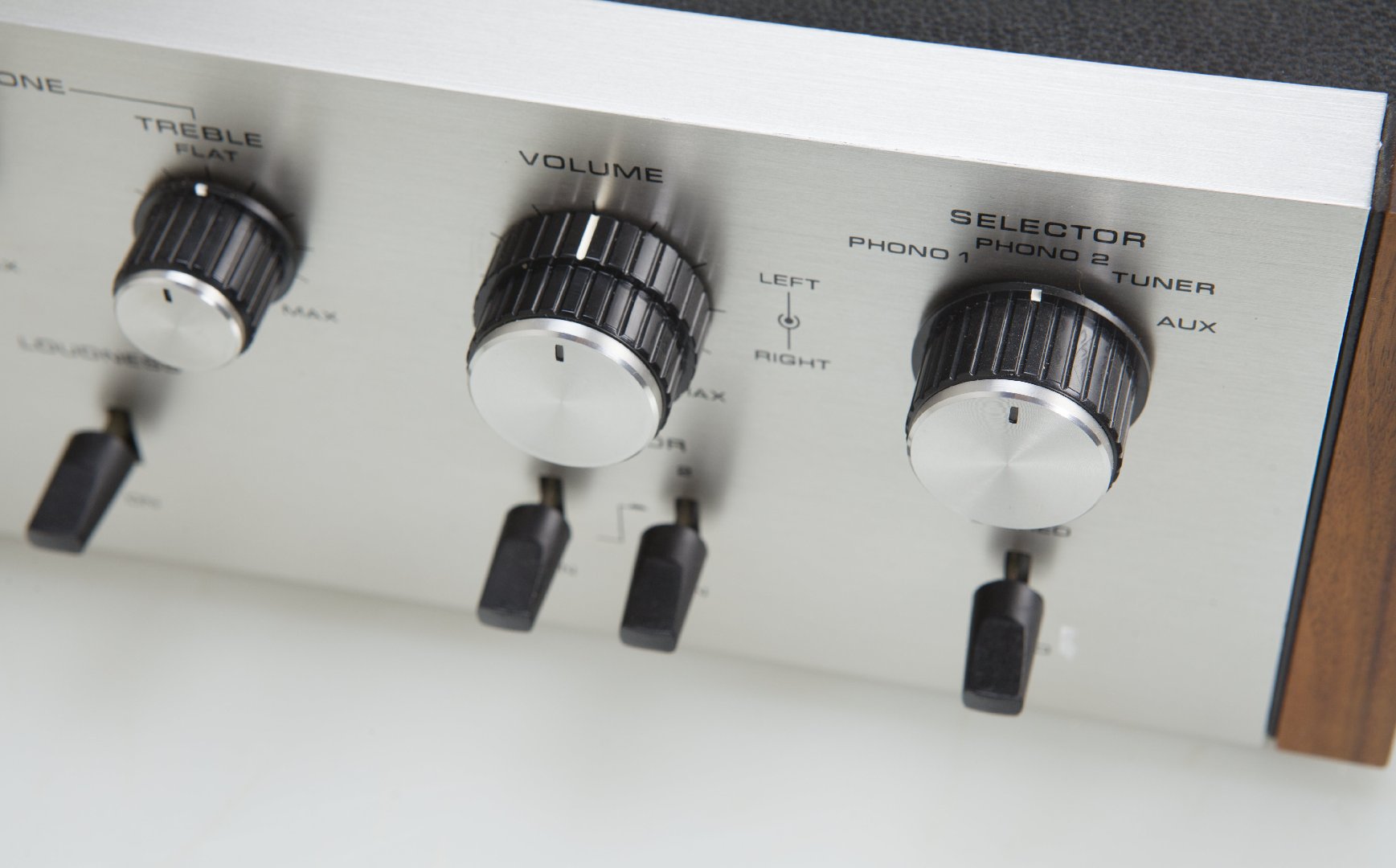

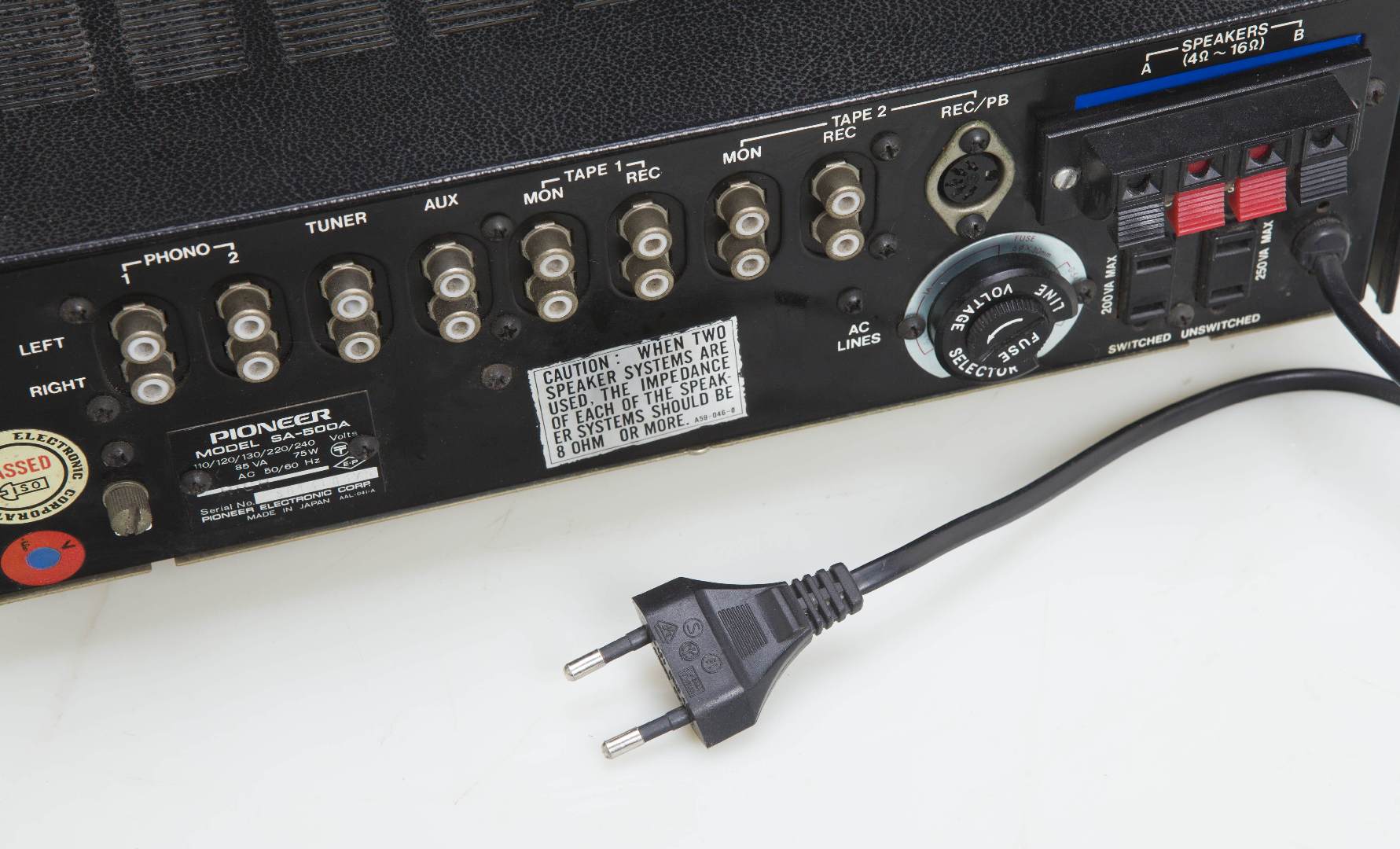

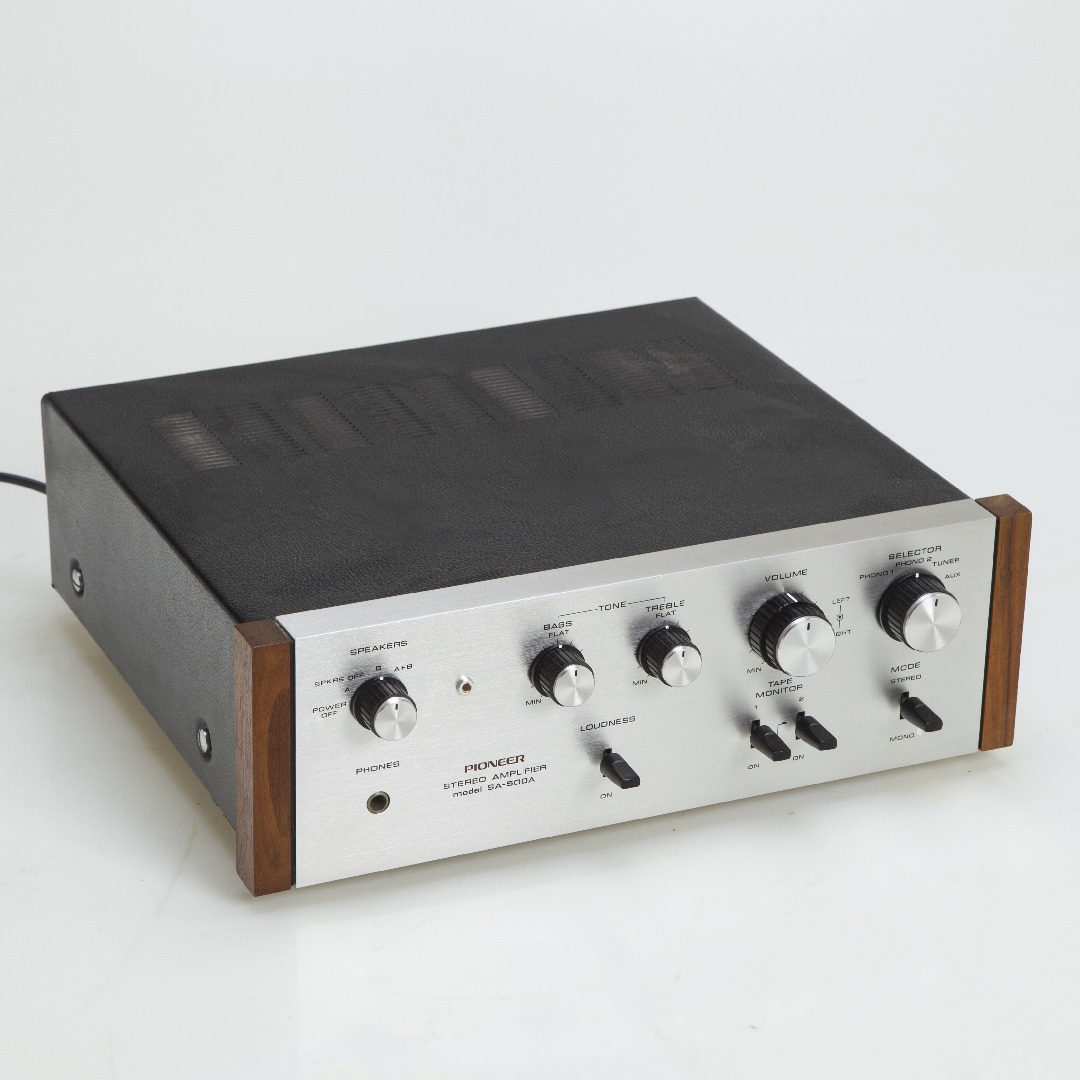

SA-500

Specifications

Power output: 13 watts per channel into 8Ω (stereo)

Frequency response: 30Hz to 50kHz

Total harmonic distortion: 0.5%

Damping factor: 40

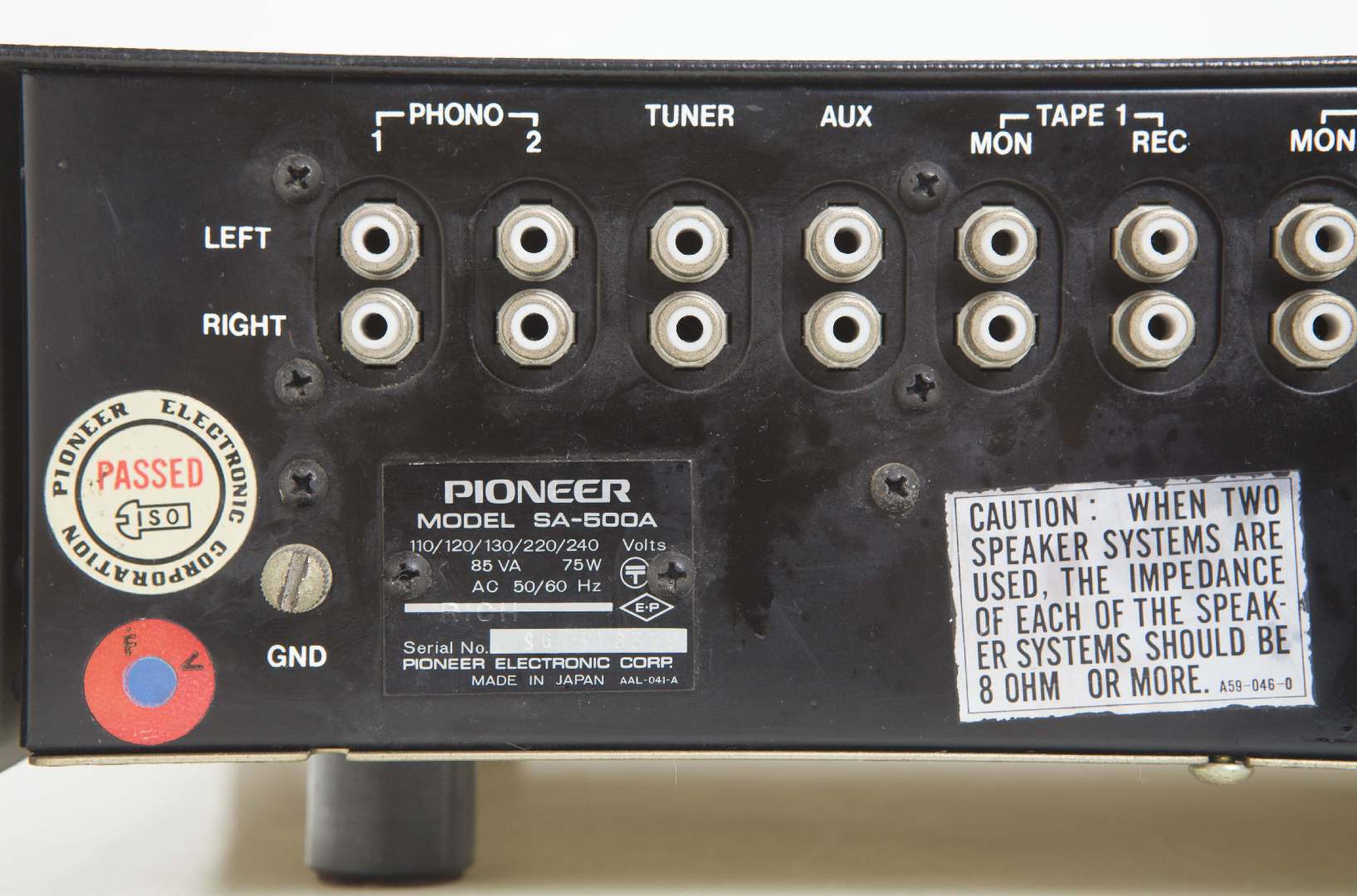

Input sensitivity: 2.5mV (MM), 200mV (line)

Signal to noise ratio: 75dB (MM), 90dB (line)

Channel separation: 50dB (MM), 55dB (line)

Output: 200mV (line)

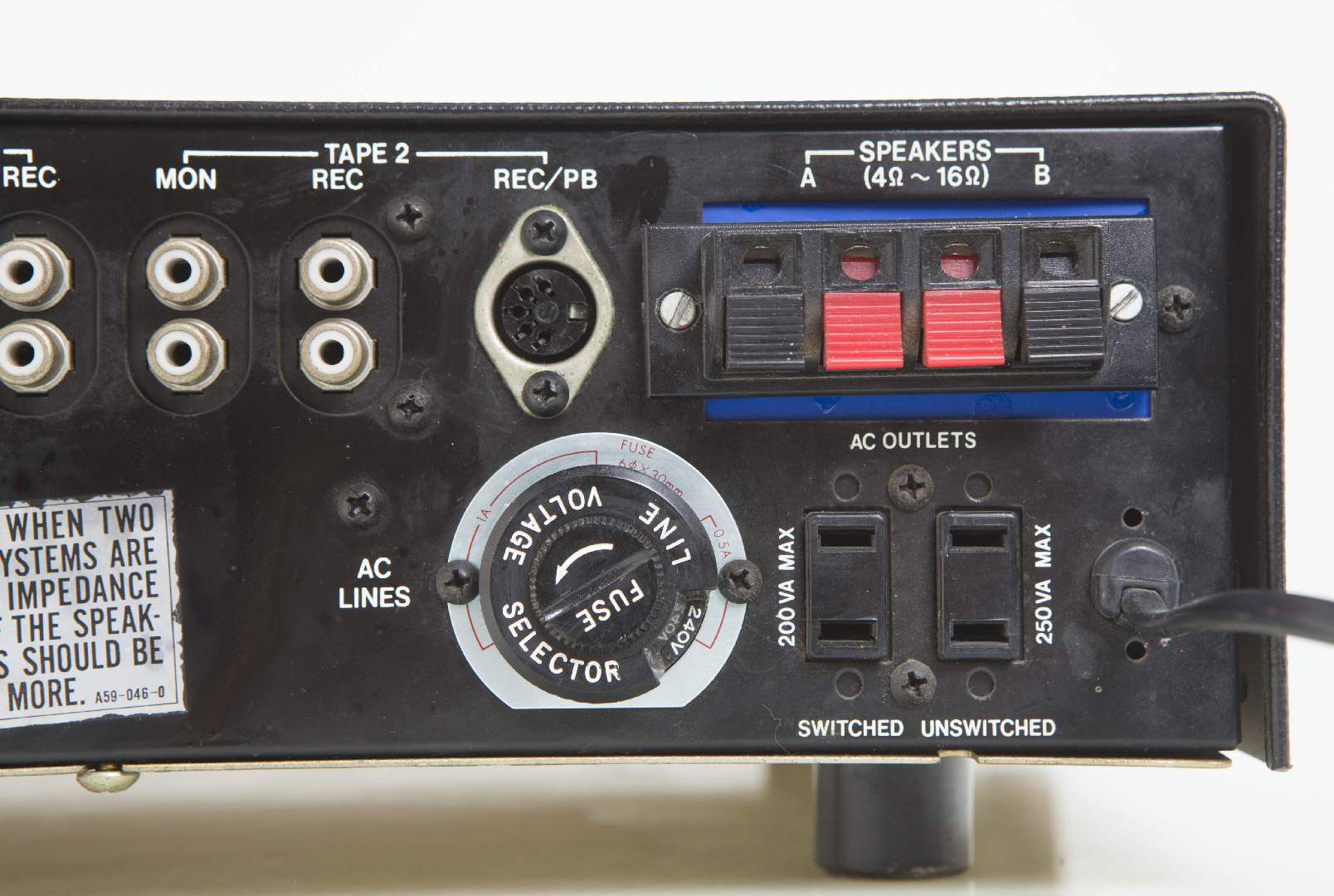

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 18 x transistors, 6 x diodes

Dimensions: 330 x 118 x 316mm

Weight: 5.5kg

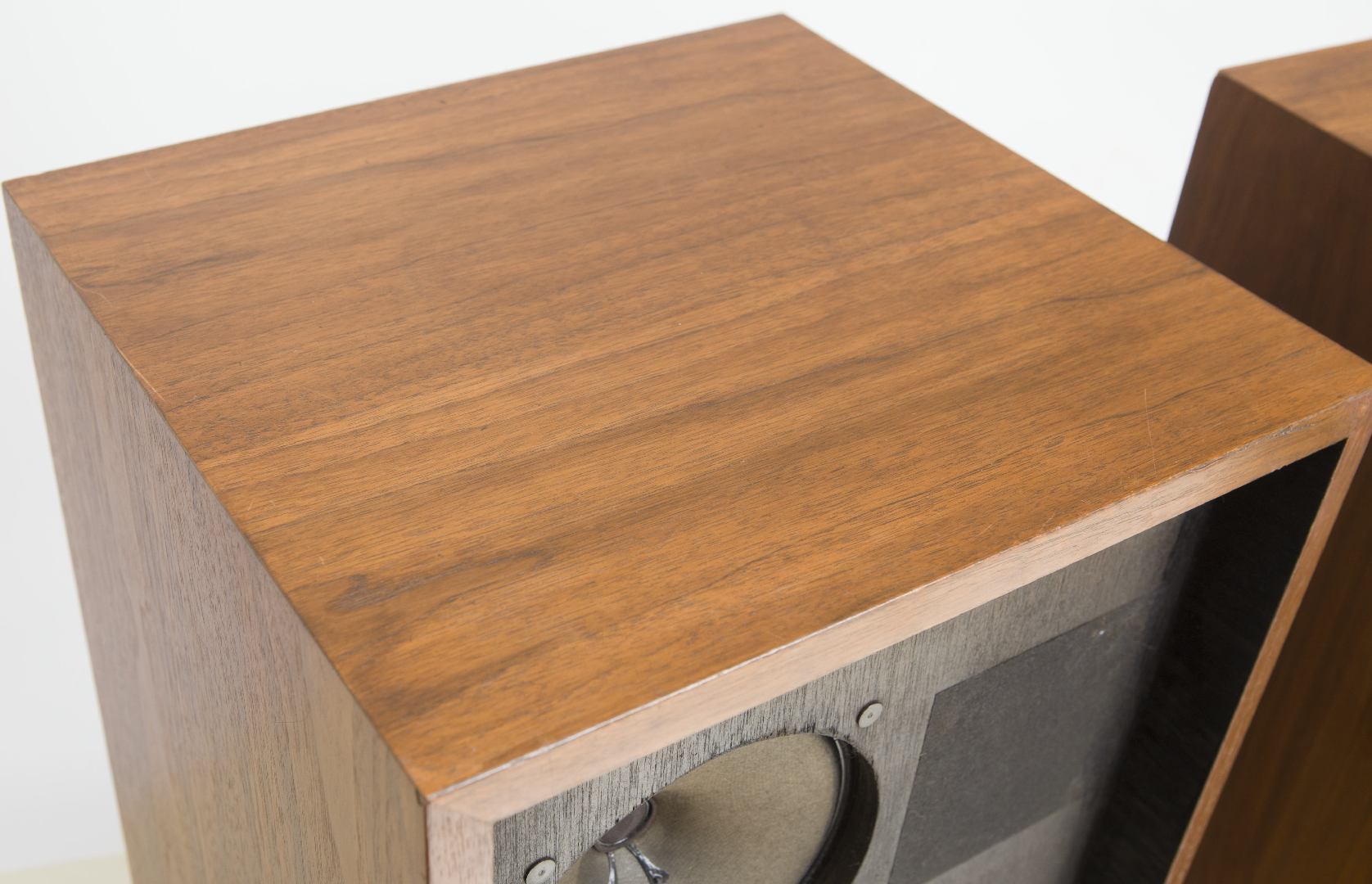

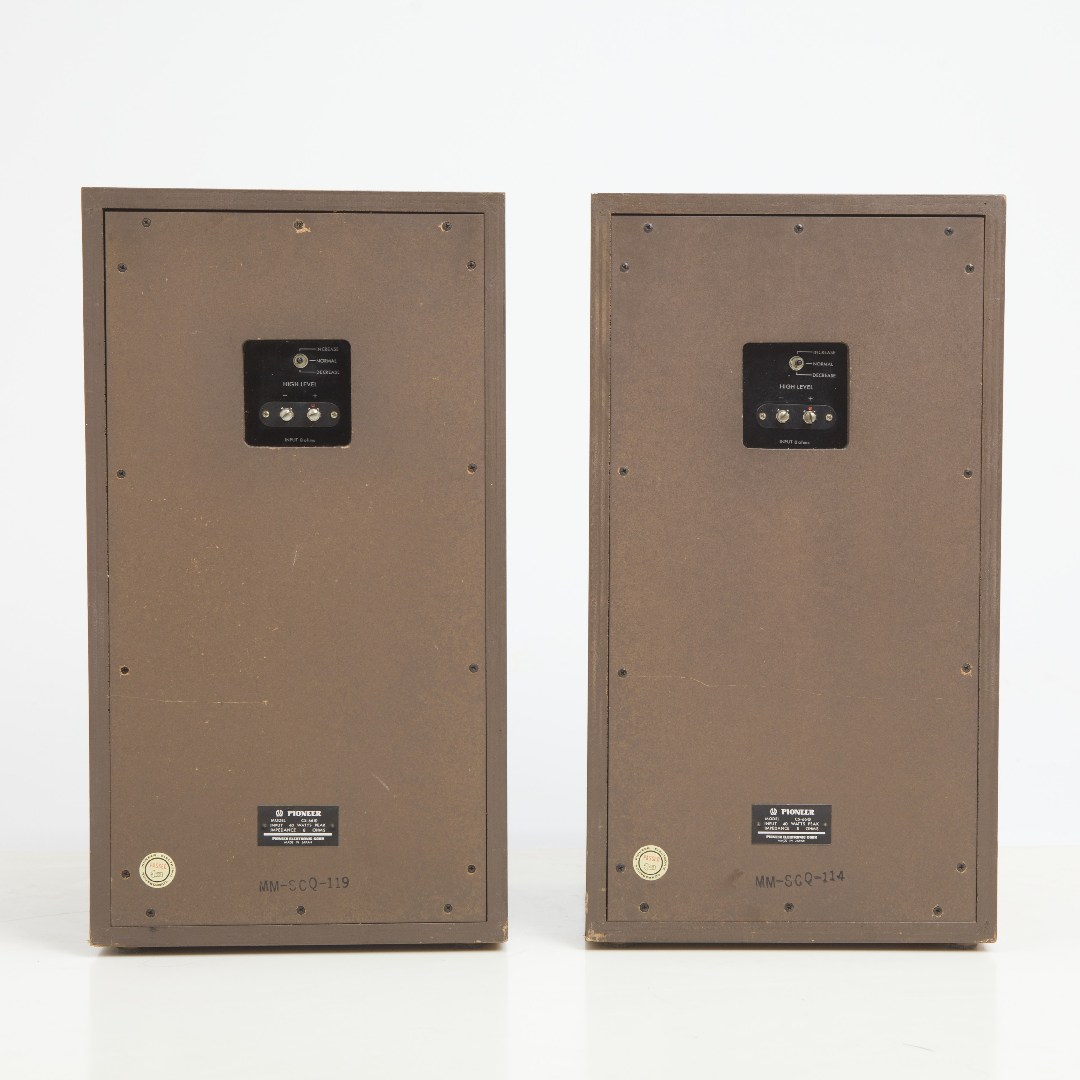

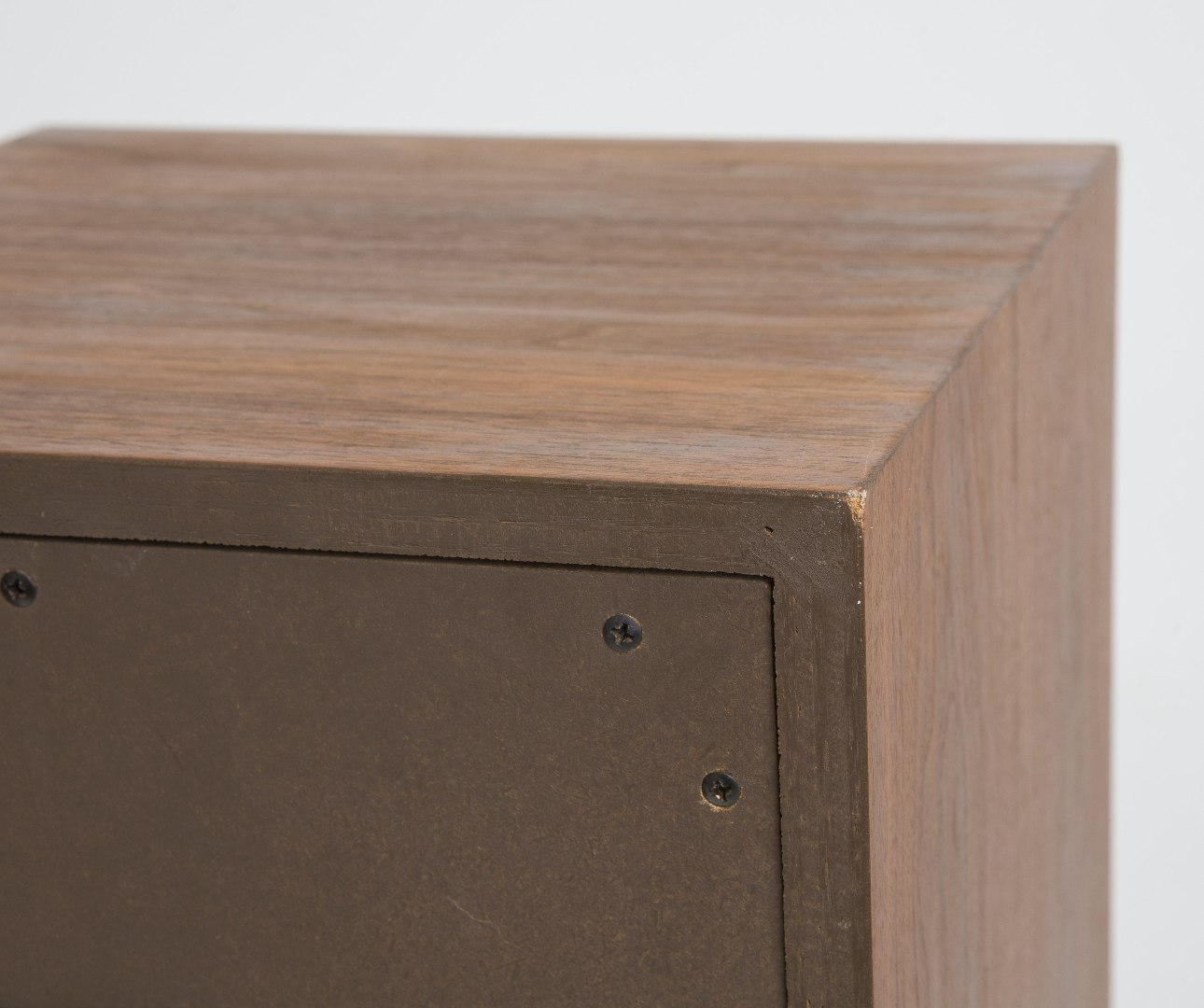

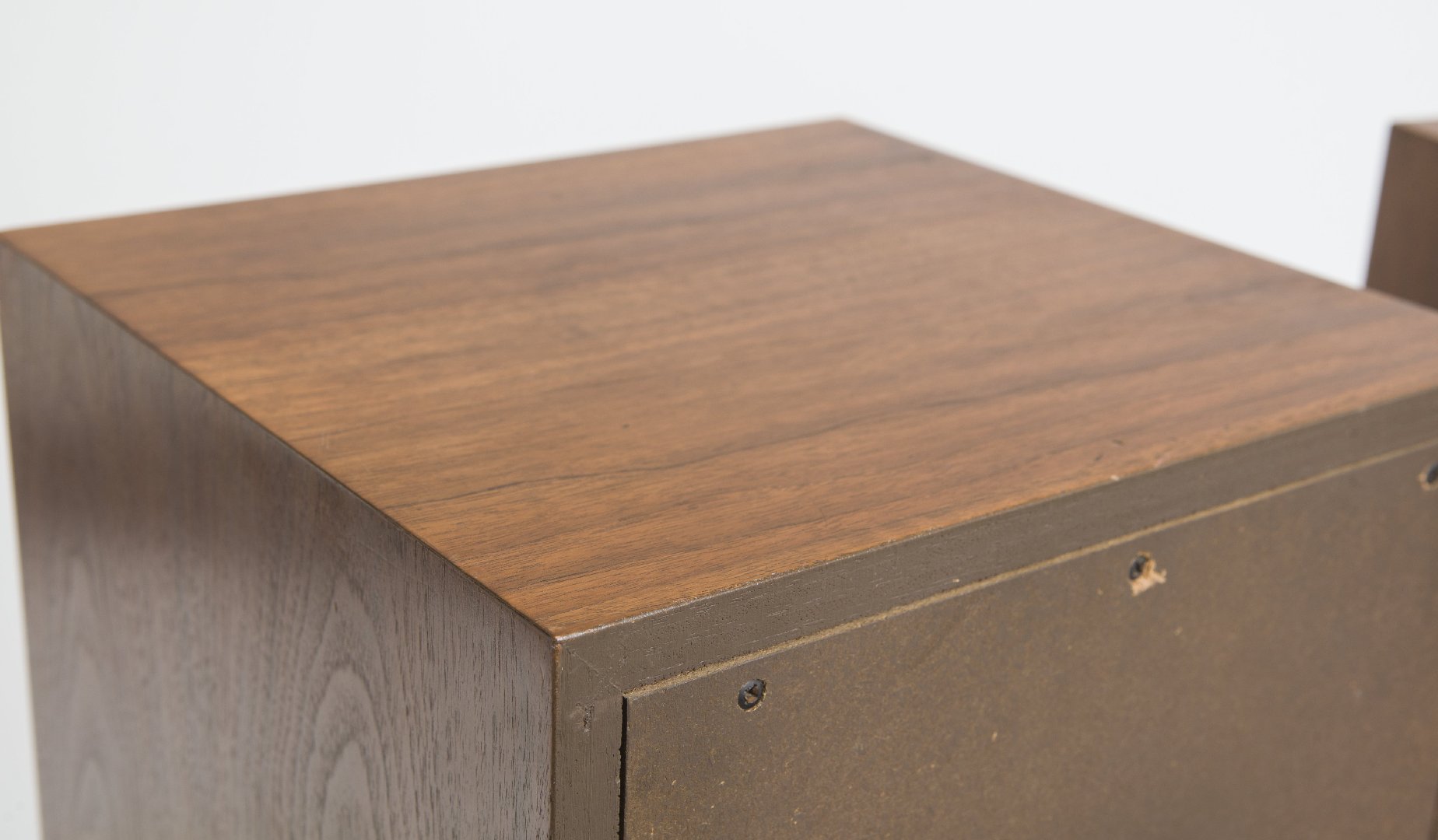

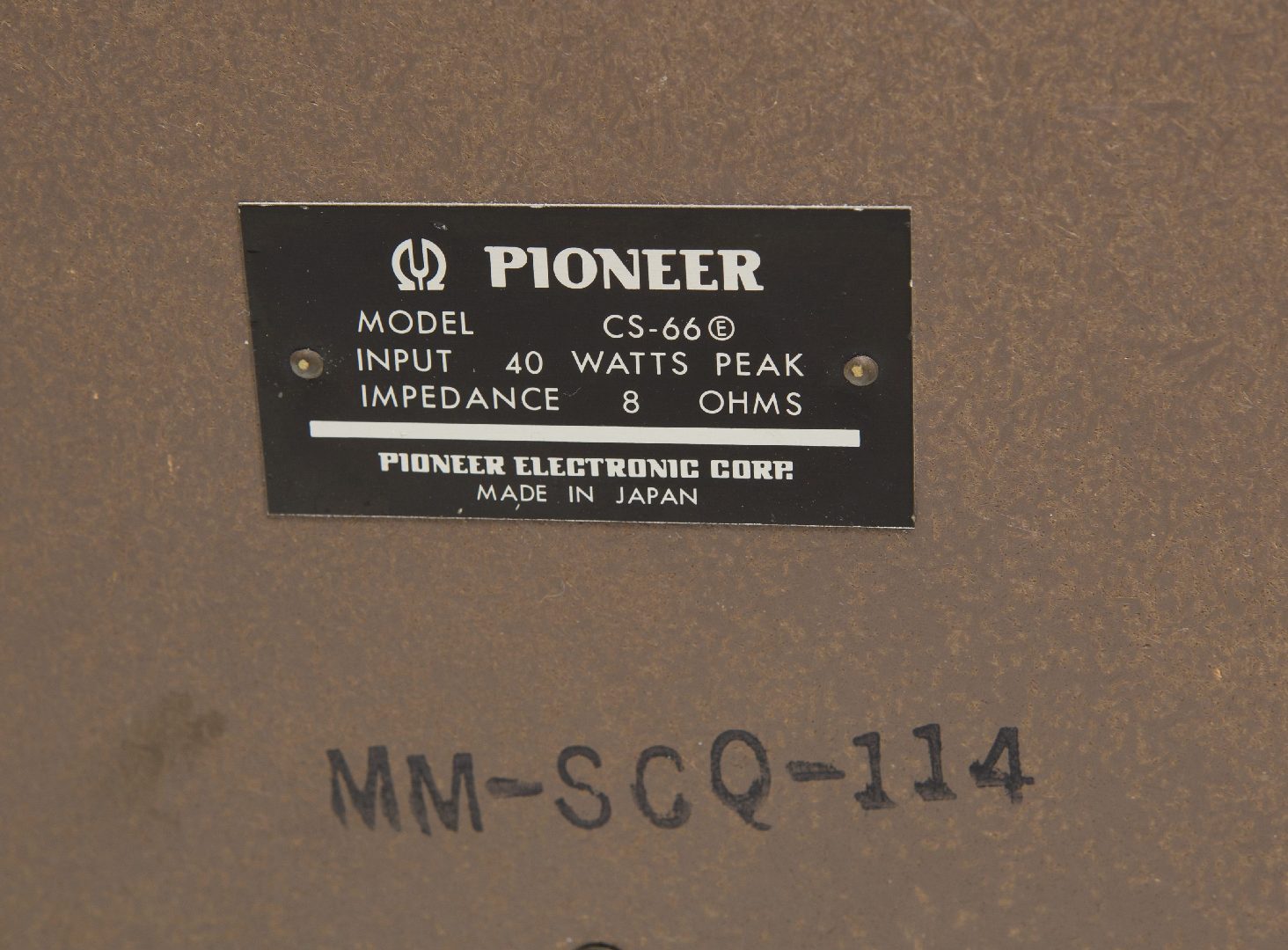

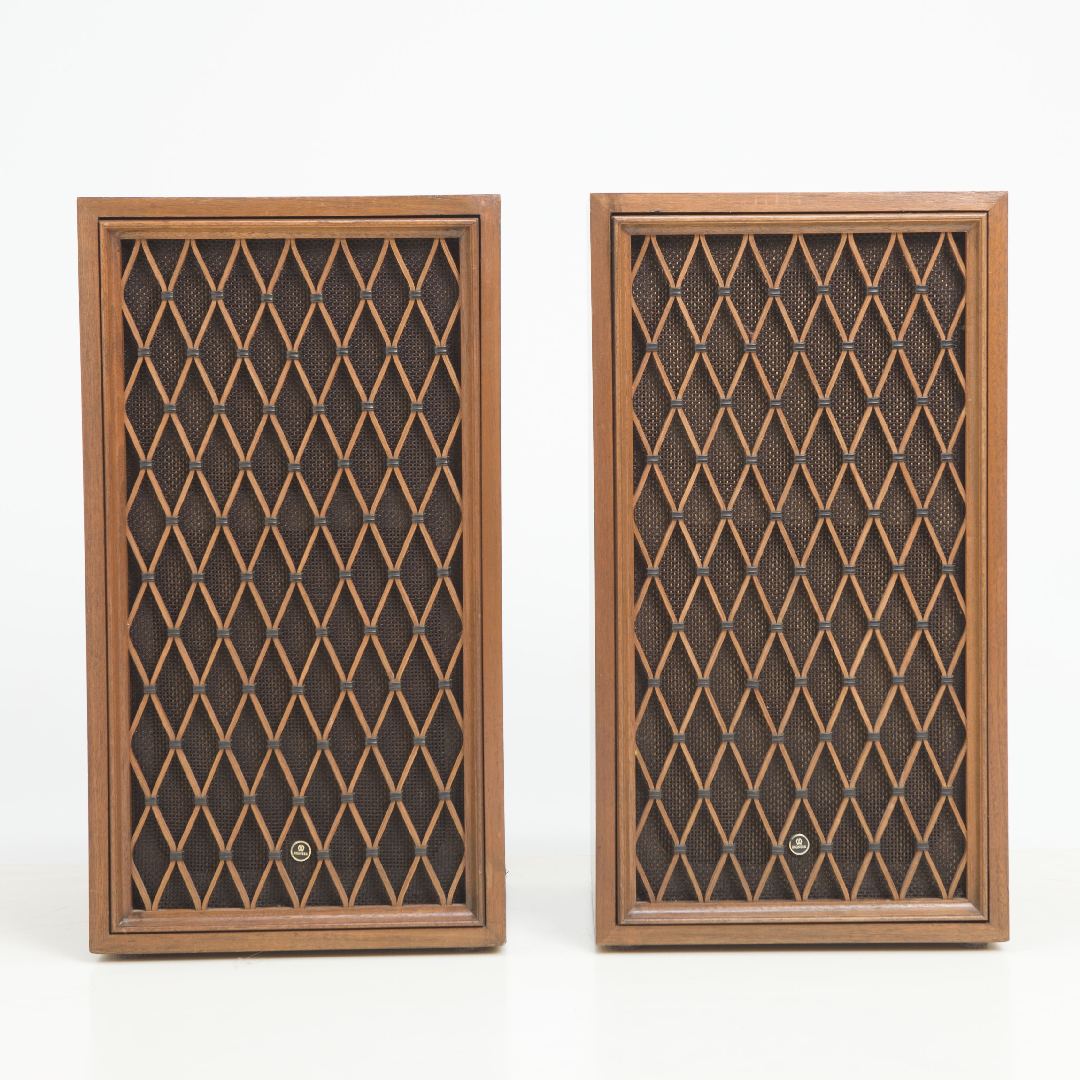

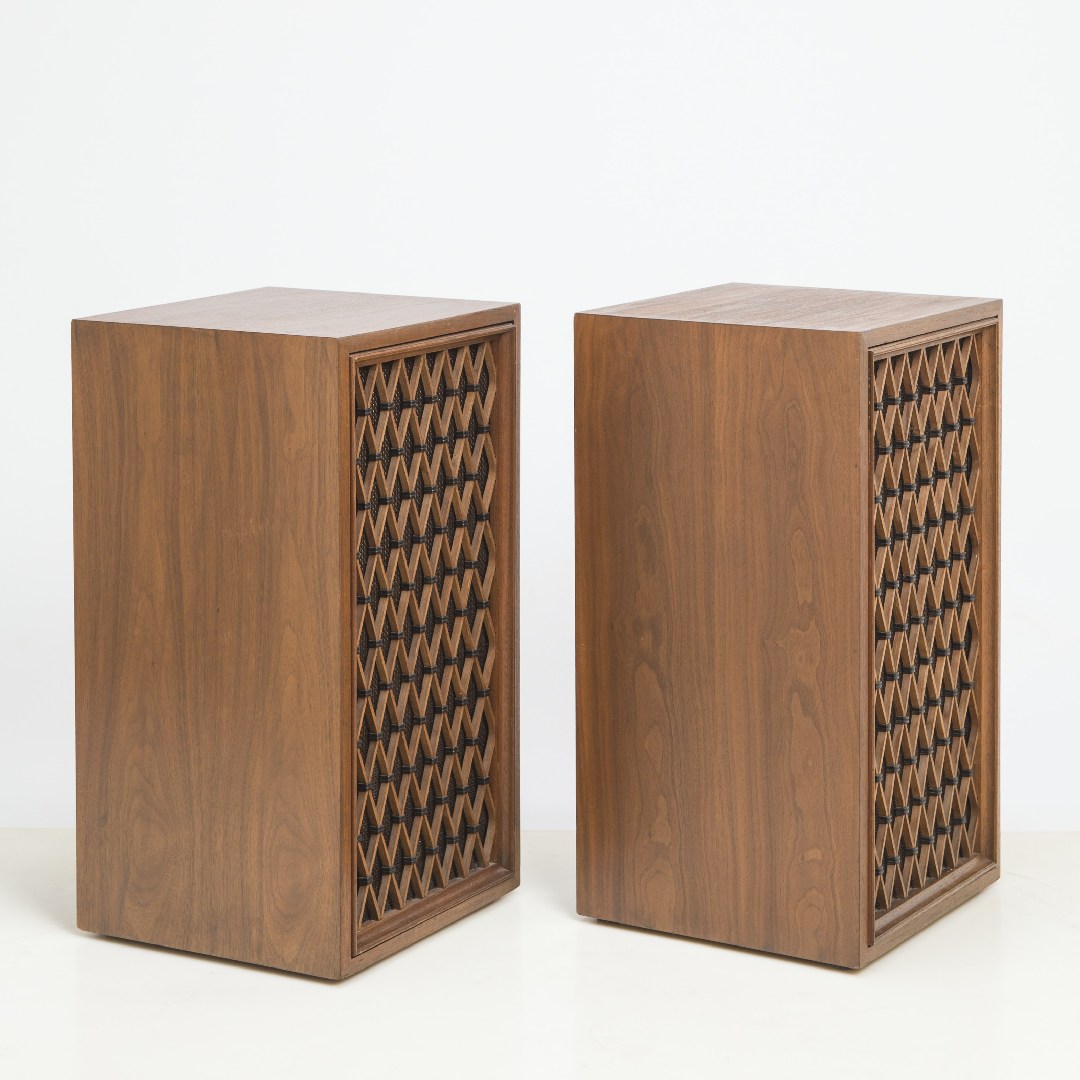

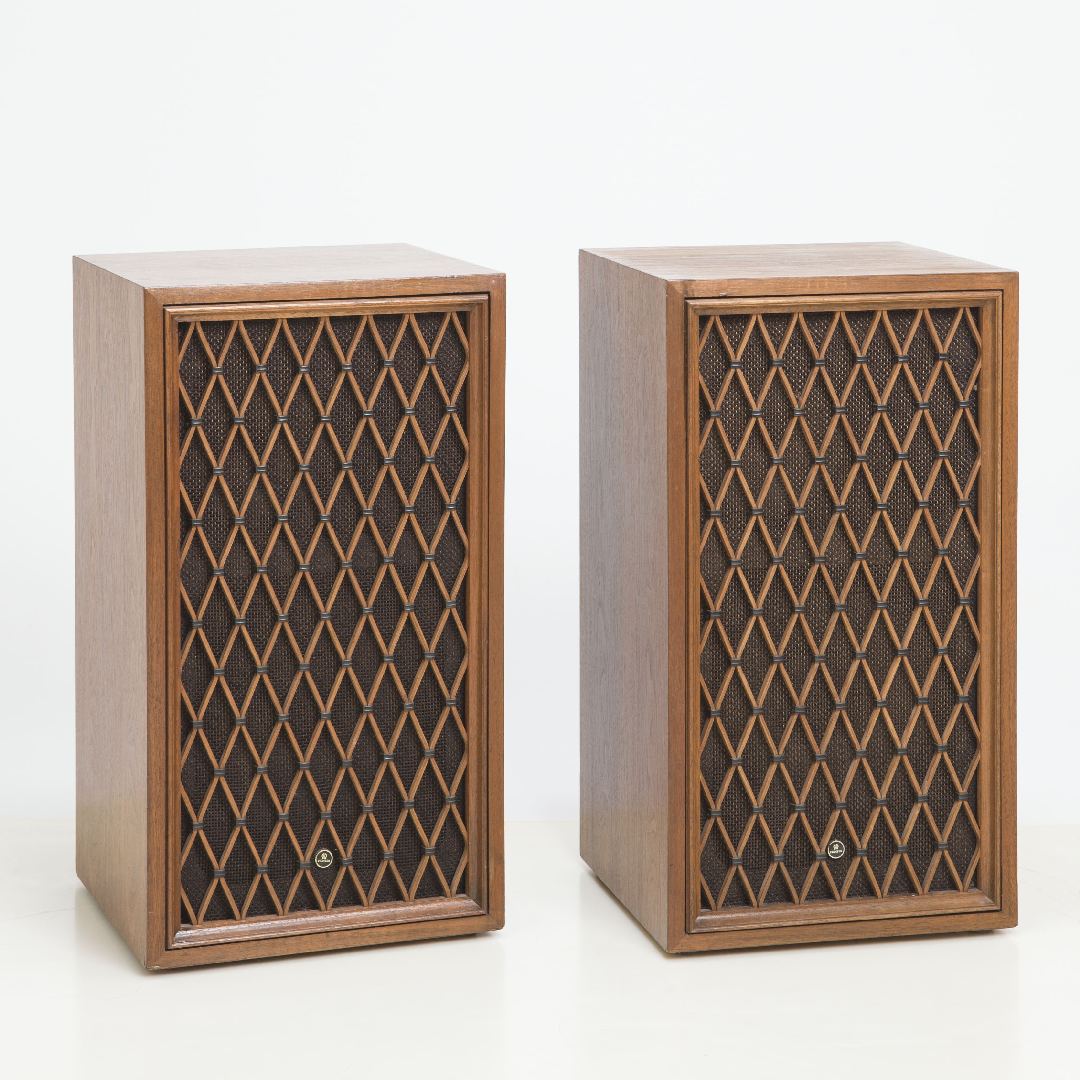

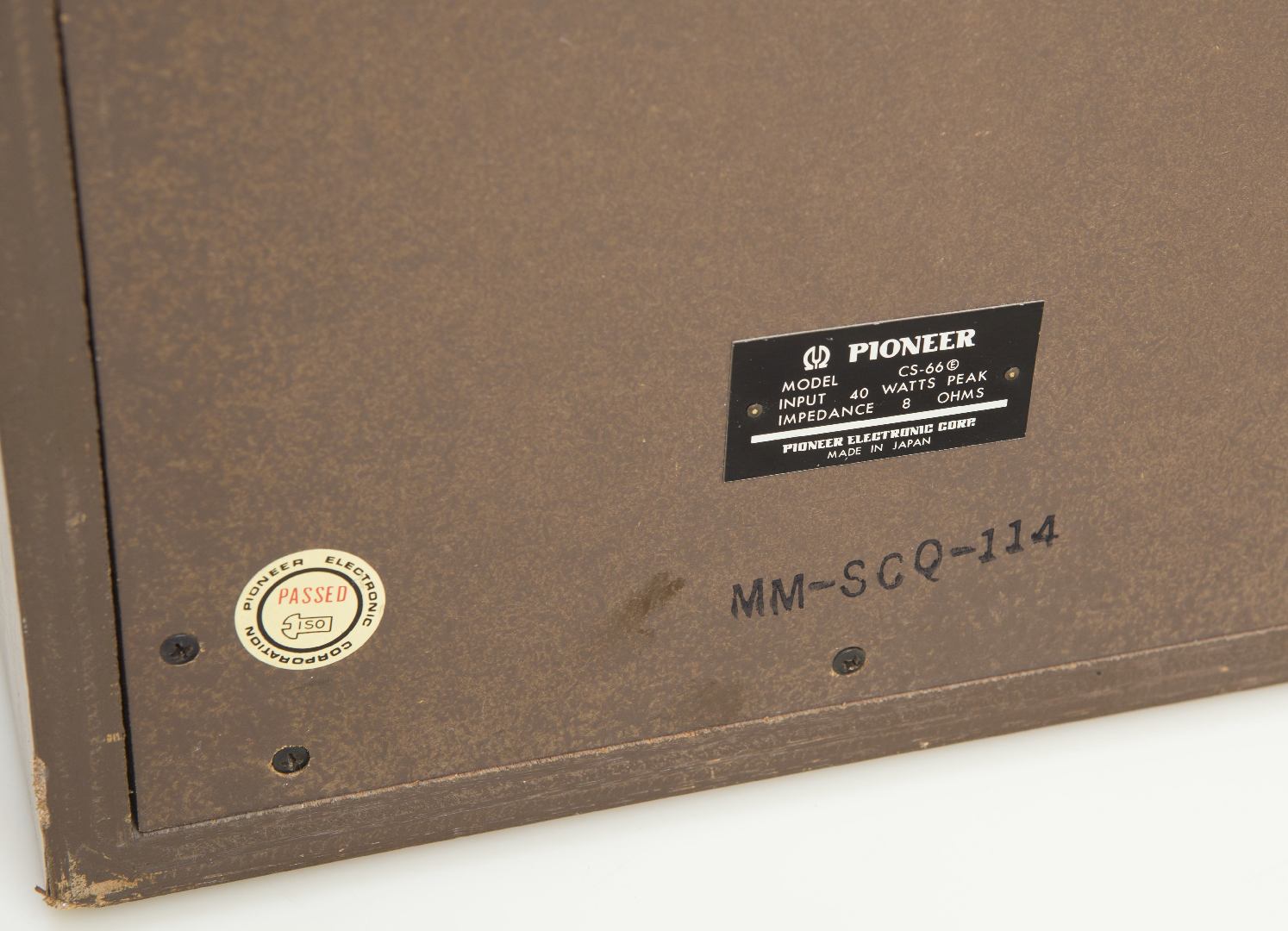

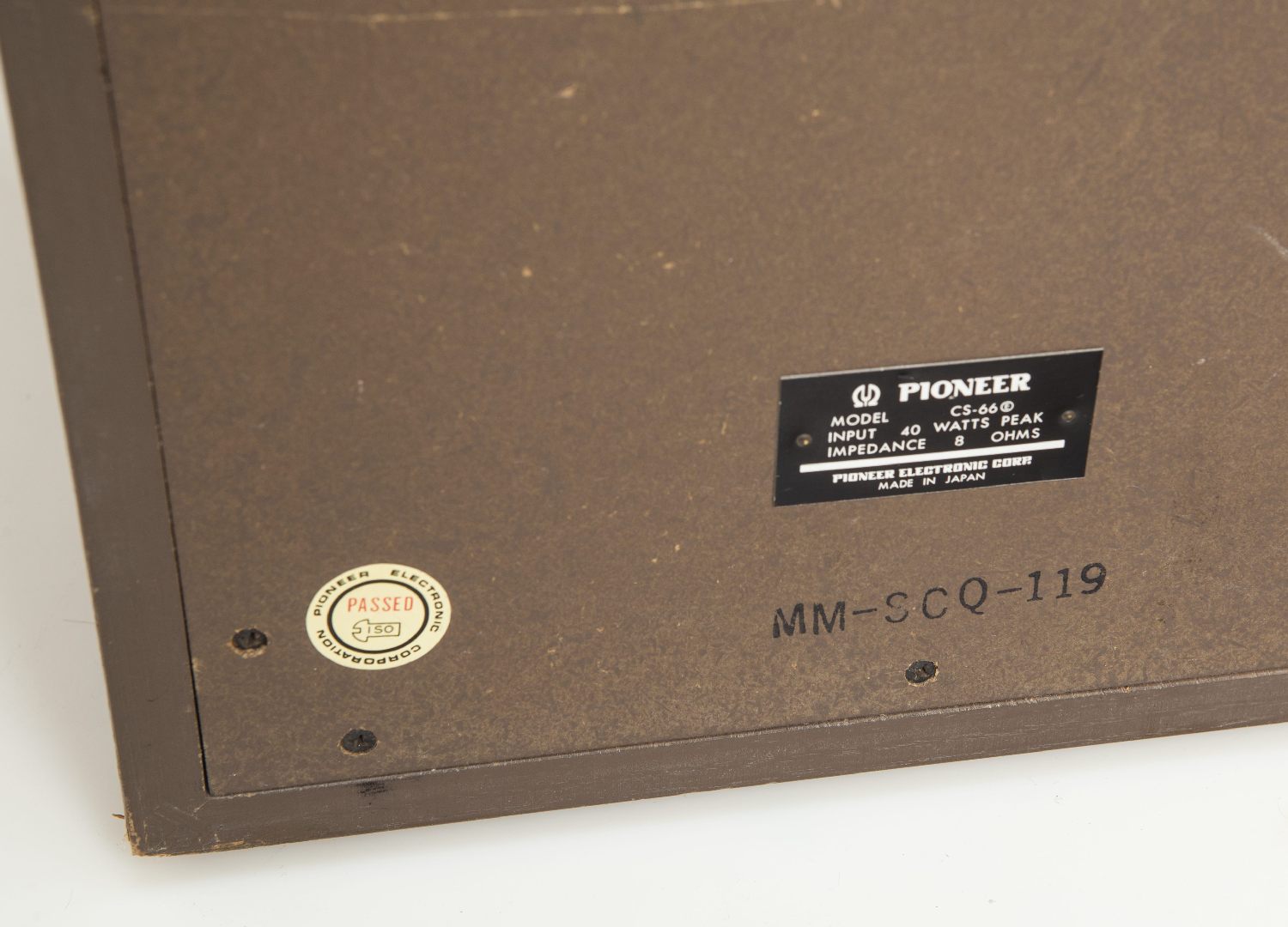

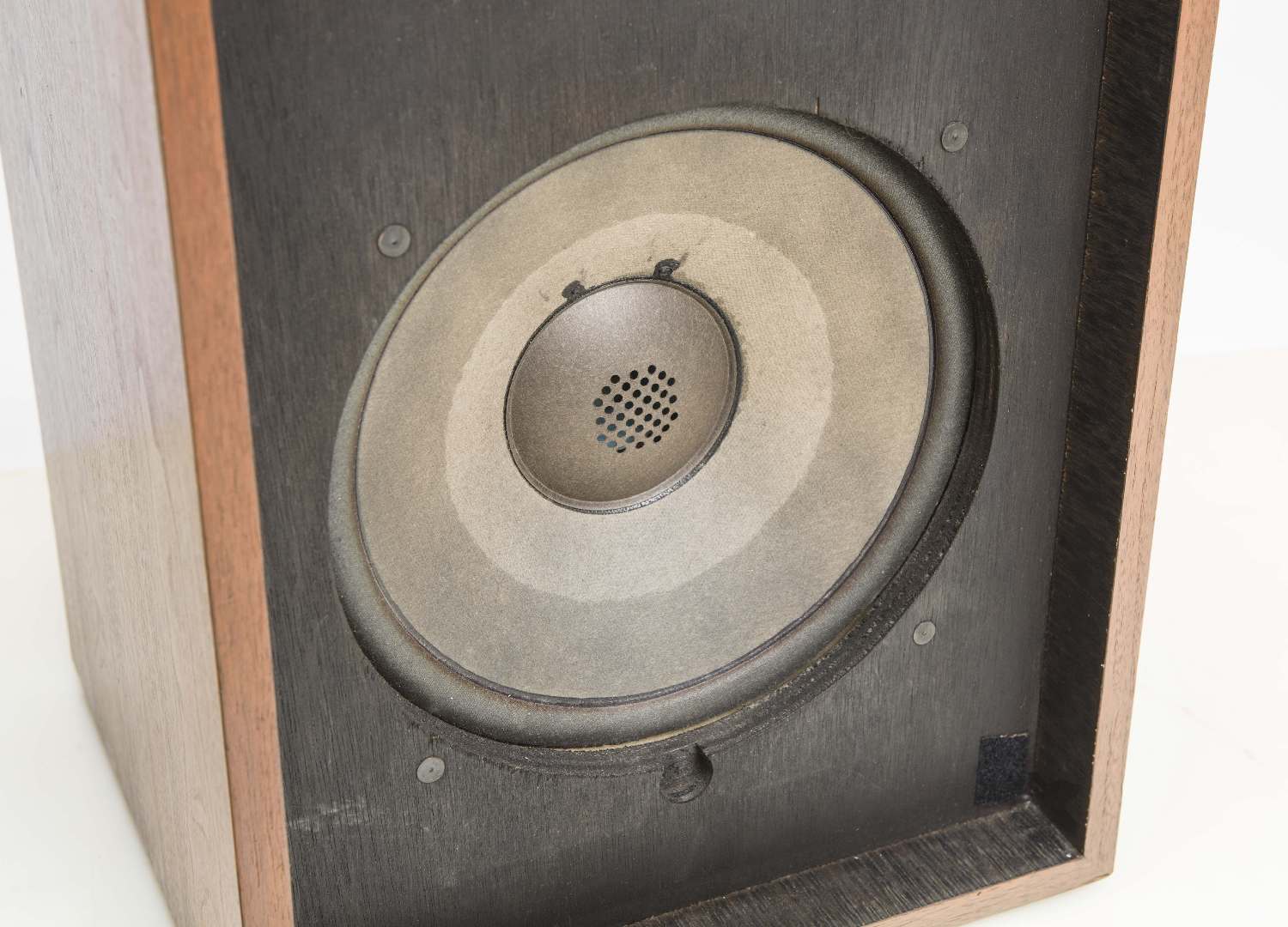

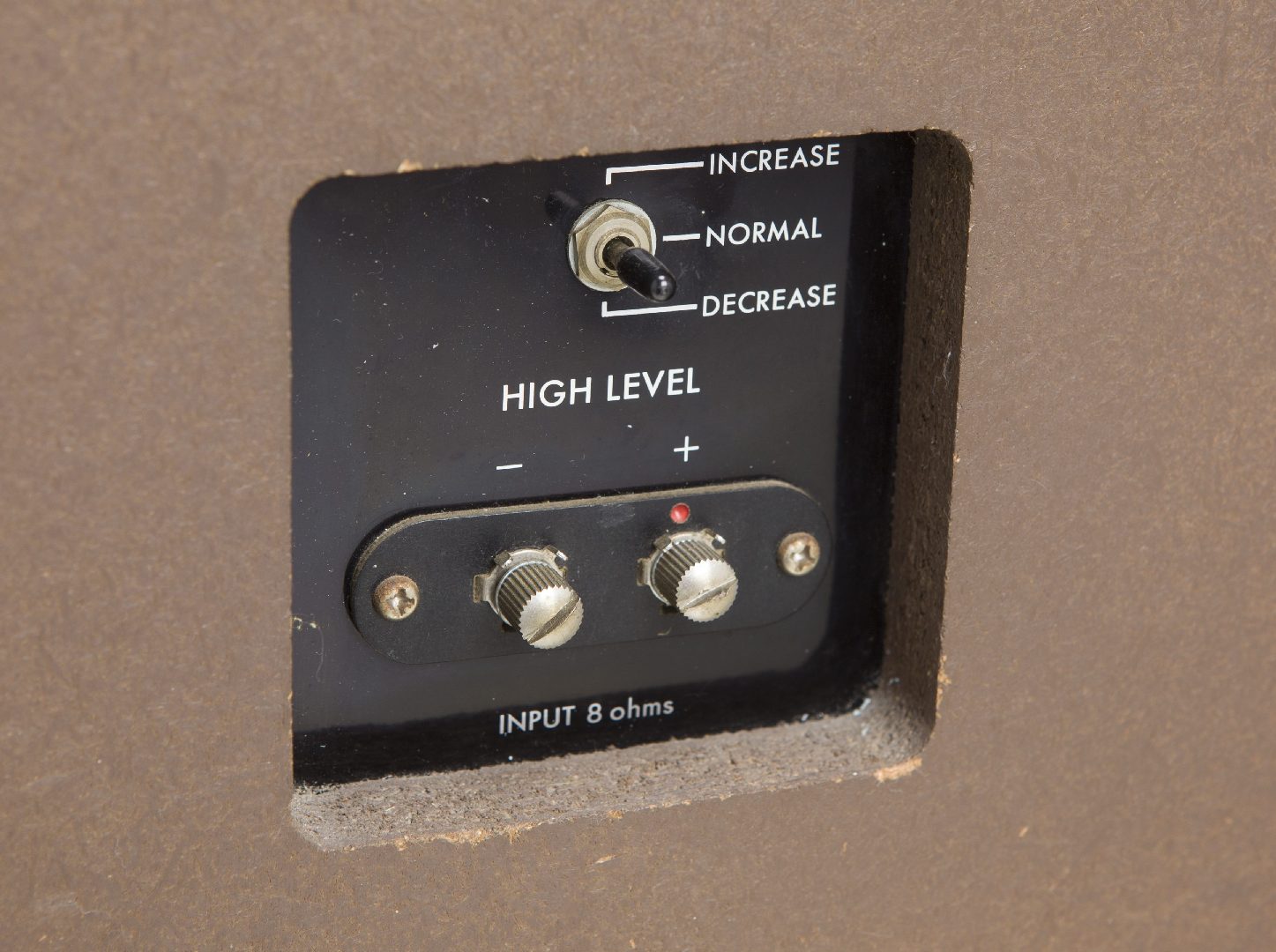

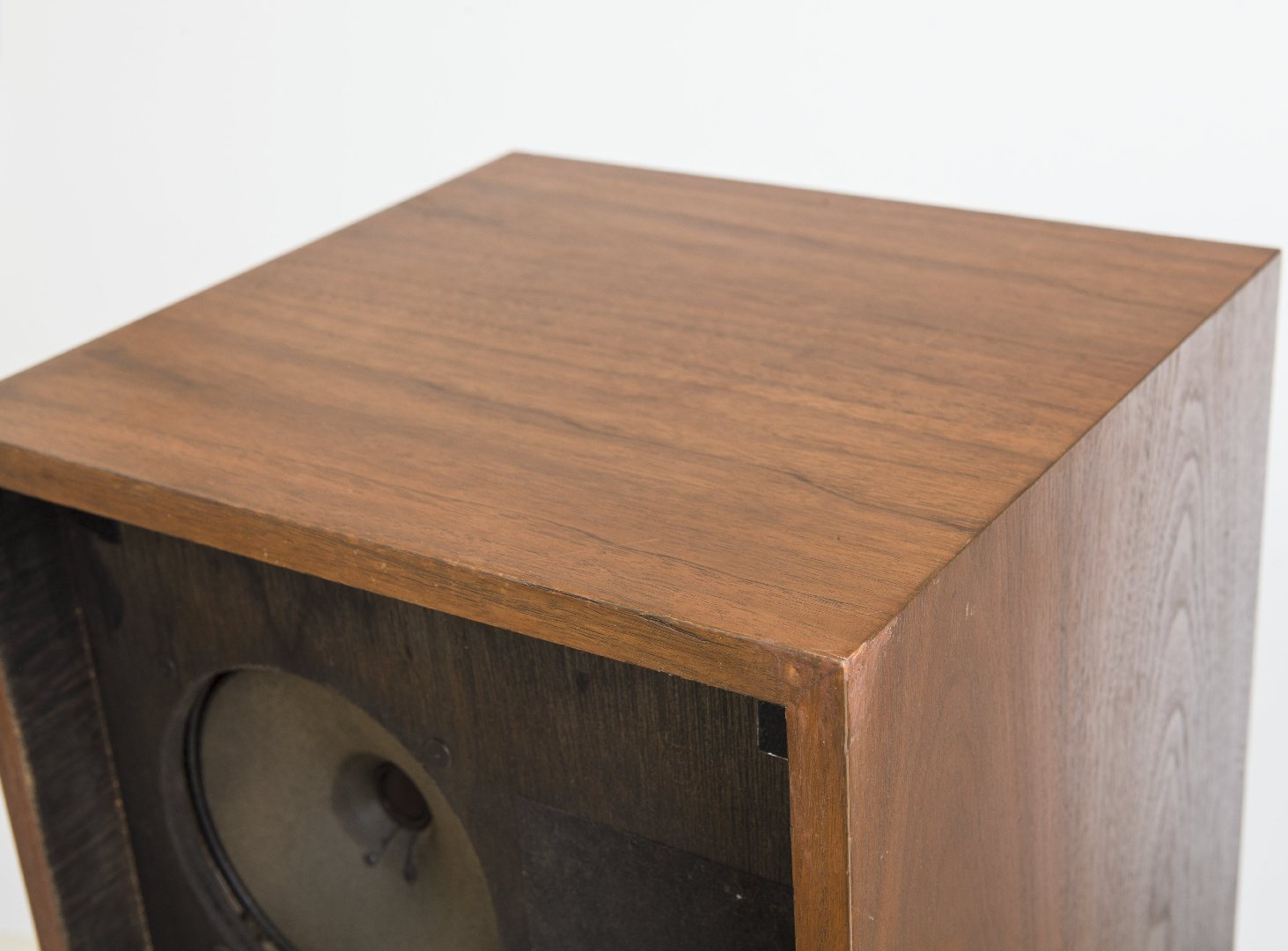

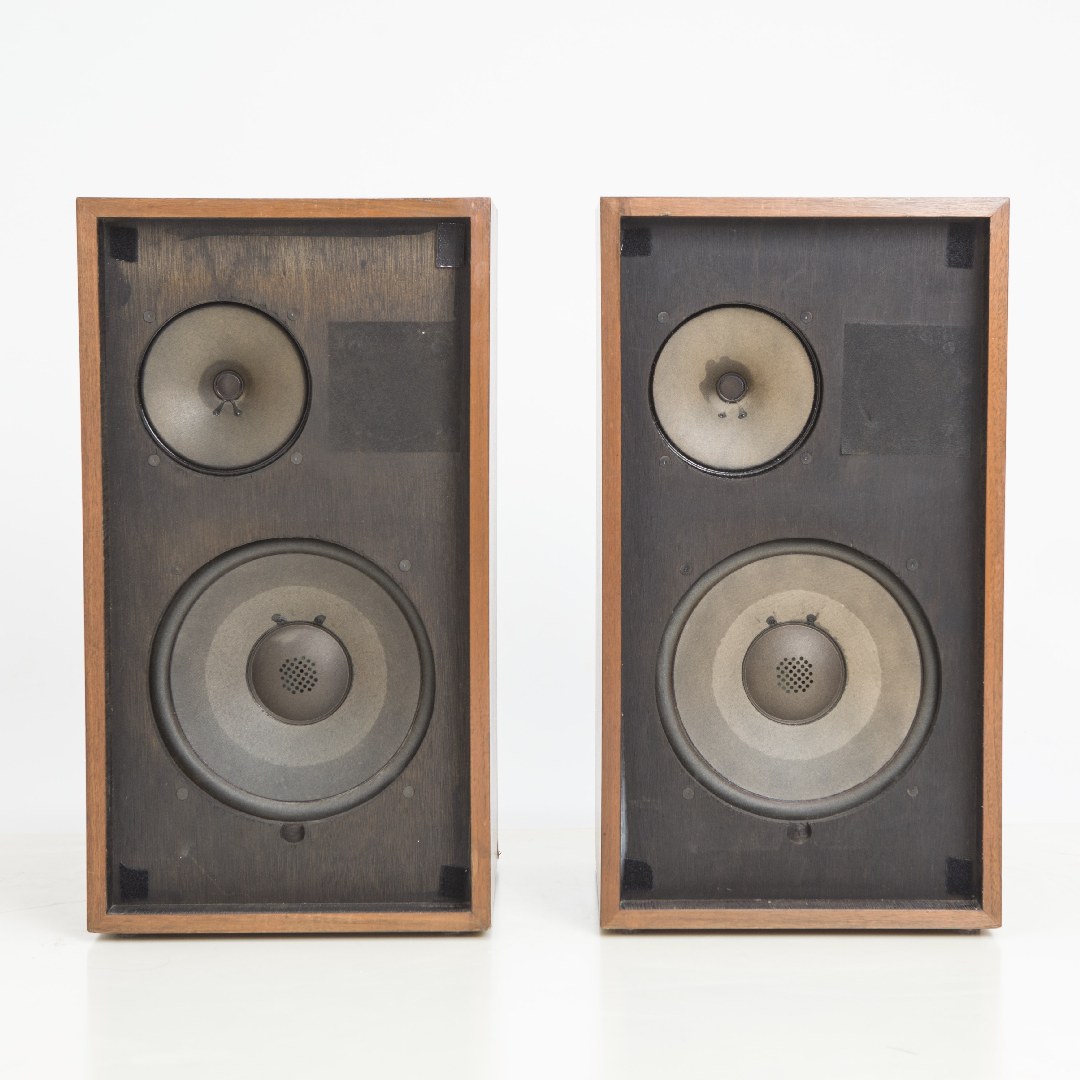

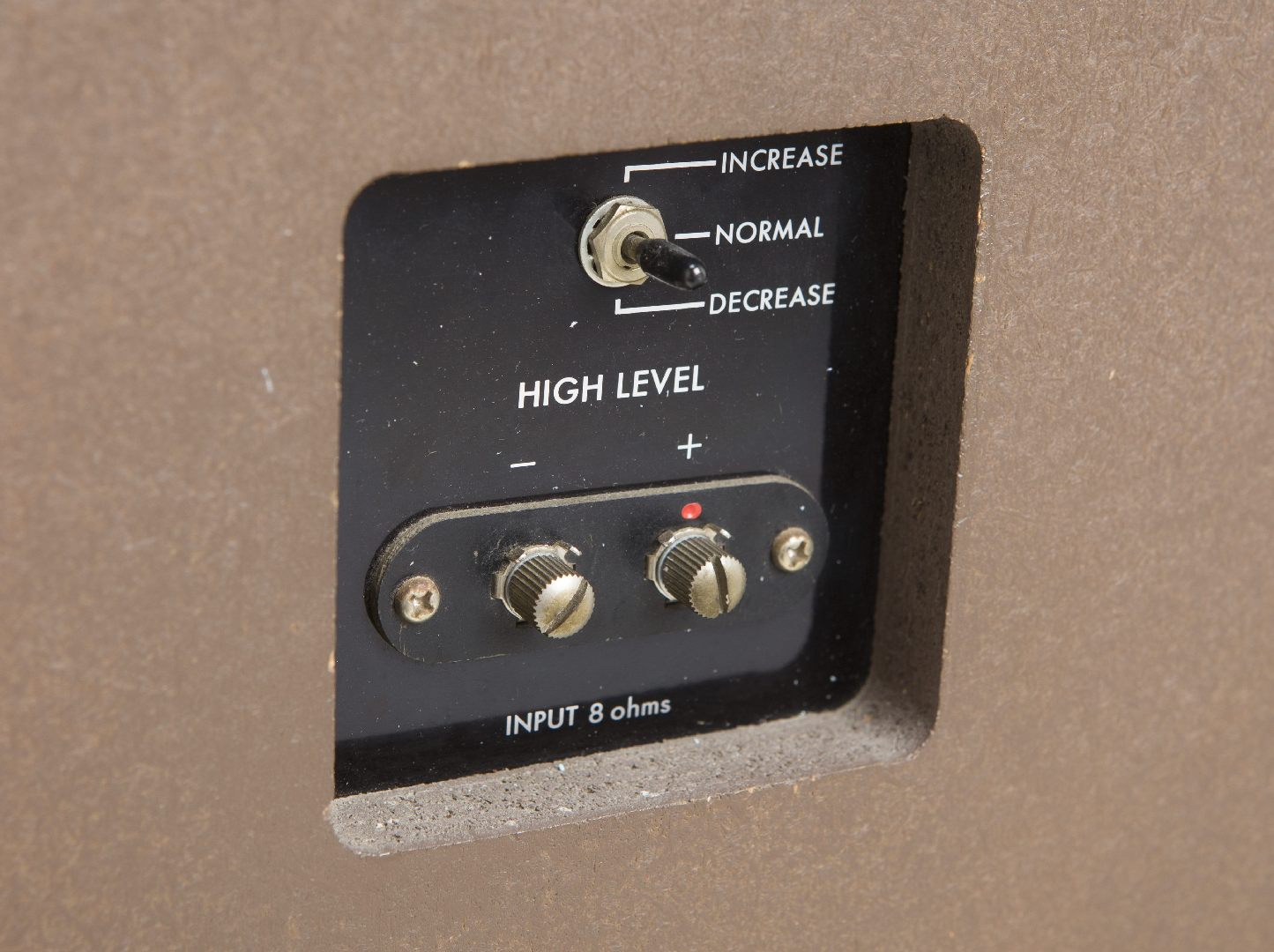

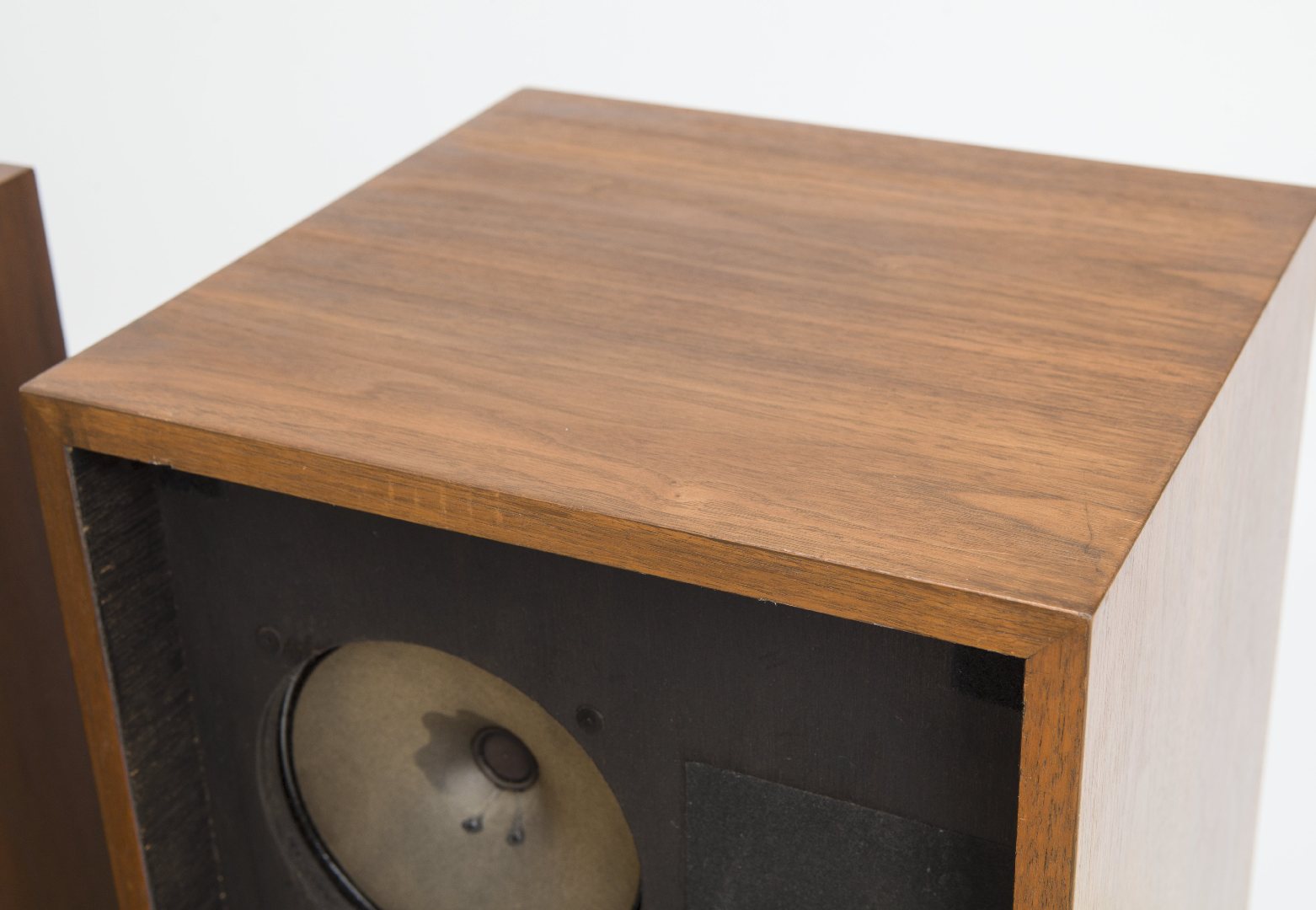

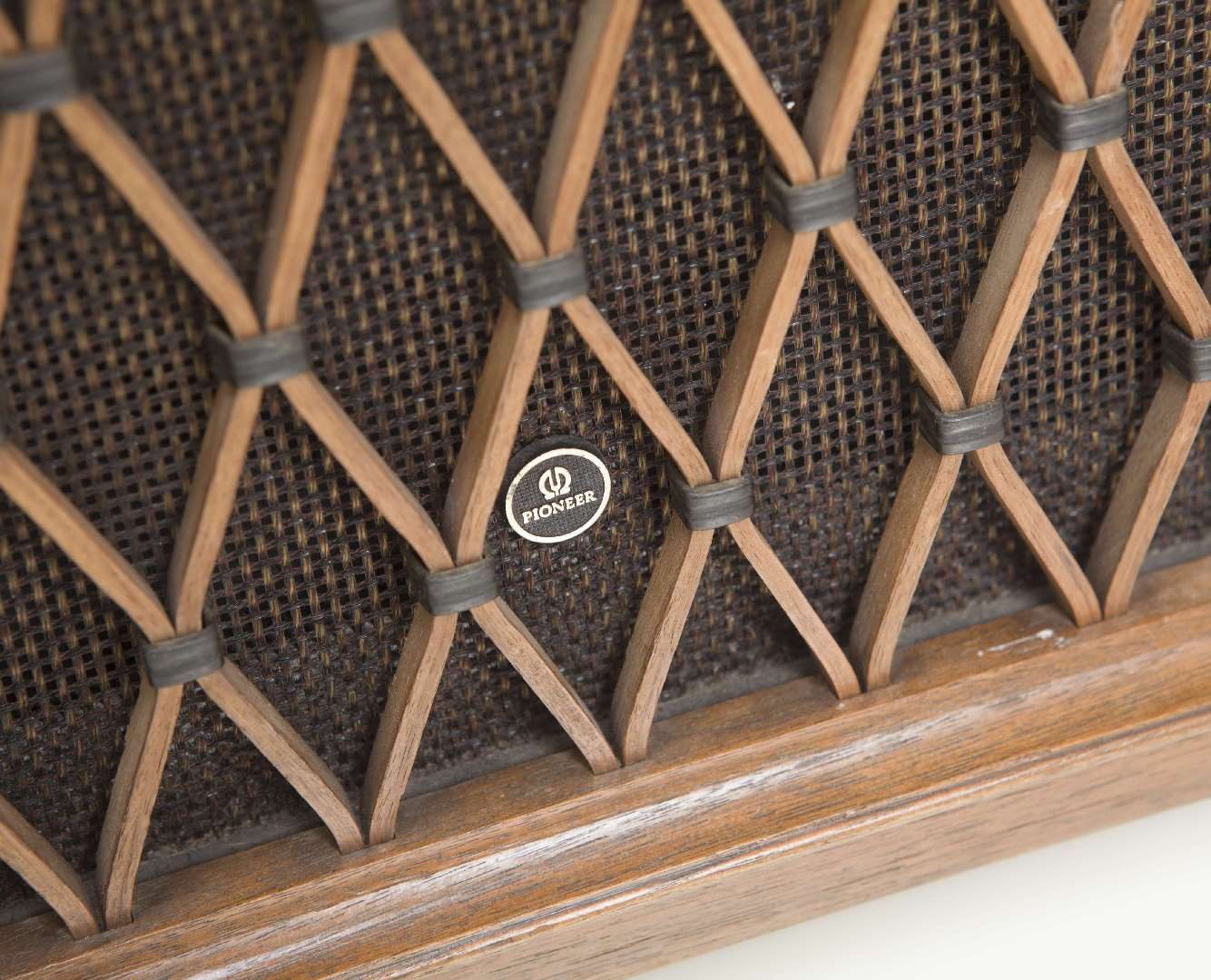

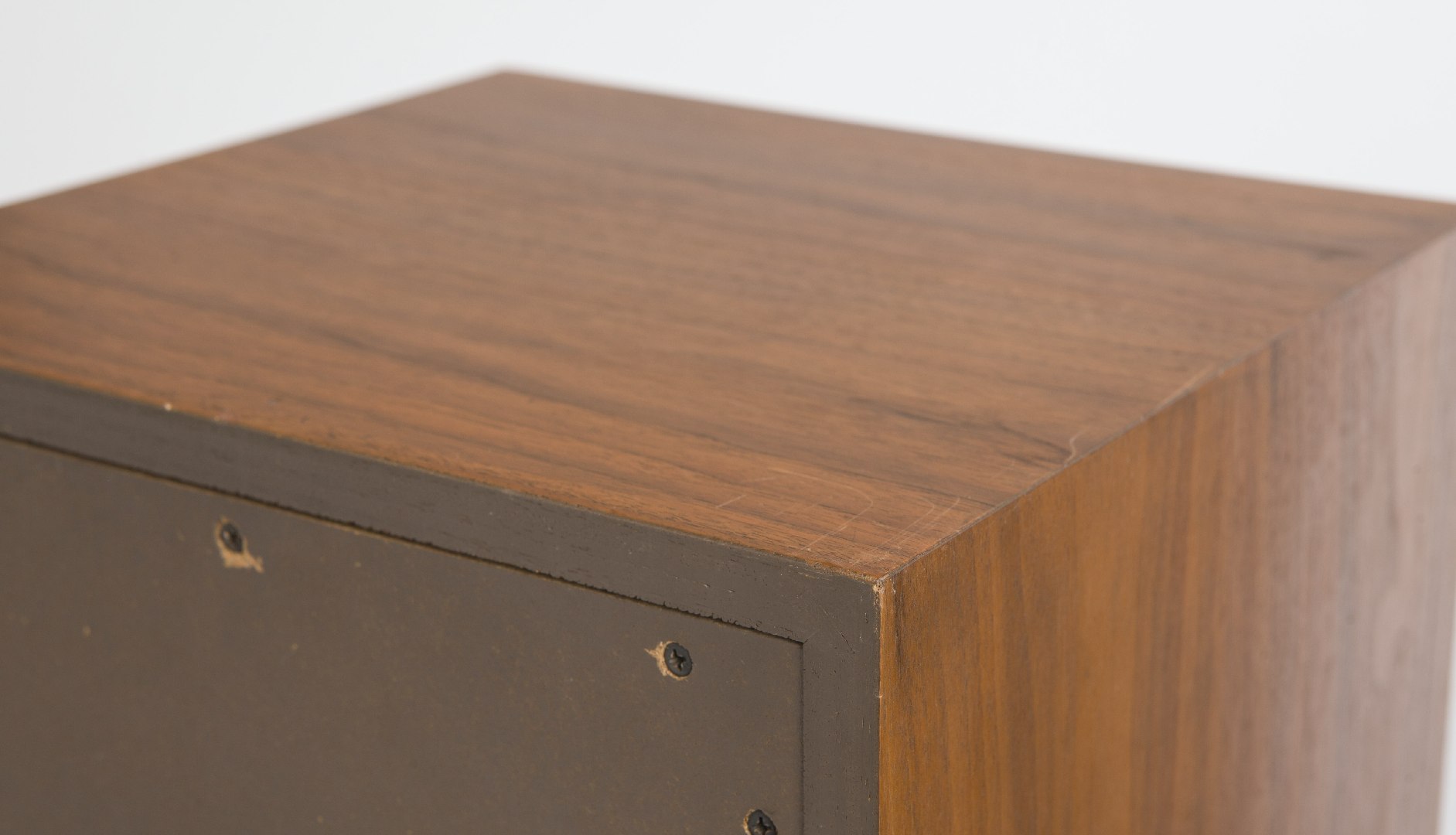

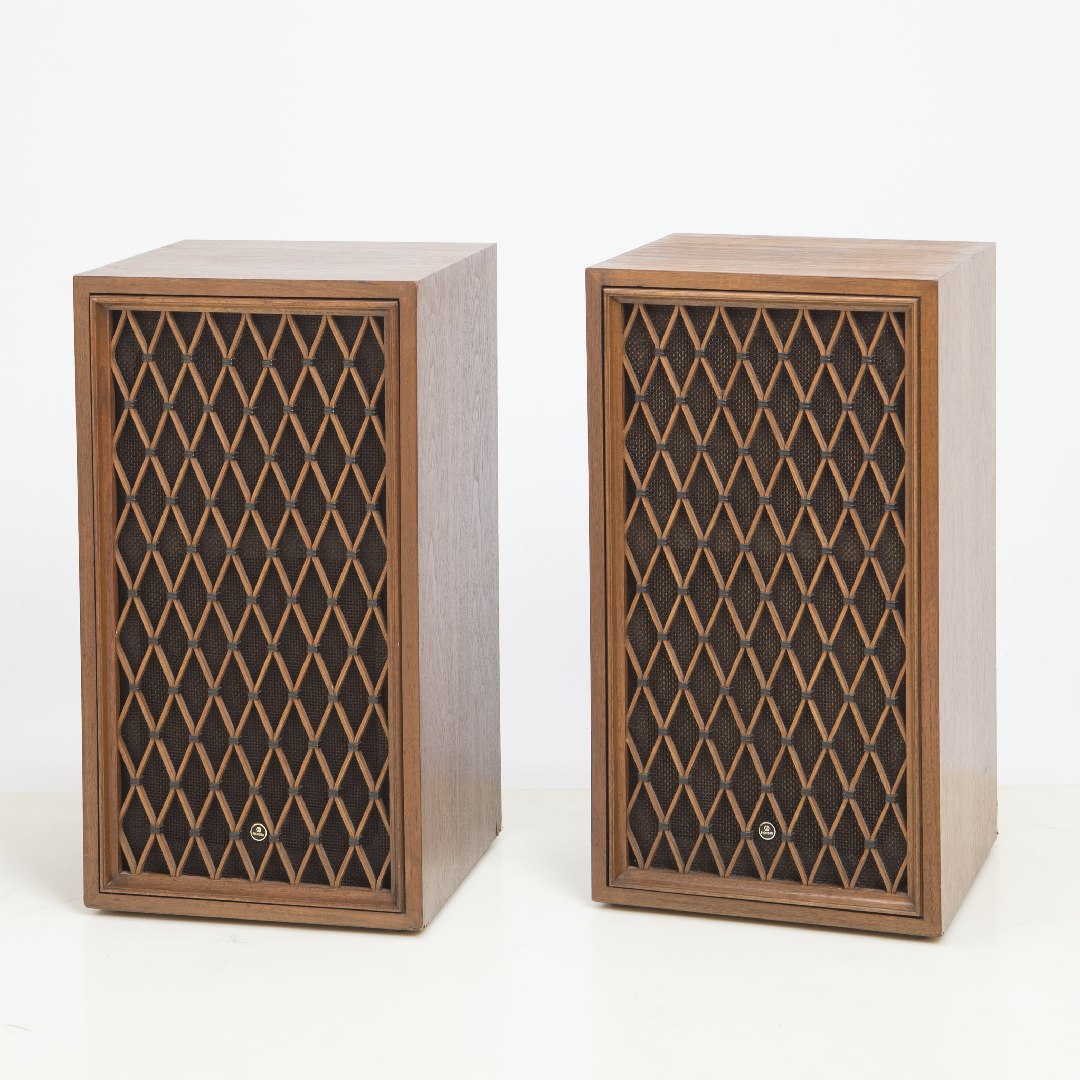

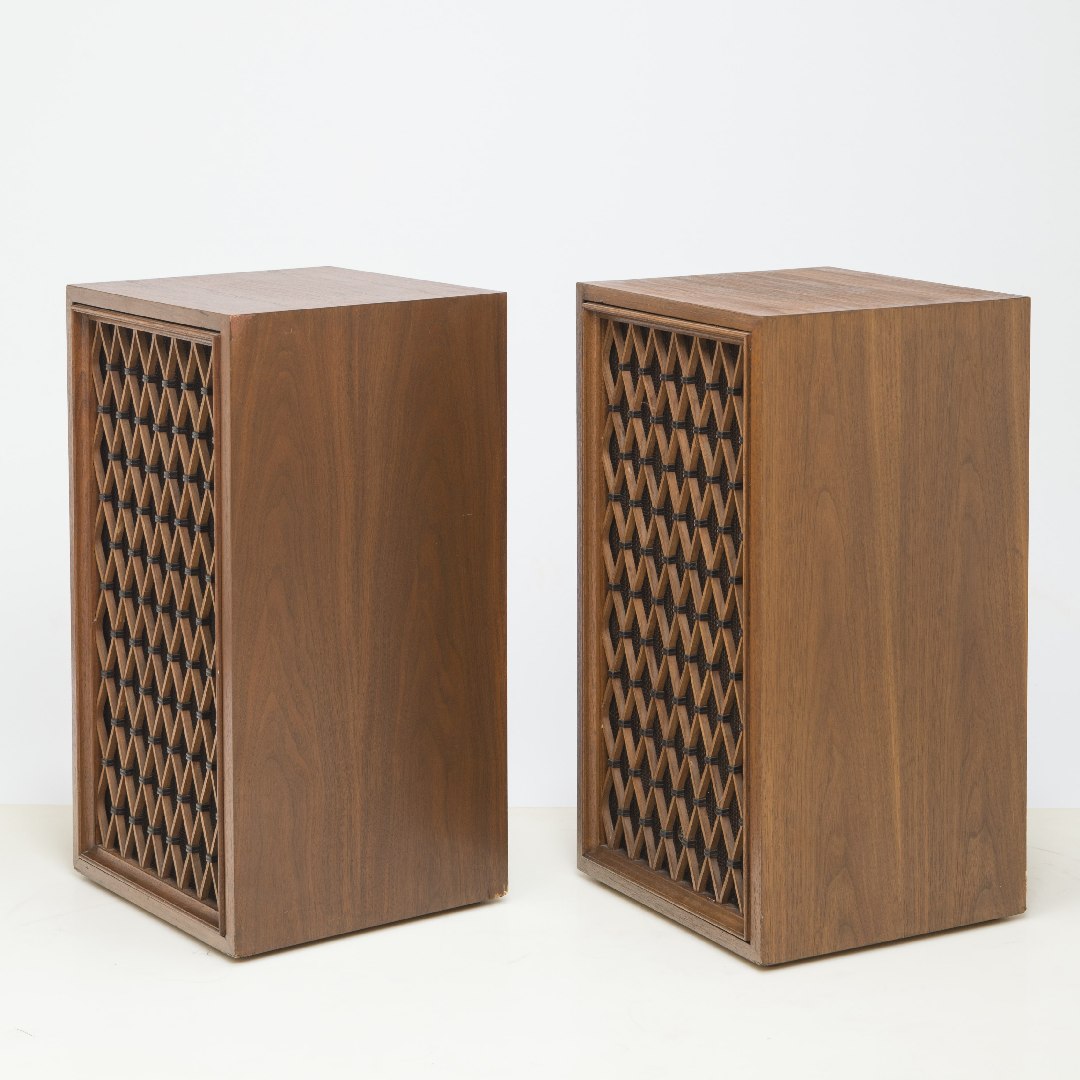

CS-66

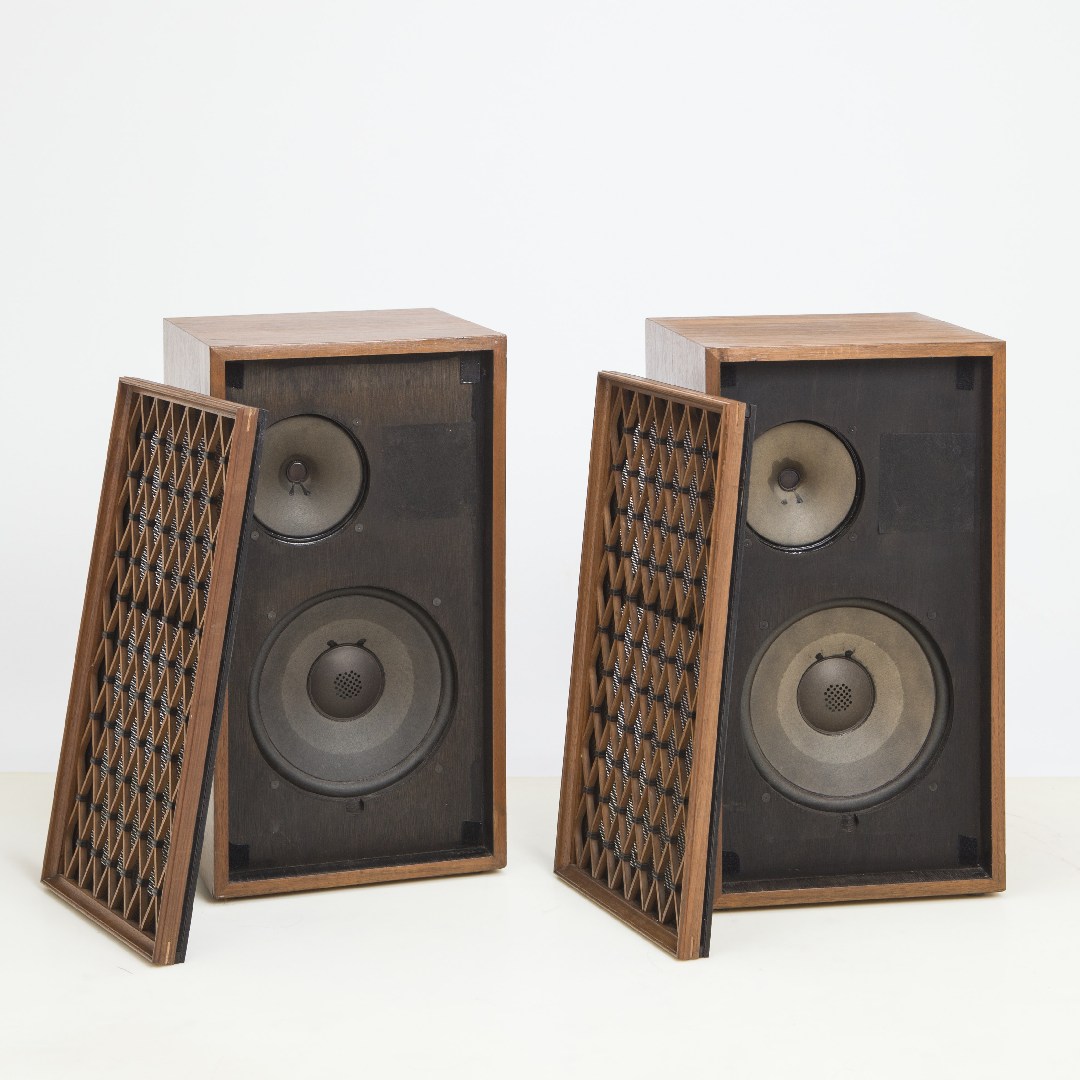

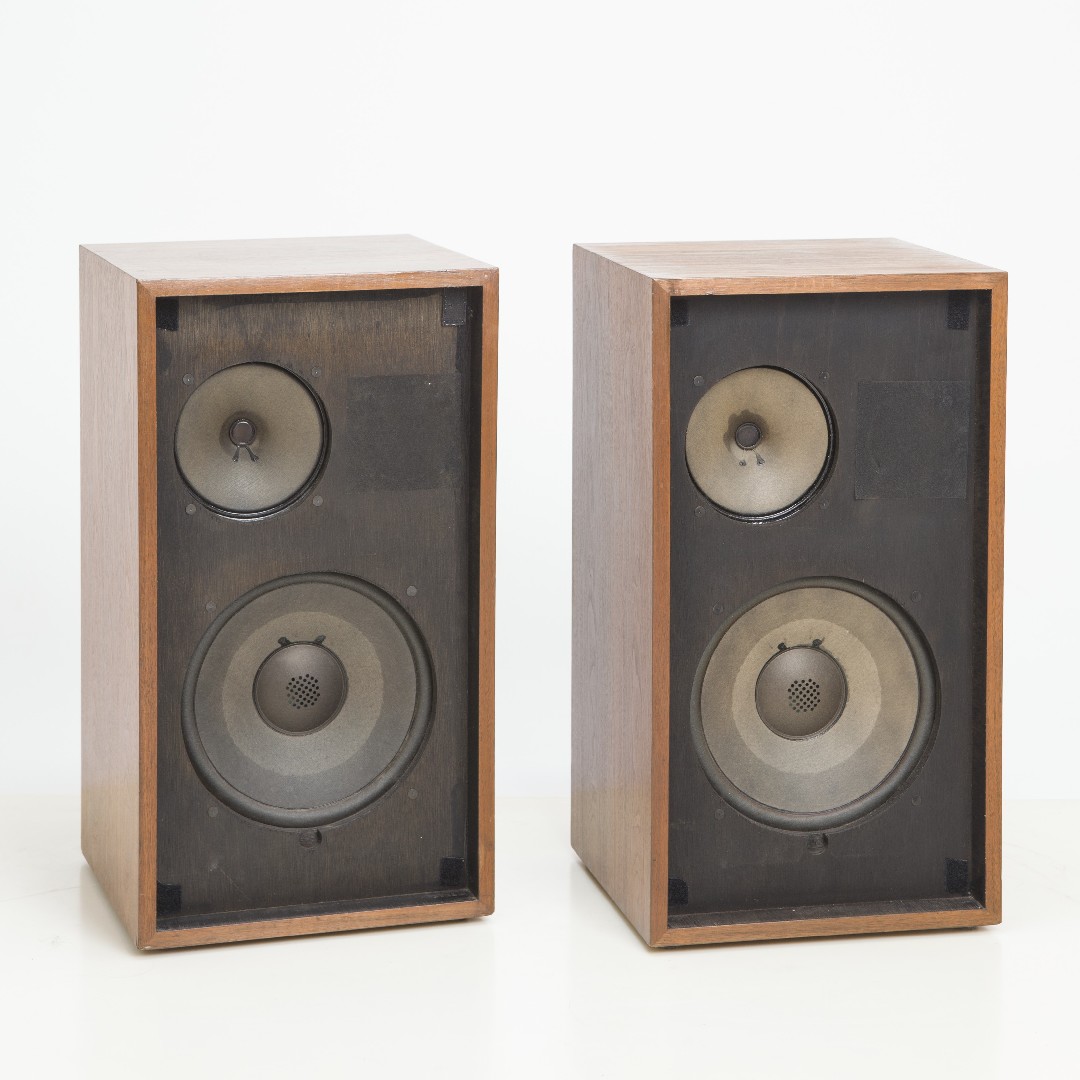

Type: 3 way, 2 driver loudspeaker system

Frequency Response: 35Hz to 20kHz

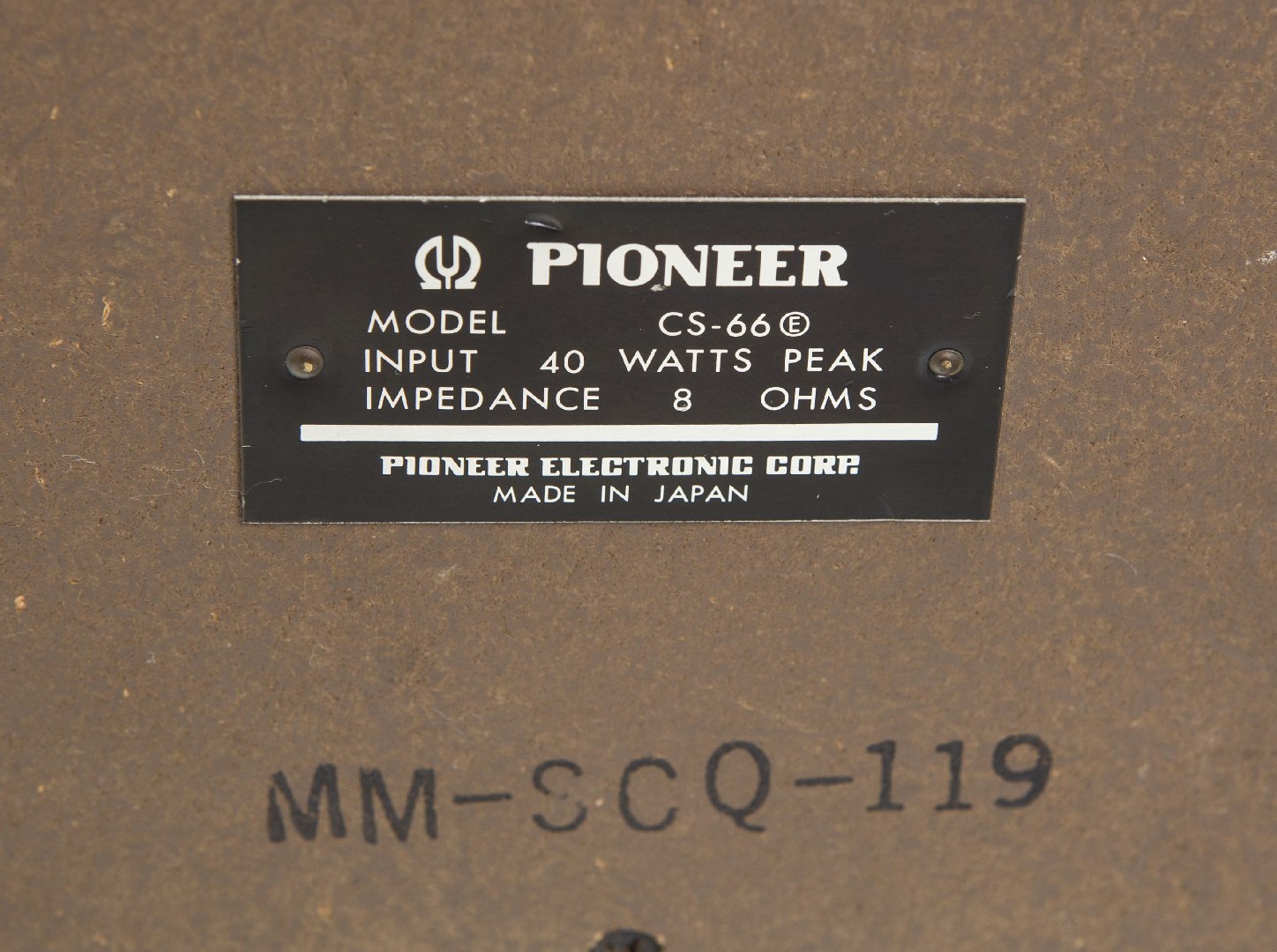

Power Handling: 40W

Impedance: 8Ω

Sensitivity: 92dB

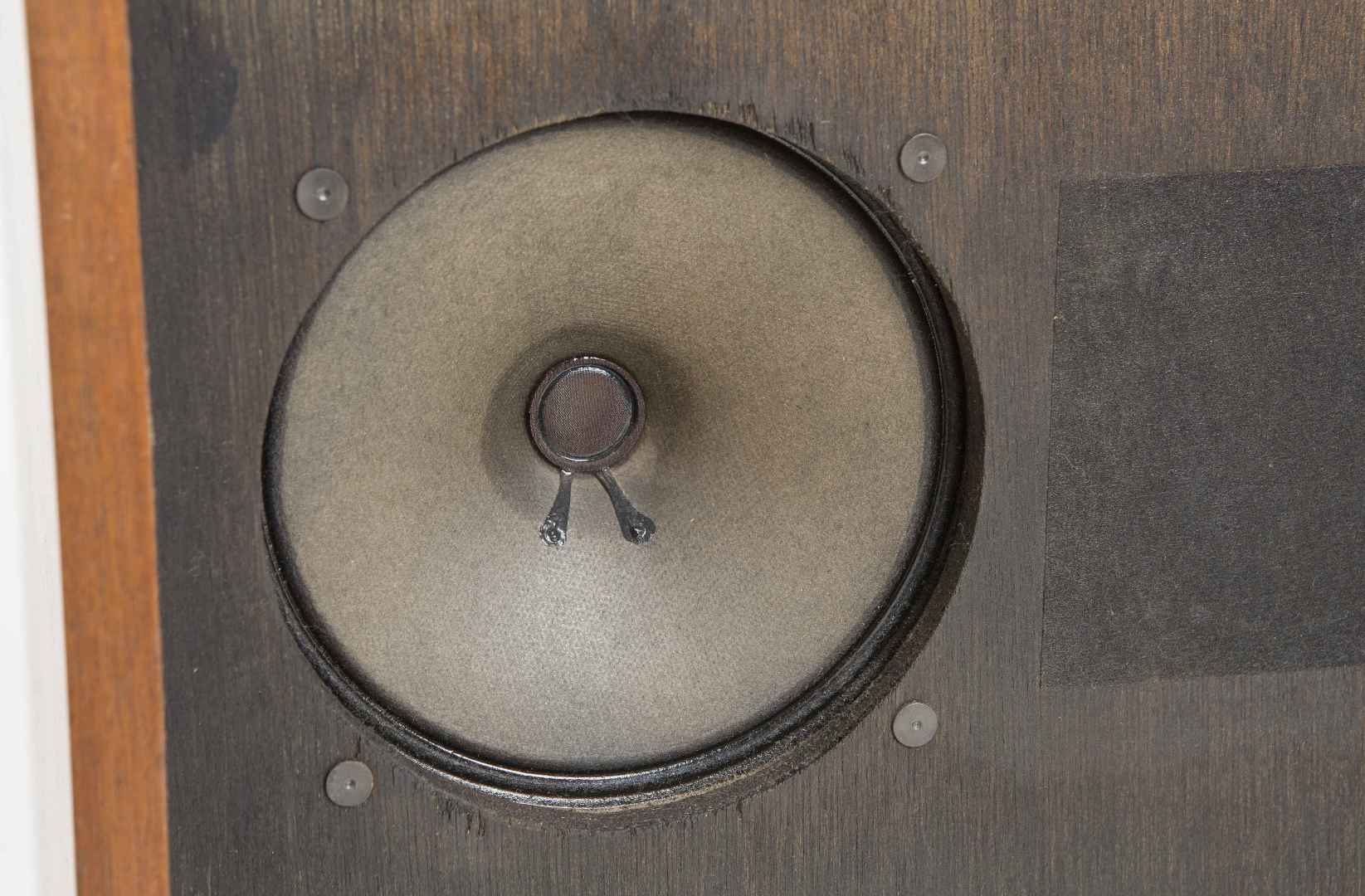

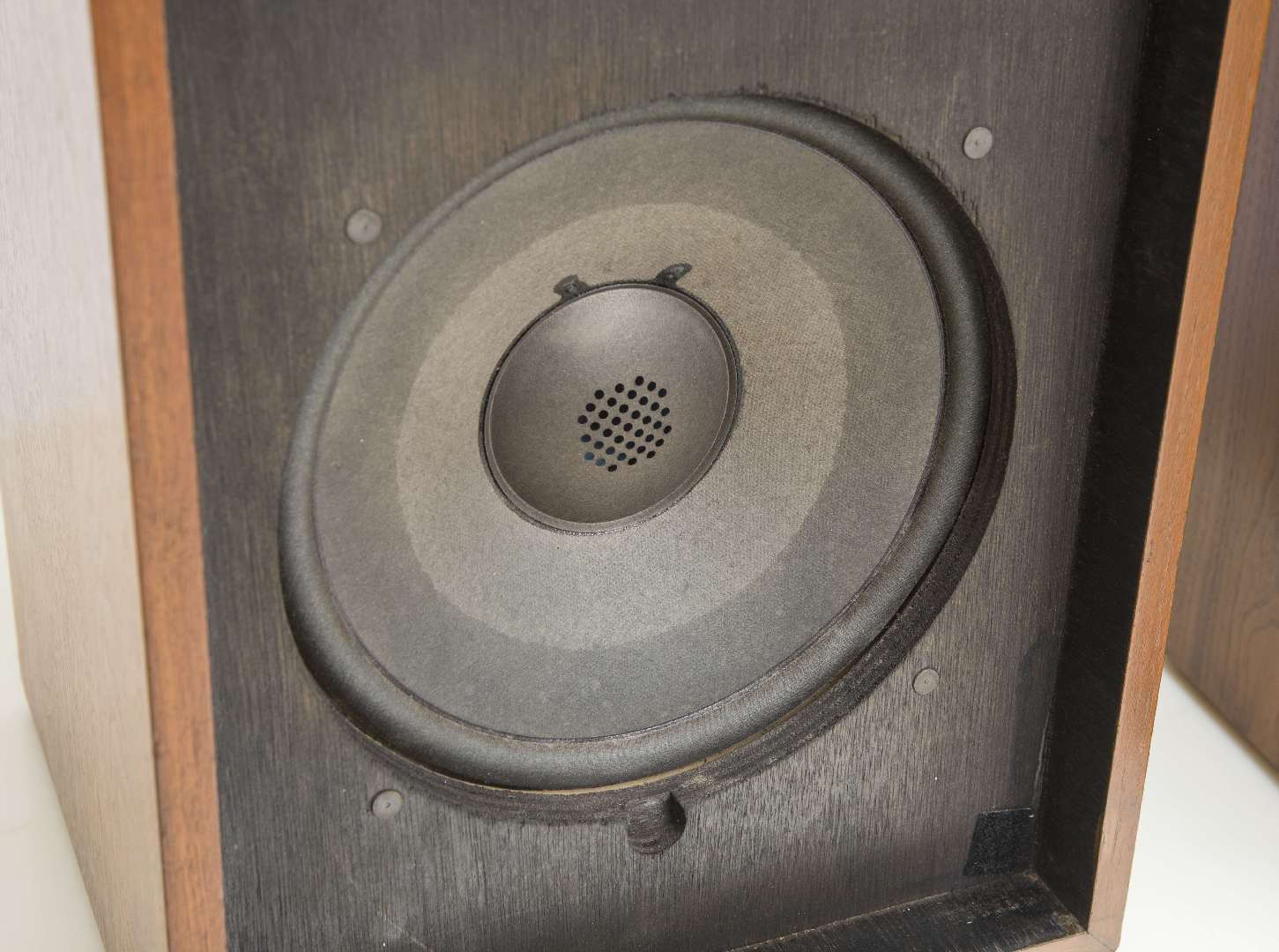

Bass: 1 x 250mm

Midrange: 1 x 160mm

Tweeter: 1 x chemical edge cone

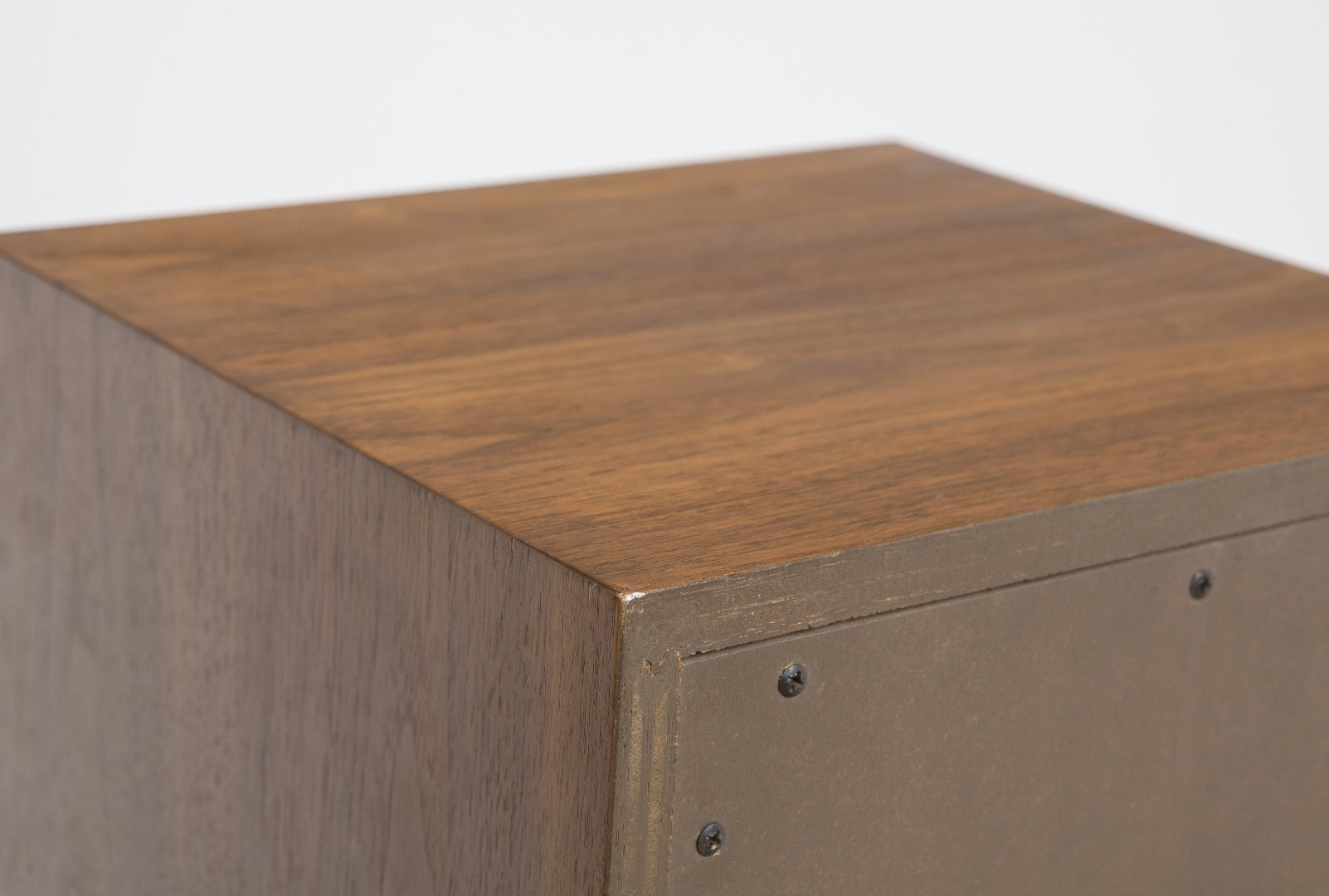

Enclosure: enclosed

Dimensions: 309 x 559 x 290mm

Weight: 11kg
