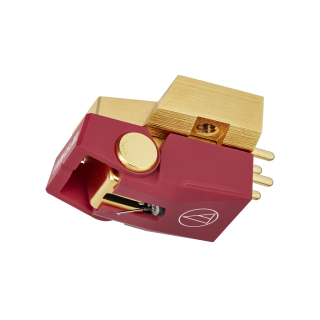

Audio-Technica AT-VM745xML – Cartridge with Nude Microlinear Stylus

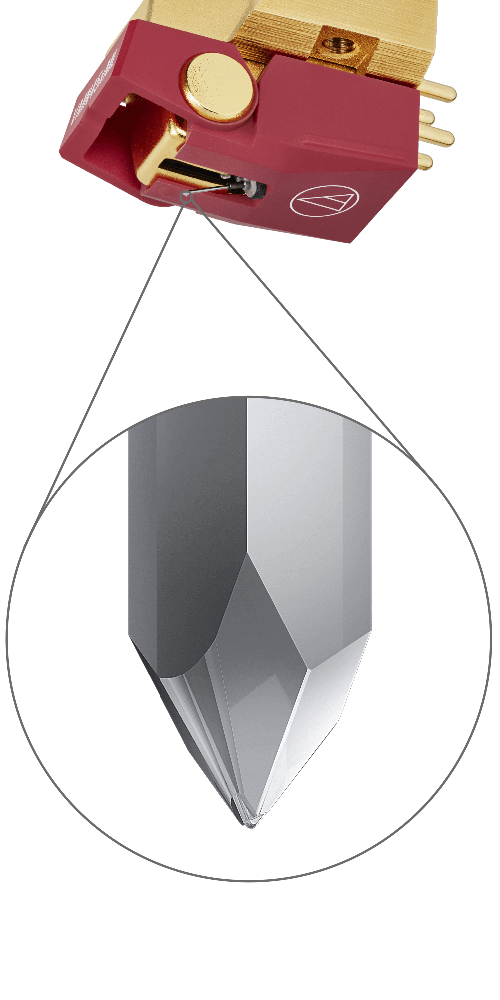

The Audio-Technica AT-VM745xML is a high-quality MM cartridge from the new AT-VMx series, designed for demanding vinyl playback. Thanks to its Nude Microlinear stylus, it provides highly accurate groove tracing, low distortion and excellent detail retrieval, even toward the inner grooves of the record.
The cartridge uses a solid boron cantilever, which is light, rigid and extremely precise. Compared with standard aluminium cantilevers, boron allows faster and more accurate transfer of stylus movement, resulting in a cleaner, more focused and more reference-oriented sound.
The sound character of the AT-VM745xML is balanced, detailed and highly precise. It is ideal for listeners looking for clean, neutral reproduction with excellent resolution, accurate imaging and very good instrument separation.
A major advantage of the Audio-Technica AT-VMx series is the option to replace the stylus within the same cartridge family. Different stylus types can be used on the same cartridge body, allowing the sound character to be fine-tuned according to personal preferences and system setup.
Technical Specifications
Type: VM
Frequency response: 20–27,000 Hz
Output voltage: 3.7 mV at 1 kHz, 5 cm/sec
Channel separation: 26 dB at 1 kHz
Output balance: 1.0 dB at 1 kHz
Recommended tracking force: 1.8–2.2 g
Standard tracking force: 2.0 g
Vertical tracking angle: 20°

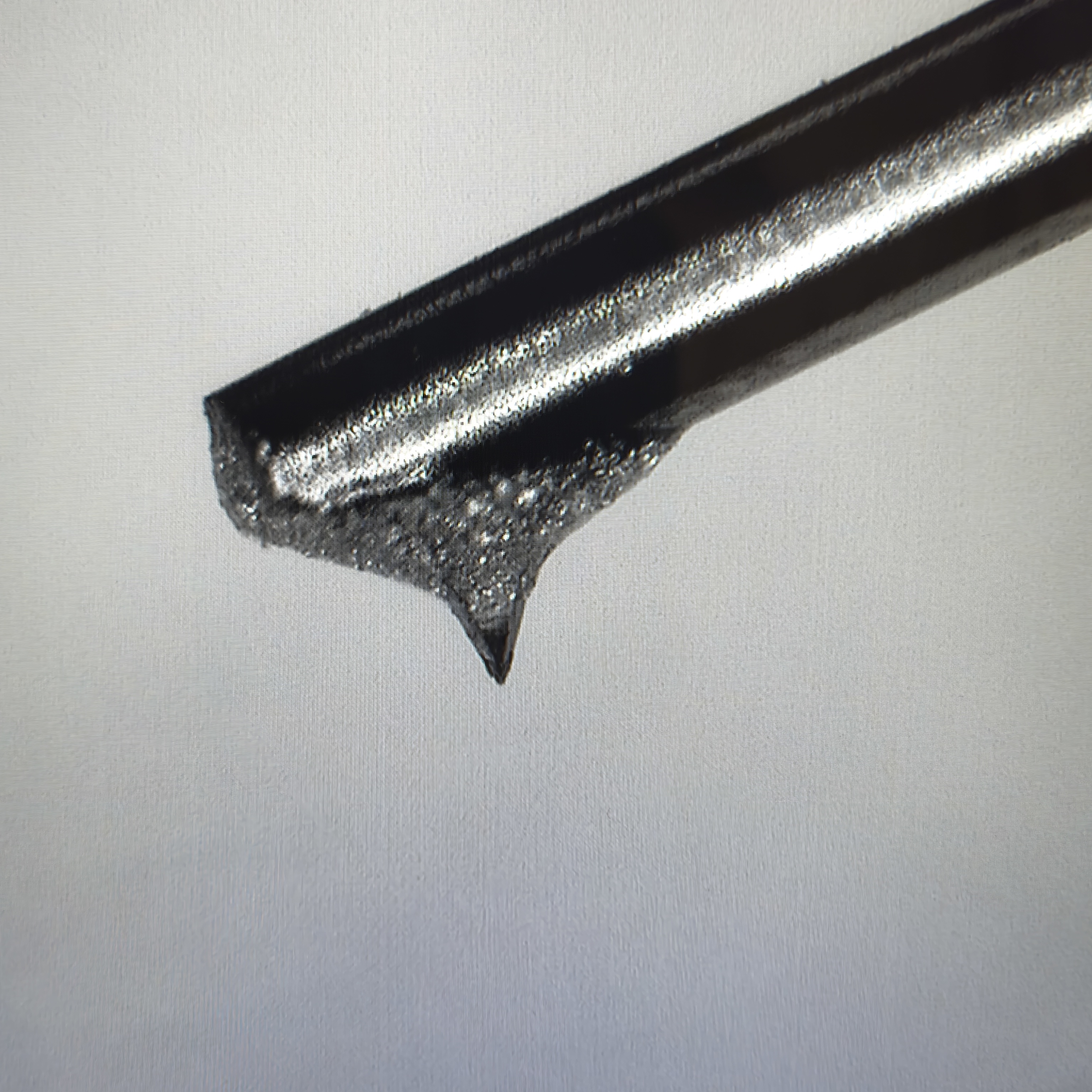

Stylus construction: Nude Microlinear
Stylus curvature radius: 2.2 × 0.12 mil
Cantilever: 0.28 mm solid boron
Recommended load impedance: 47 kΩ
Recommended load capacitance: 150–250 pF
Coil impedance: 3.2 kΩ at 1 kHz
DC resistance: 750 Ω
Coil inductance: 480 mH at 1 kHz
Static compliance: 20 × 10⁻⁶ cm/dyne
Dynamic compliance: 7 × 10⁻⁶ cm/dyne at 100 Hz
Threaded holes: M2.6 × 2
Dimensions: 29.0 × 18.3 × 17.5 mm
Weight: 8.8 g

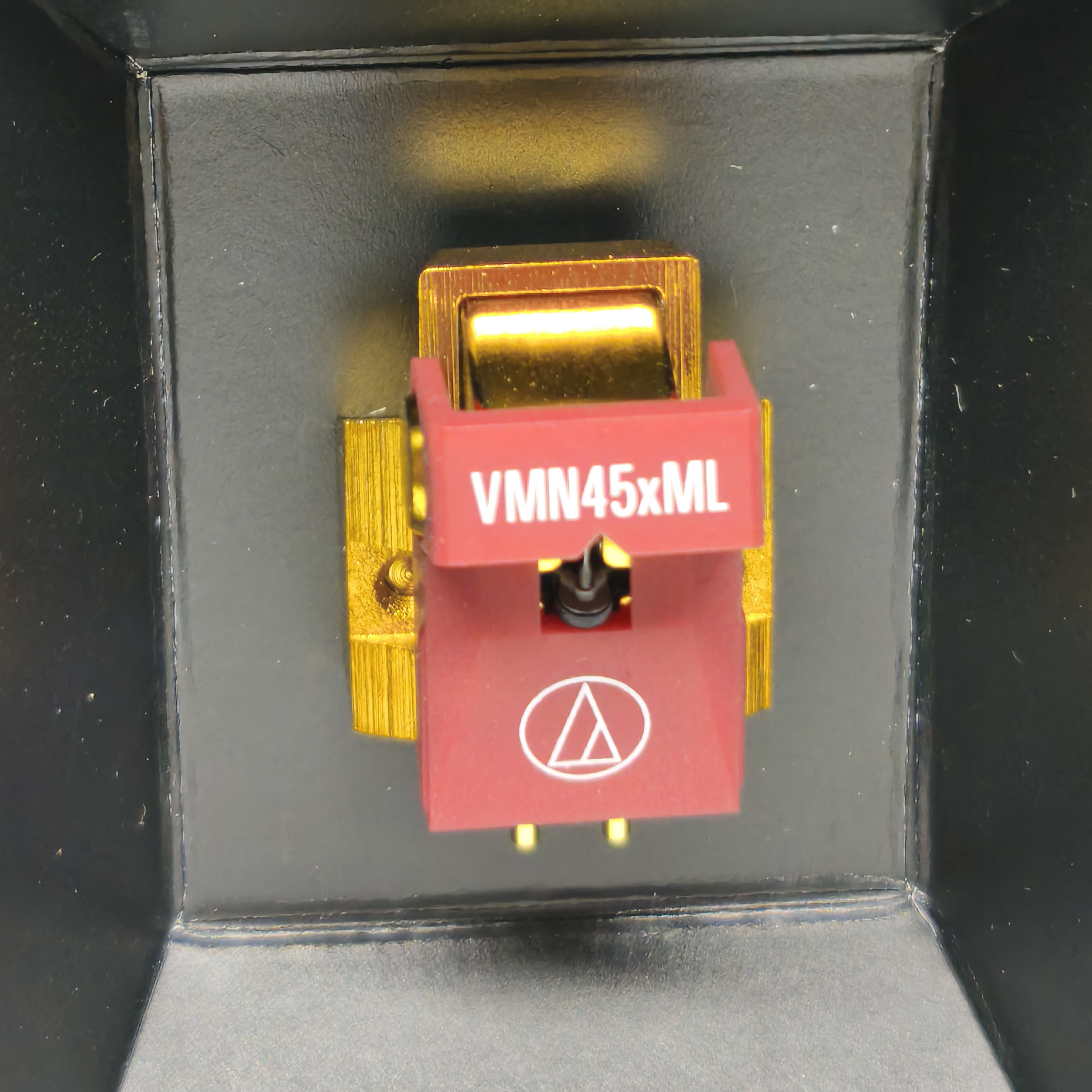

Replacement stylus: AT-VMN45xML, sold separately
Included Accessories
The package includes M2.6 cartridge installation screws in 10 mm, 8 mm and 5 mm lengths, washers, a non-magnetic screwdriver and a cleaning brush.
The AT-VMN45xML replacement stylus is compatible with products from the AT-VMx series. This series also offers other replacement styli with different tip structures and stylus profiles, allowing the sound character to be adjusted to suit a specific system and listening preference.
