Cambridge Audio Alva Duo


Cambridge Audio - Alva Duo

Availability

On order to 7 days

7 790 Czk
pc

Info

Record grading:
NEW without any damage
more info here

Description

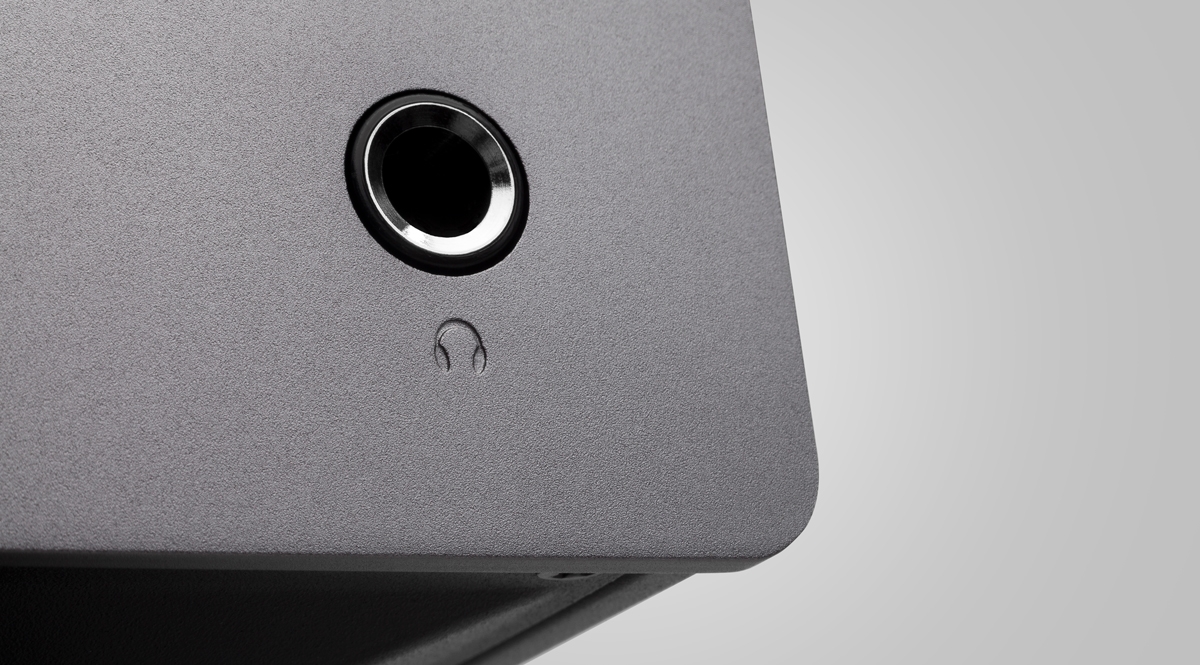

High quality mid-range preamplifier with integrated headphone amplifier for Jack 6.35mm connector. Suitable for MM and MC type transmitters. Adjustable channel balance, subsonic filter and switching power supply. To save power, the device switches itself off for 20 minutes of inactivity


MAX POWER CONSUMPTION

10W

CARTRIDGE SUPPORT

Moving Magnet | Moving Coil

Gain @ 1kHz

MM: 39dB | MC: 60dB

NOMINAL OUTPUT

300mV

SENSITIVITY FOR NOMINAL OUTPUT

MM: 3.35mV | MC: 305uV

EQUIVALENT INPUT NOISE (A-WEIGHTED)

MM: ~0.09uV | MC: ~0.08uV

RIAA CURVE ACCURACY

+/- 0.3dB 30Hz-50Hz

SIGNAL TO NOISE RATIO GROUNDED INPUTS REF. 1V output (20Hz-20kHz BW)

MM: >90dB | MC: >70dB

THD+N 1kHz (20-20kHz BW)

MM: <0.0025% | MC: <0.20%

INPUT IMPEDANCE

MM: 47k Ohms | MC: 100 Ohms

INPUT CAPACITANCE

100pF

OVERLOAD MARGIN

>30dB

CROSSTALK @ 10kHz

MM: >85dB | MC: 75dB

DIMENSIONS (H x W x D)

48 x 215 x 159 mm (1.9 x 8.5 x 6.2")

WEIGHT

0.95kg (2.1lbs)
