Yamaha - Dual CR-800, NS690,Dual 701


Yamaha - Dual - CR-800, NS690,Dual 701
Sorry , product no longer available

Info

Release:1974
Record grading:
VG+ used - slighty wear
more info here

Description

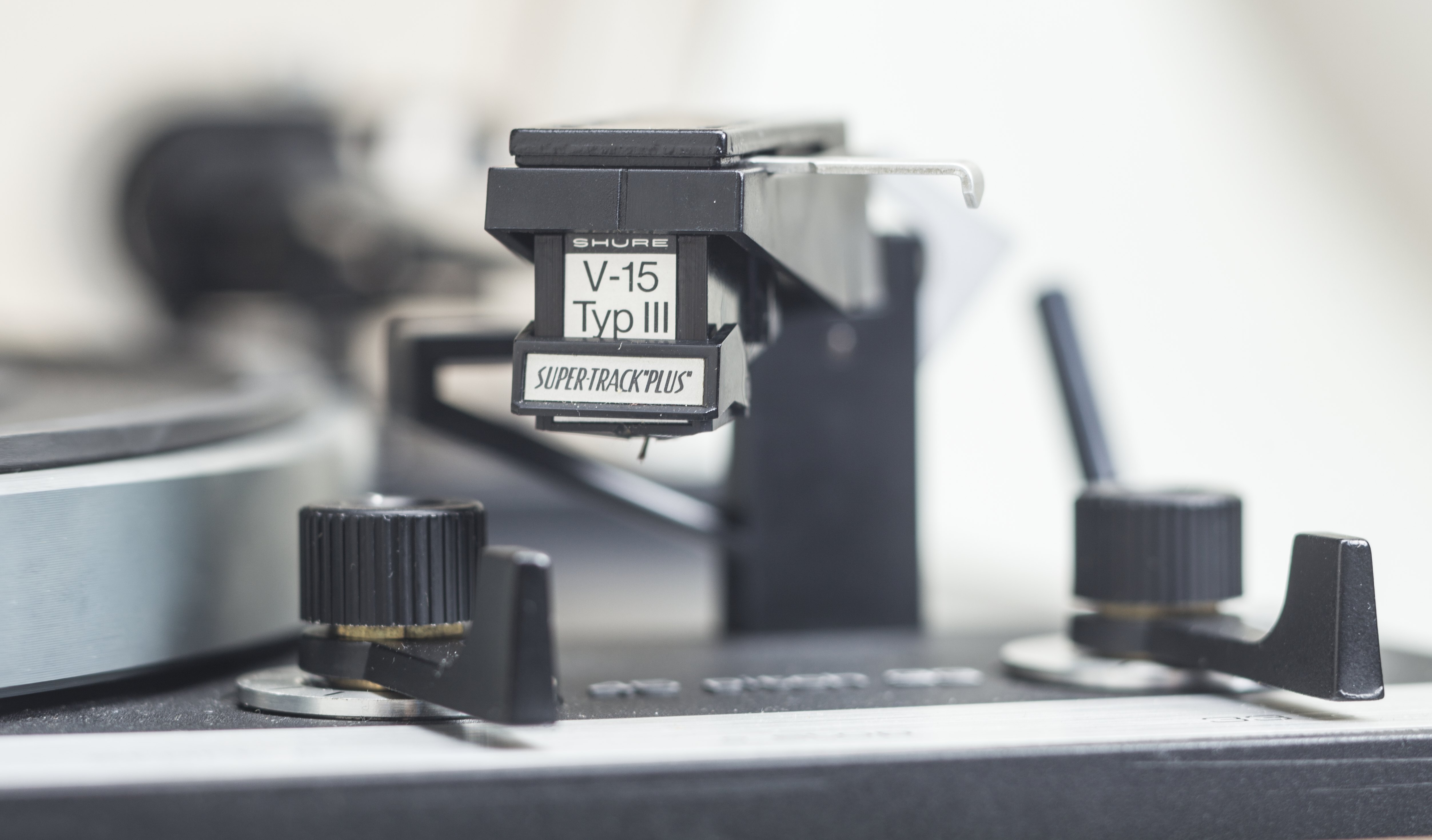

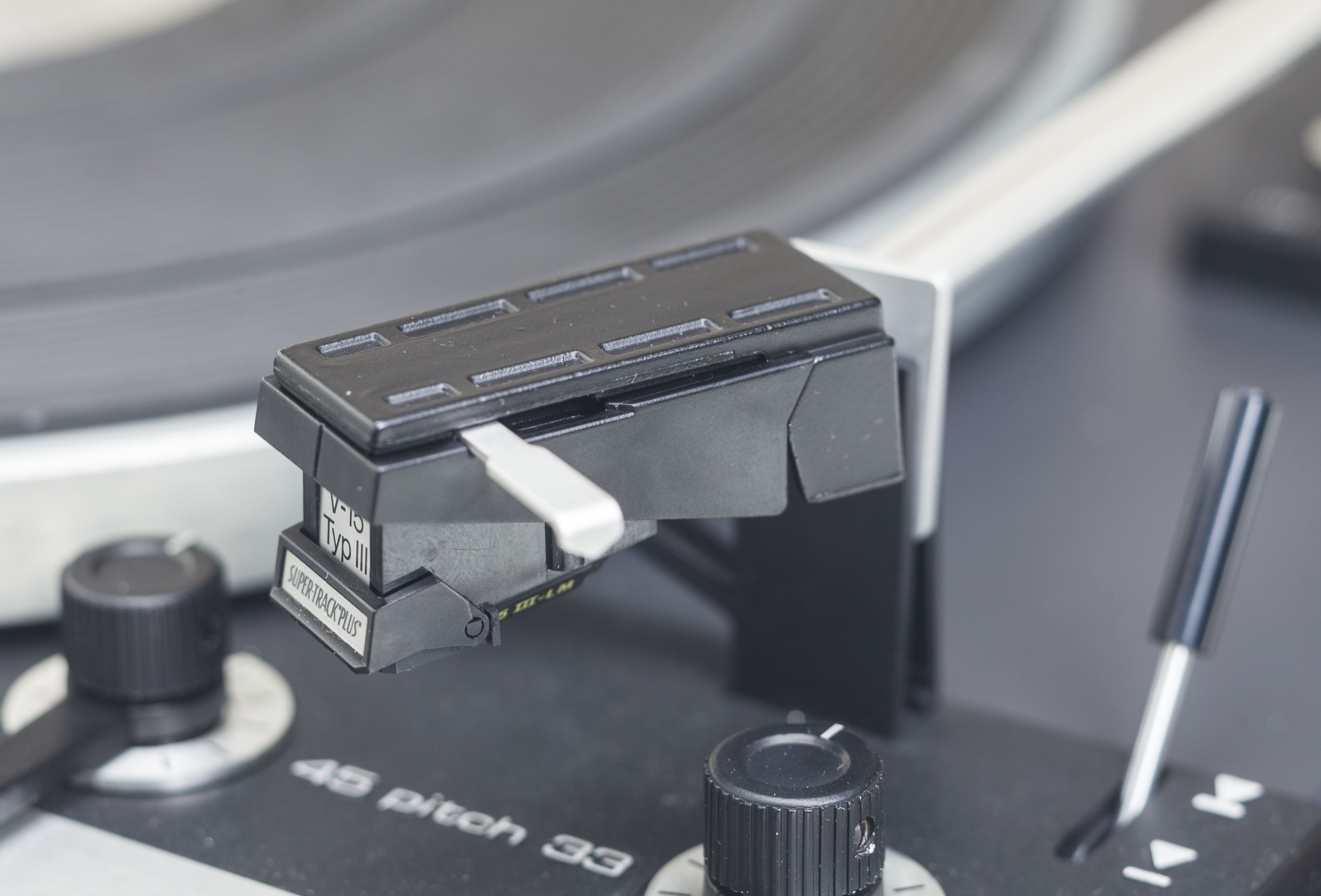

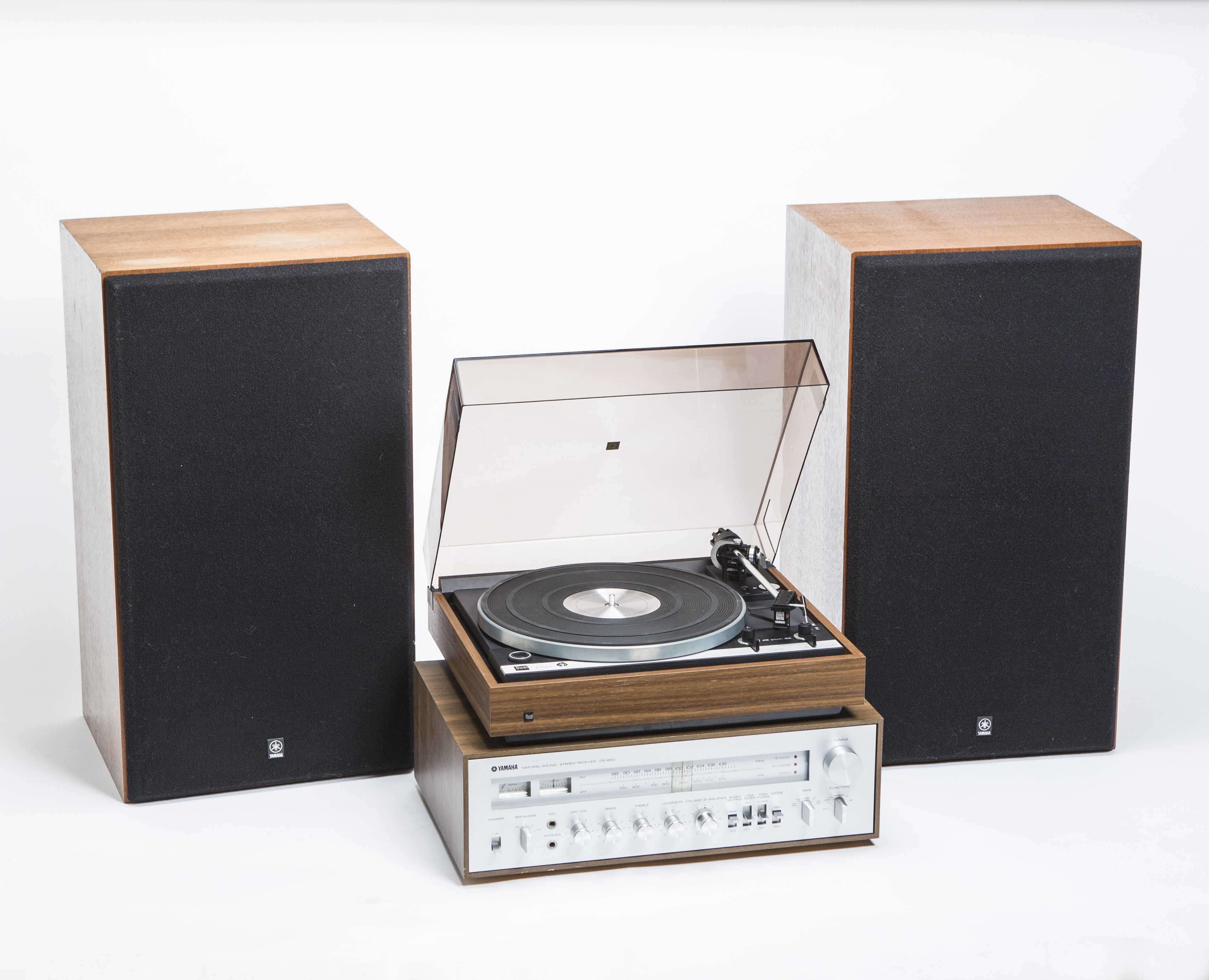

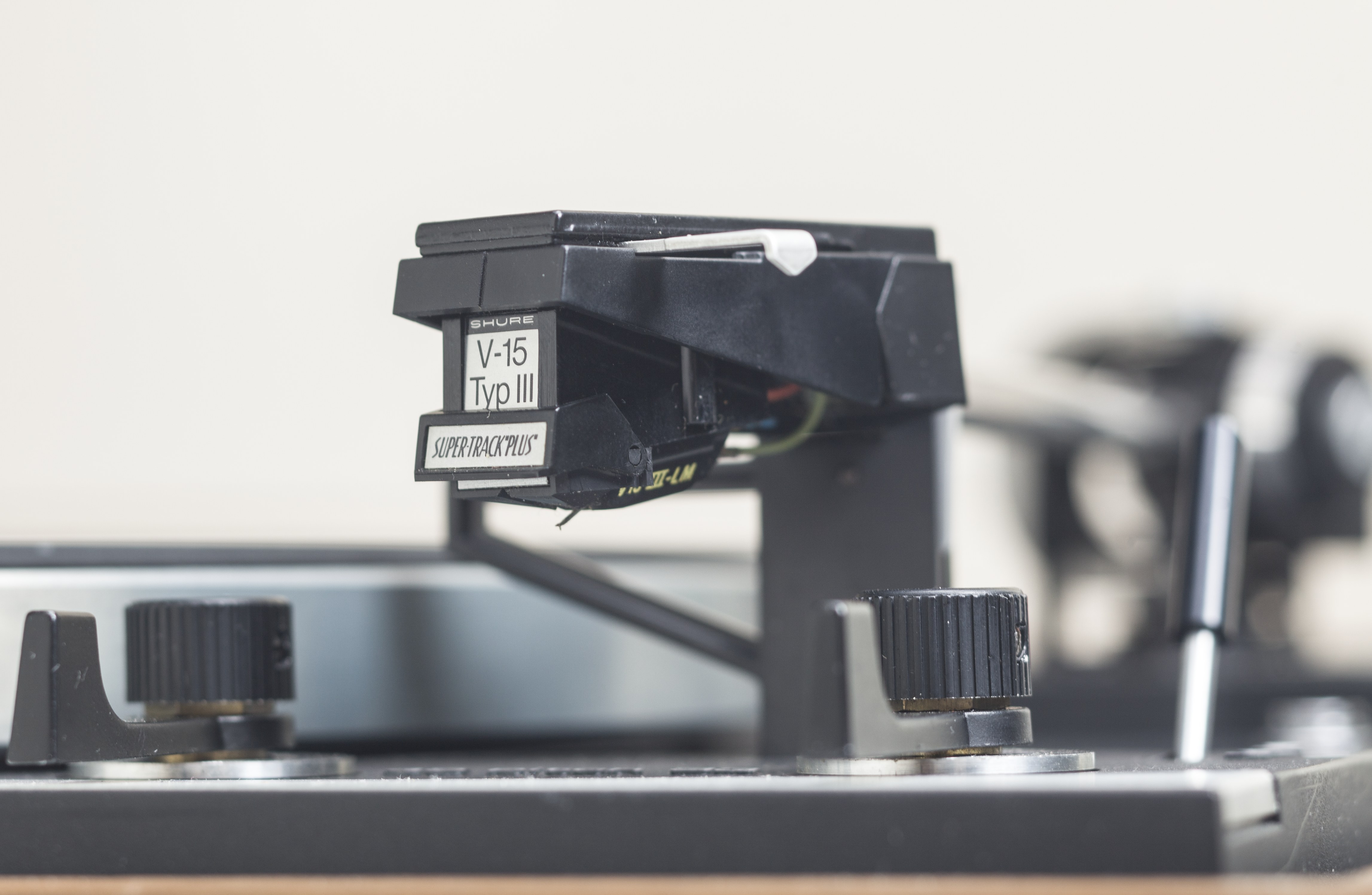

Hi-Fi system Yamaha from 70´s with Dual 701  turntable fitted with legendary  Shure V15 Type III L-M. Perfect for classical  music lovers.

In great workink and cosmetic order

1 year warranty .

Components:

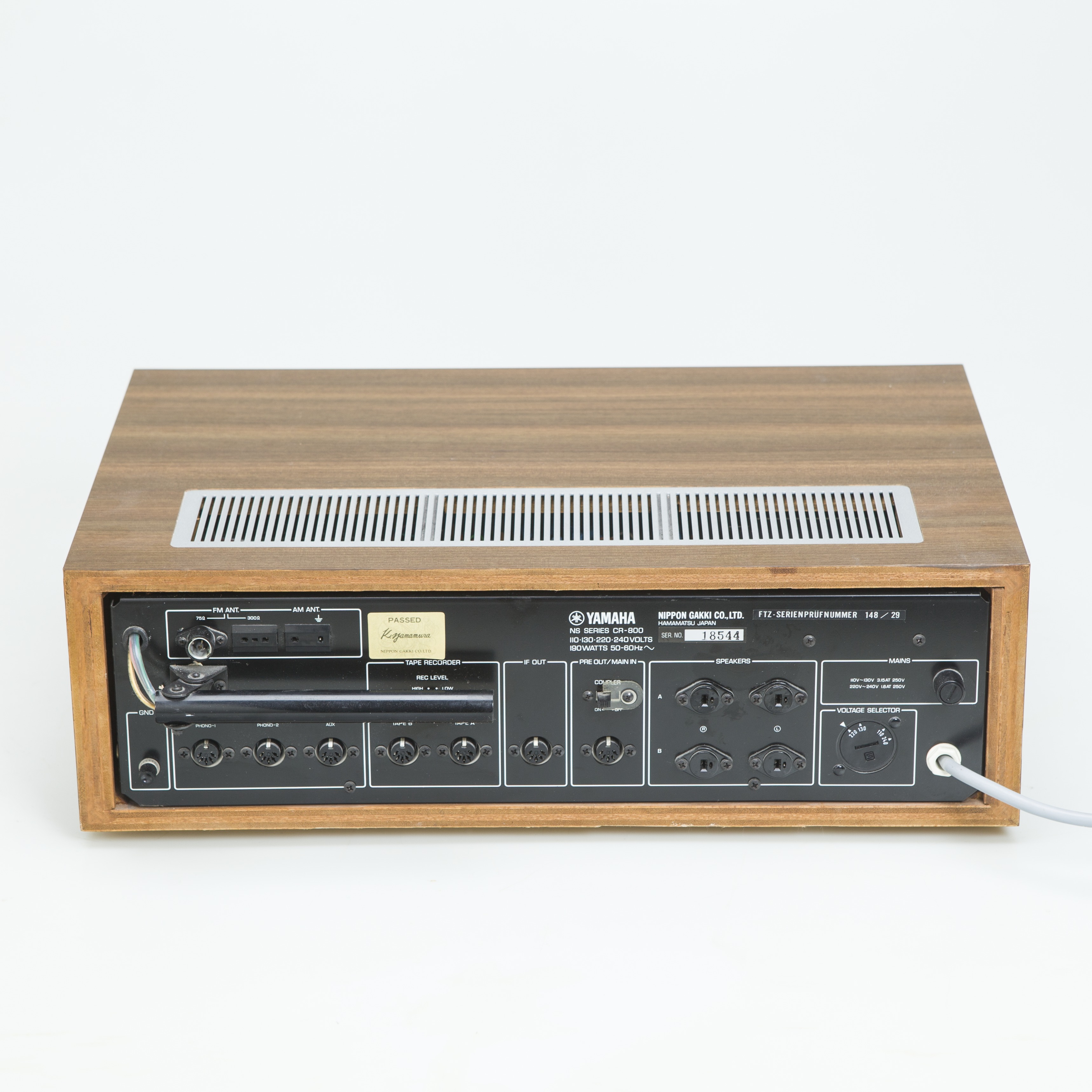

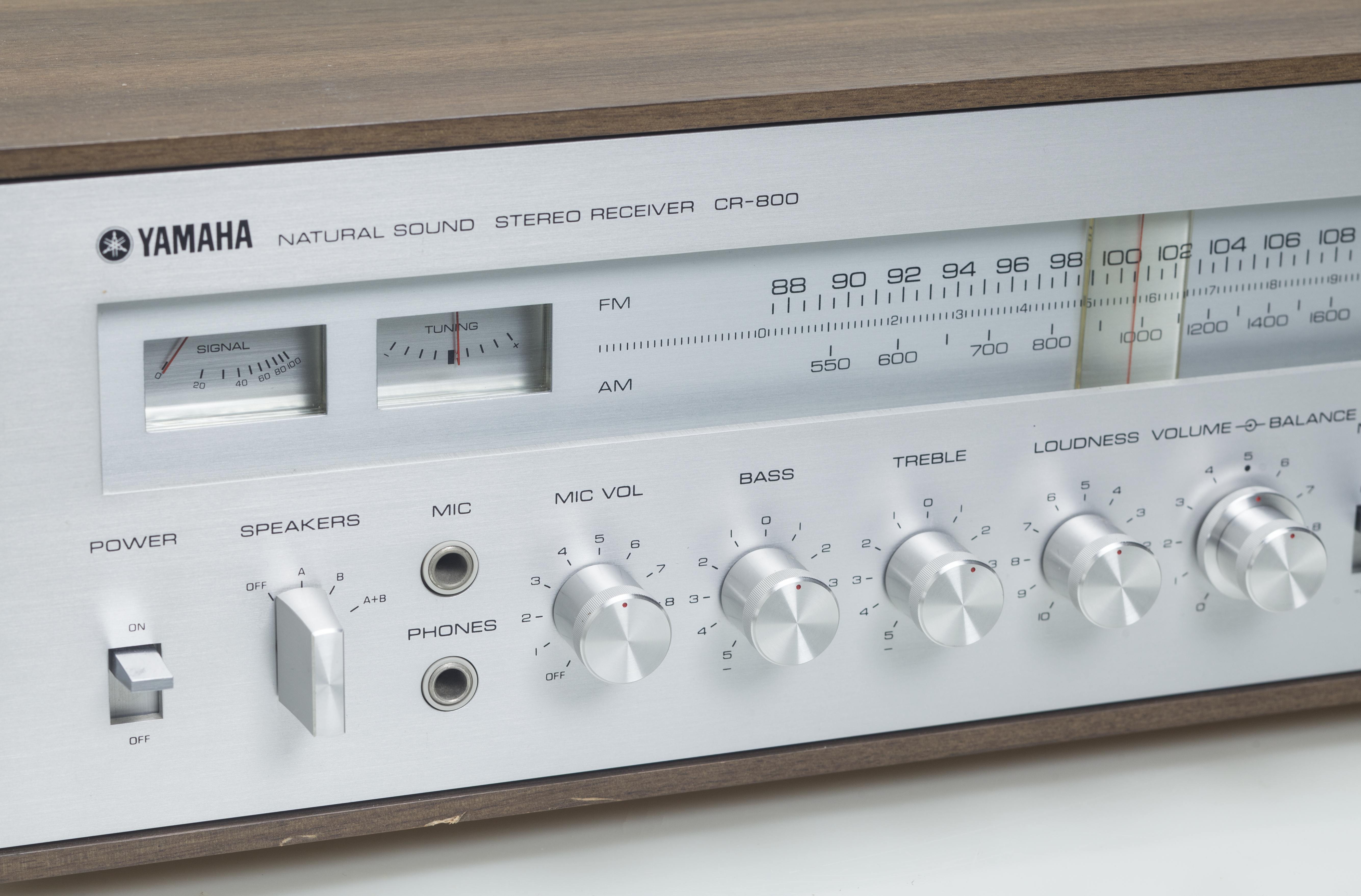

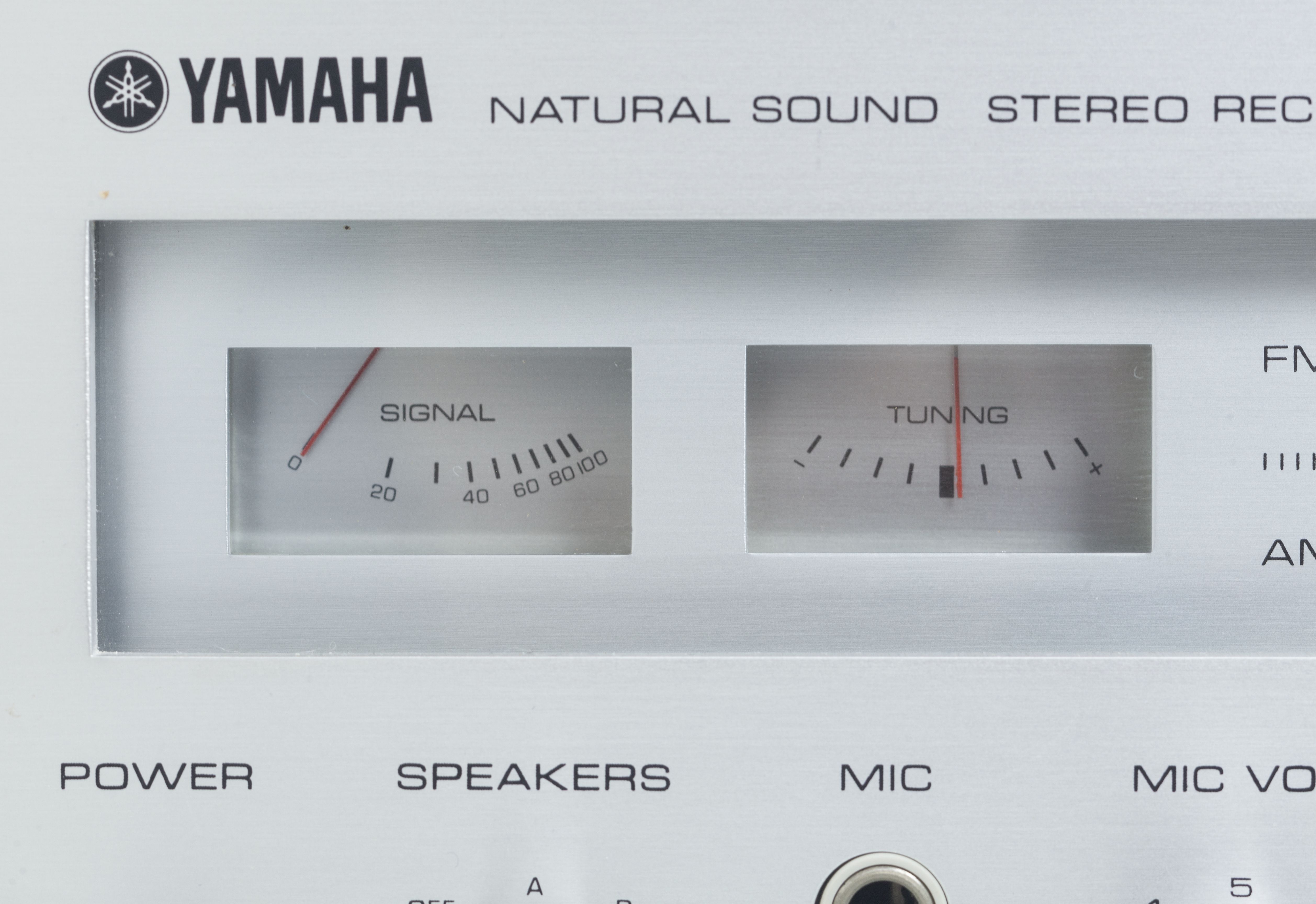

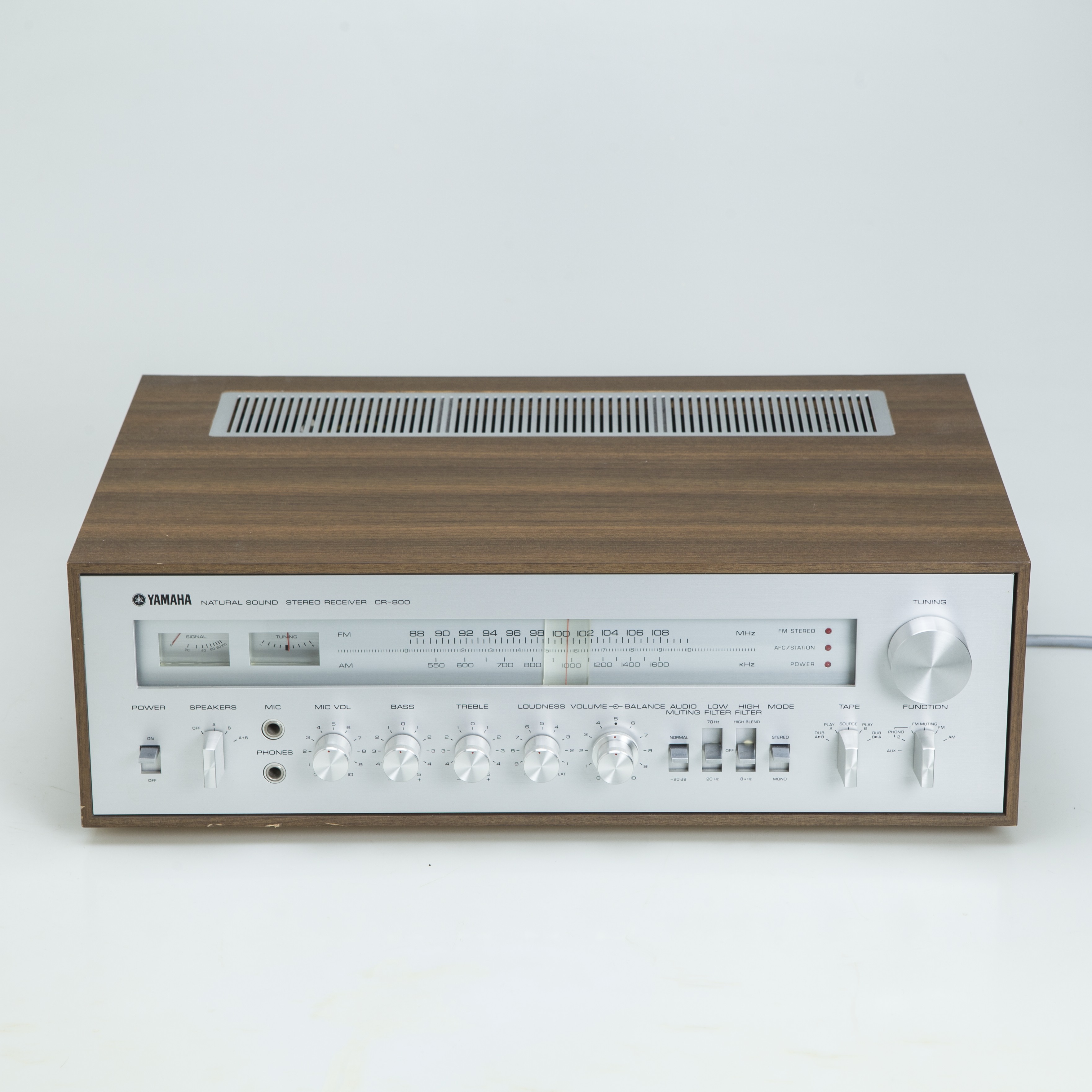

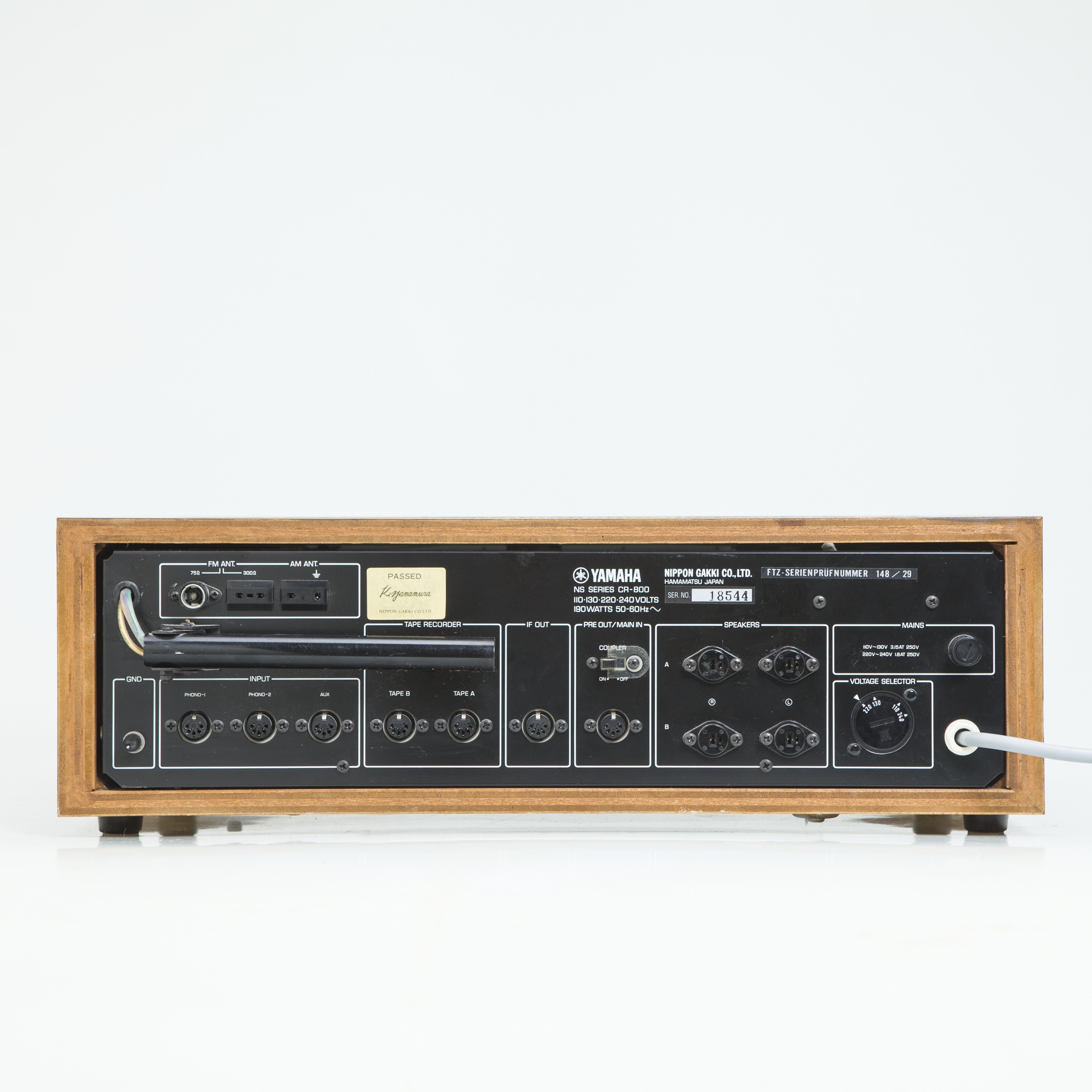

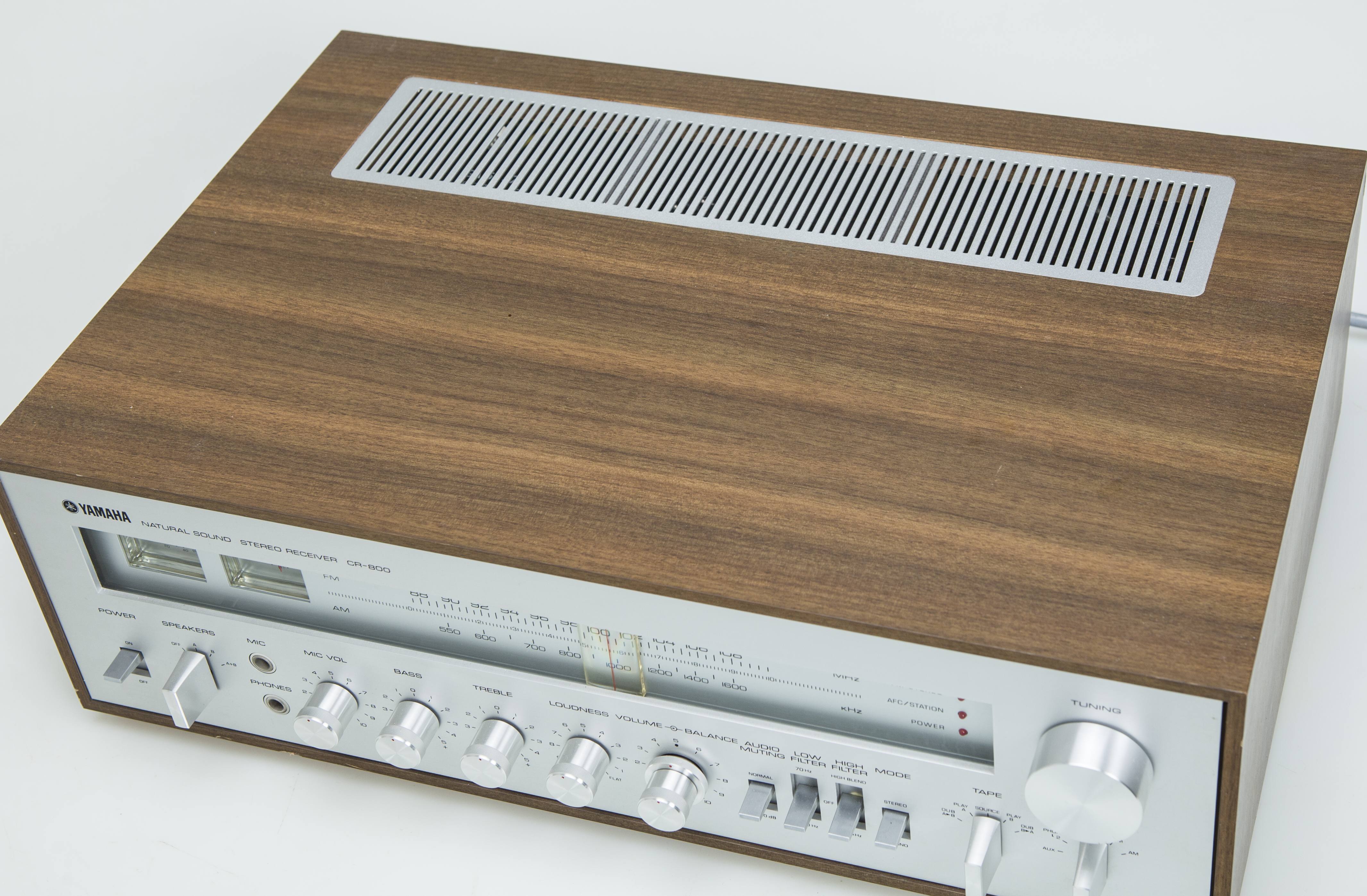

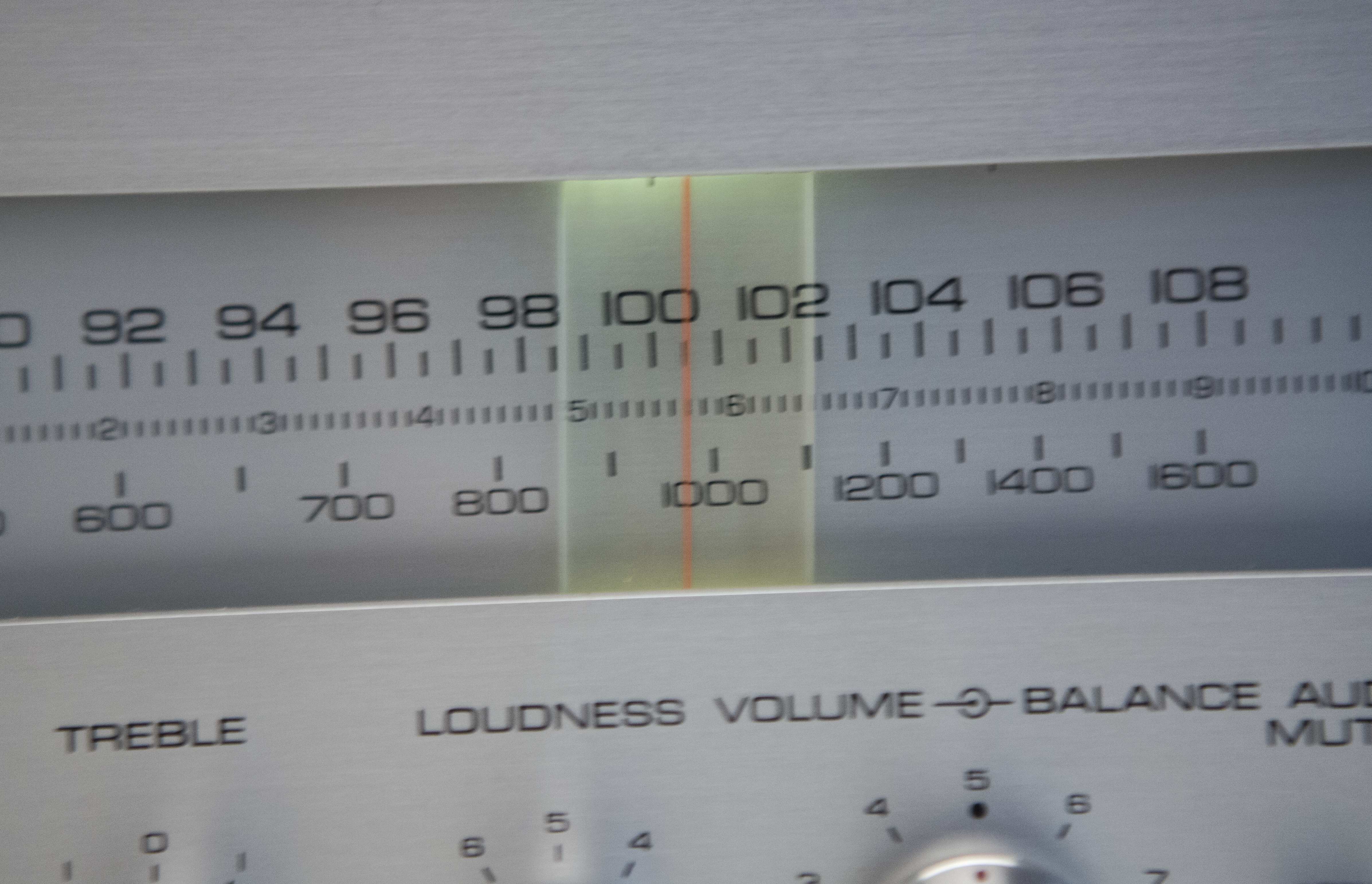

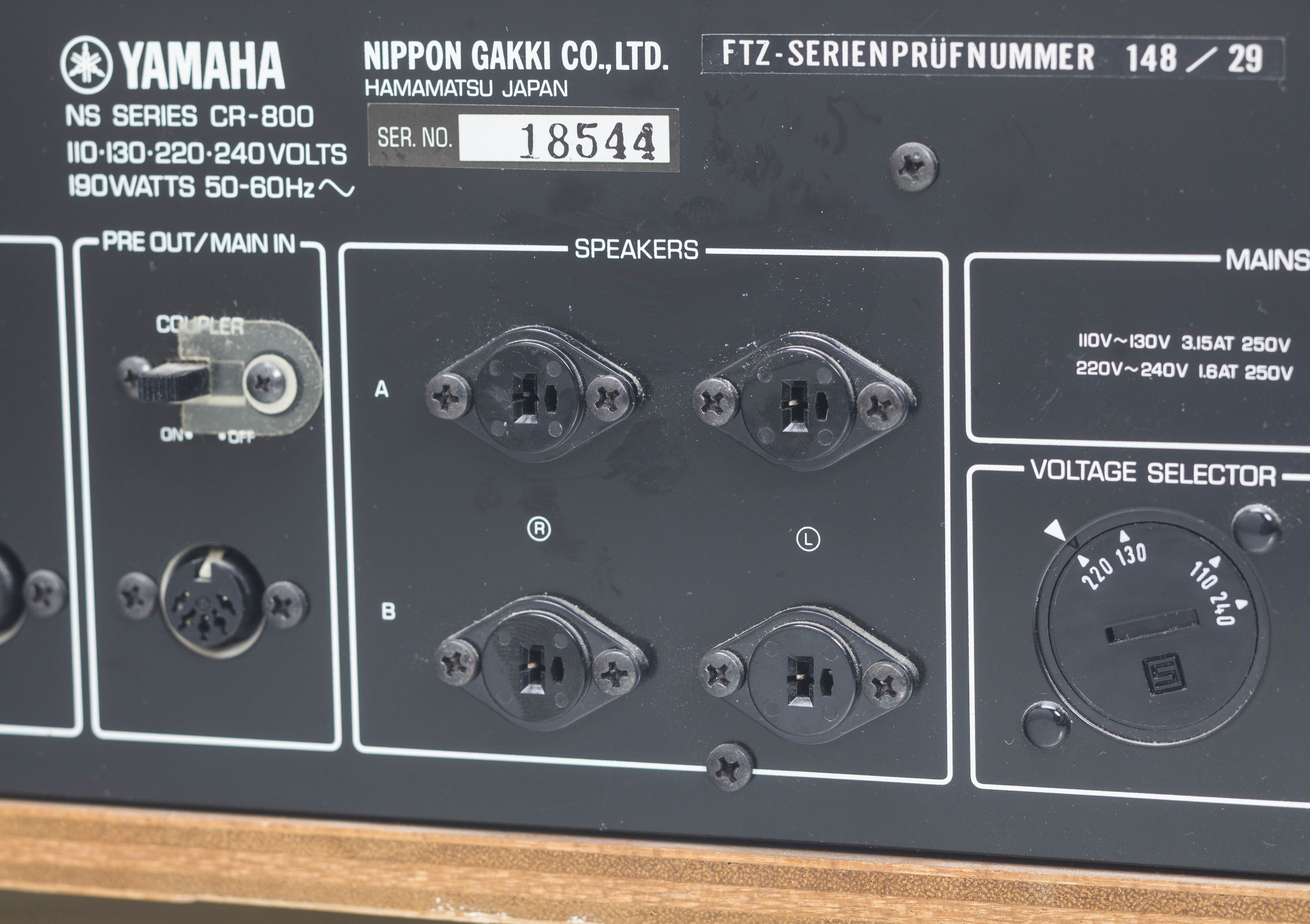

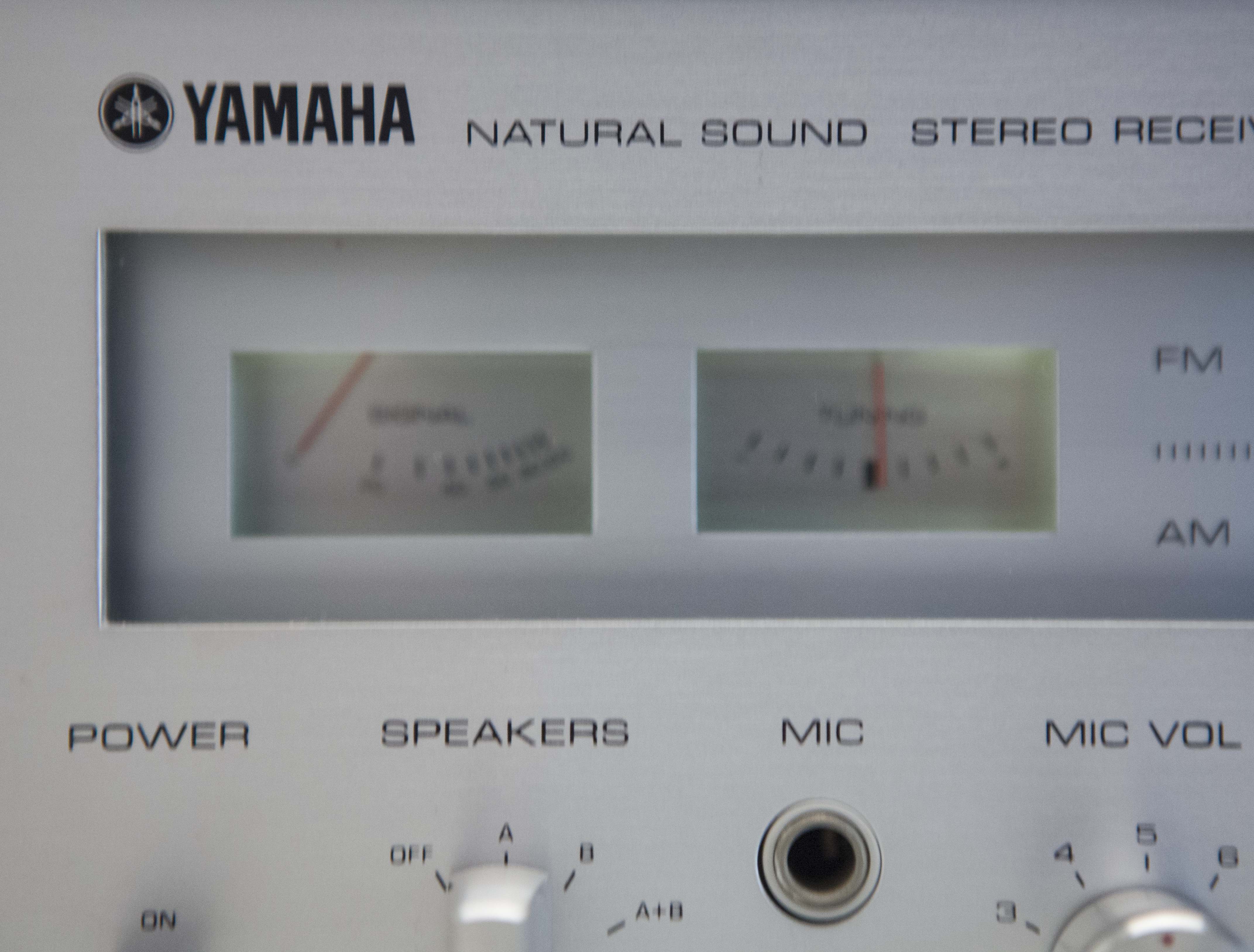

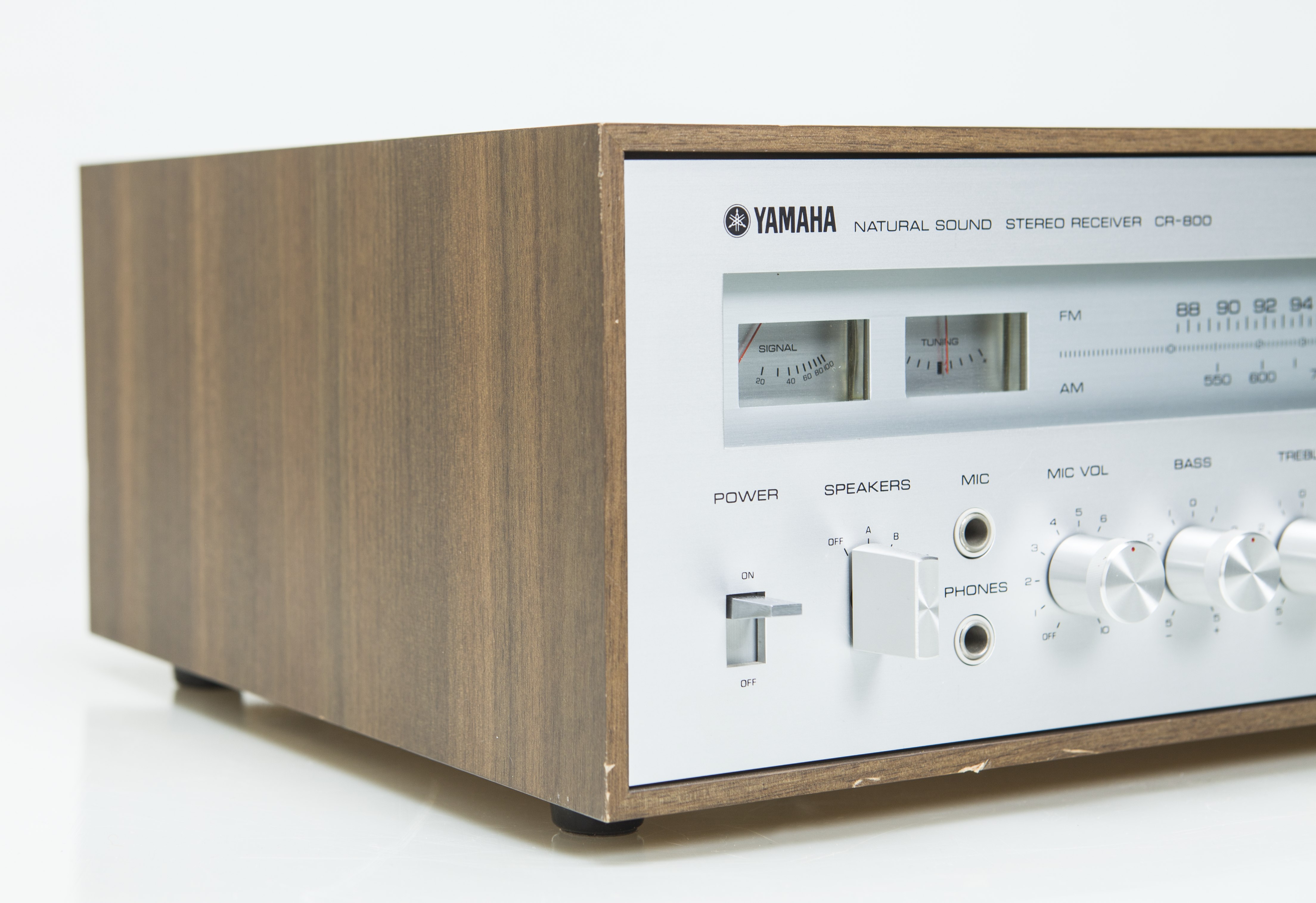

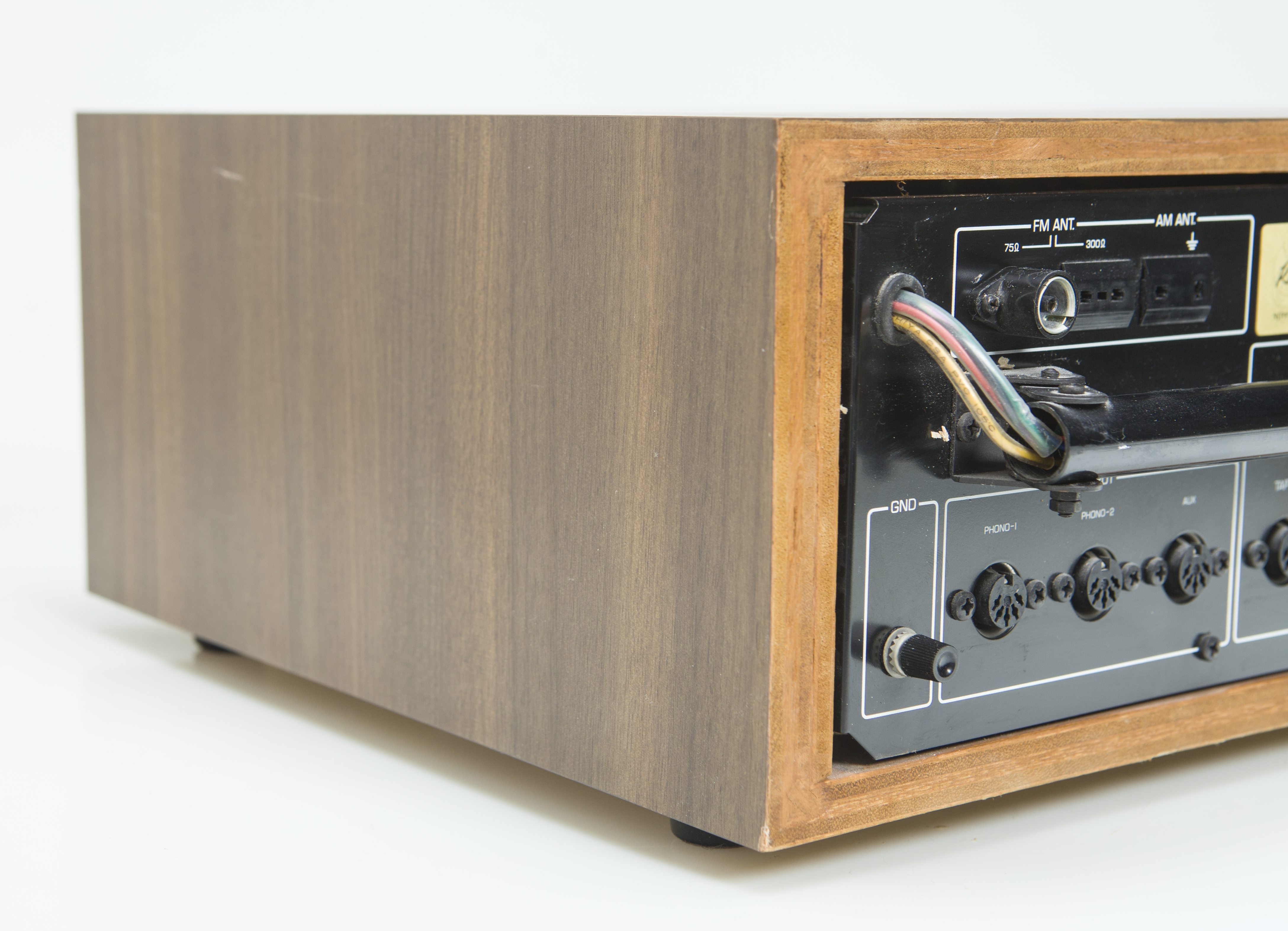

Reciever Yamaha CR-800

Tuning range: FM, MW

Power output: 45 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 50kHz

Total harmonic distortion: 0.1%

Damping factor: 70

Input sensitivity: 3mV (mic), 3mV (MM), 150mV (line)

Signal to noise ratio: 70dB (mic), 75dB (MM), 90dB (line)

Channel separation: 50dB (MM), 50dB (line)

Output: 150mV (line), 0.775V (Pre out)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 2 x IC, 3 x MOSFET, 98 x transistors, 60 x diodes, 6 x zener diodes, 3 x LED

Dimensions: 474 x 158 x 300mm

Weight: 14kg



Speakers Yamaha NS-690

Type: 3 way, 3 driver loudspeaker system

Frequency Response: 35Hz to 20kHz

Power Handling: 60W

Crossover Frequency: 800, 6000Hz

Impedance: 8Ω

Sensitivity: 96dB

Bass: 1 x 300mm cone

Midrange: 1 x 75mm dome

Tweeter: 1 x 30mm soft dome

Dimensions: 630 x 350 x 291mm

Weight: 22kg

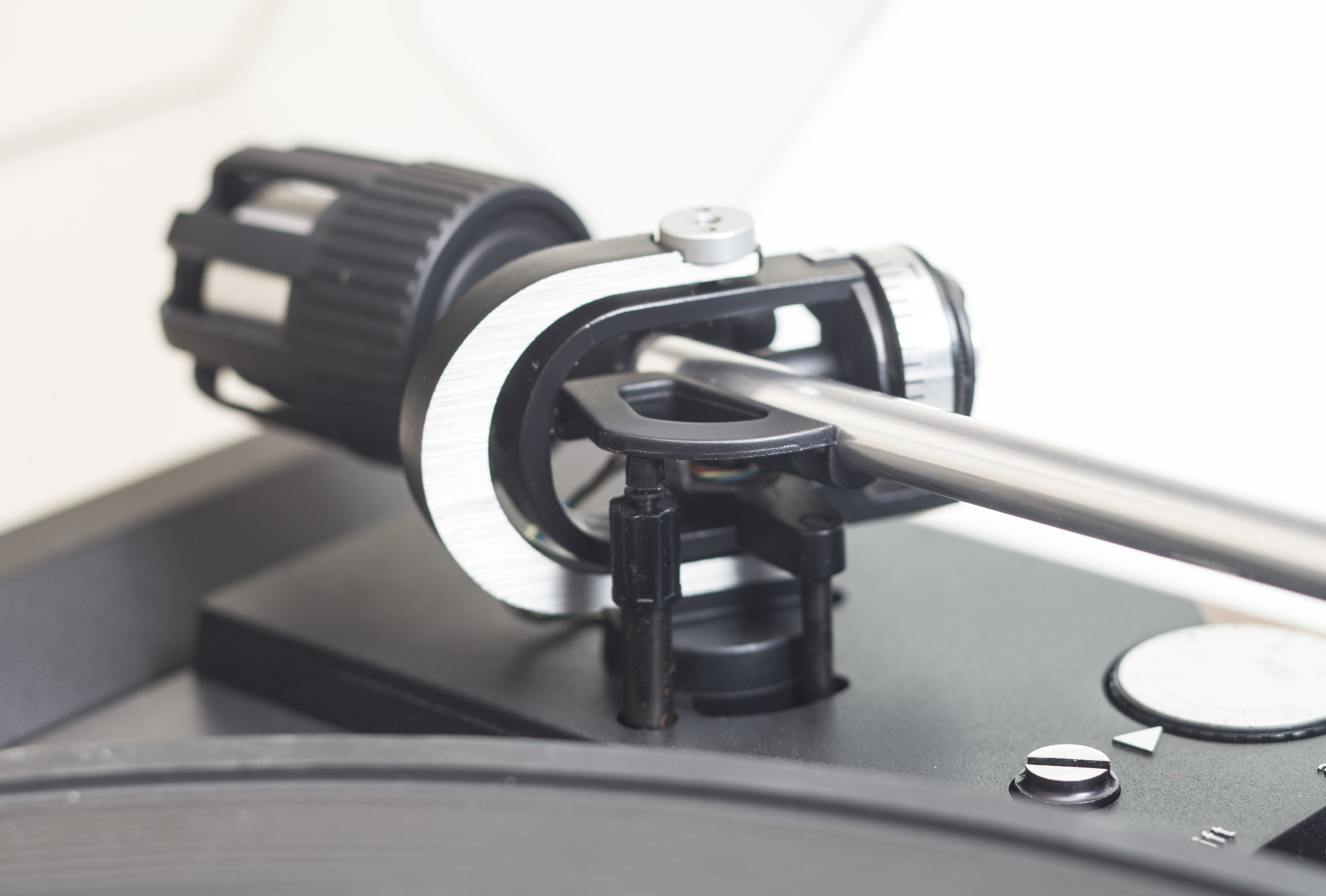

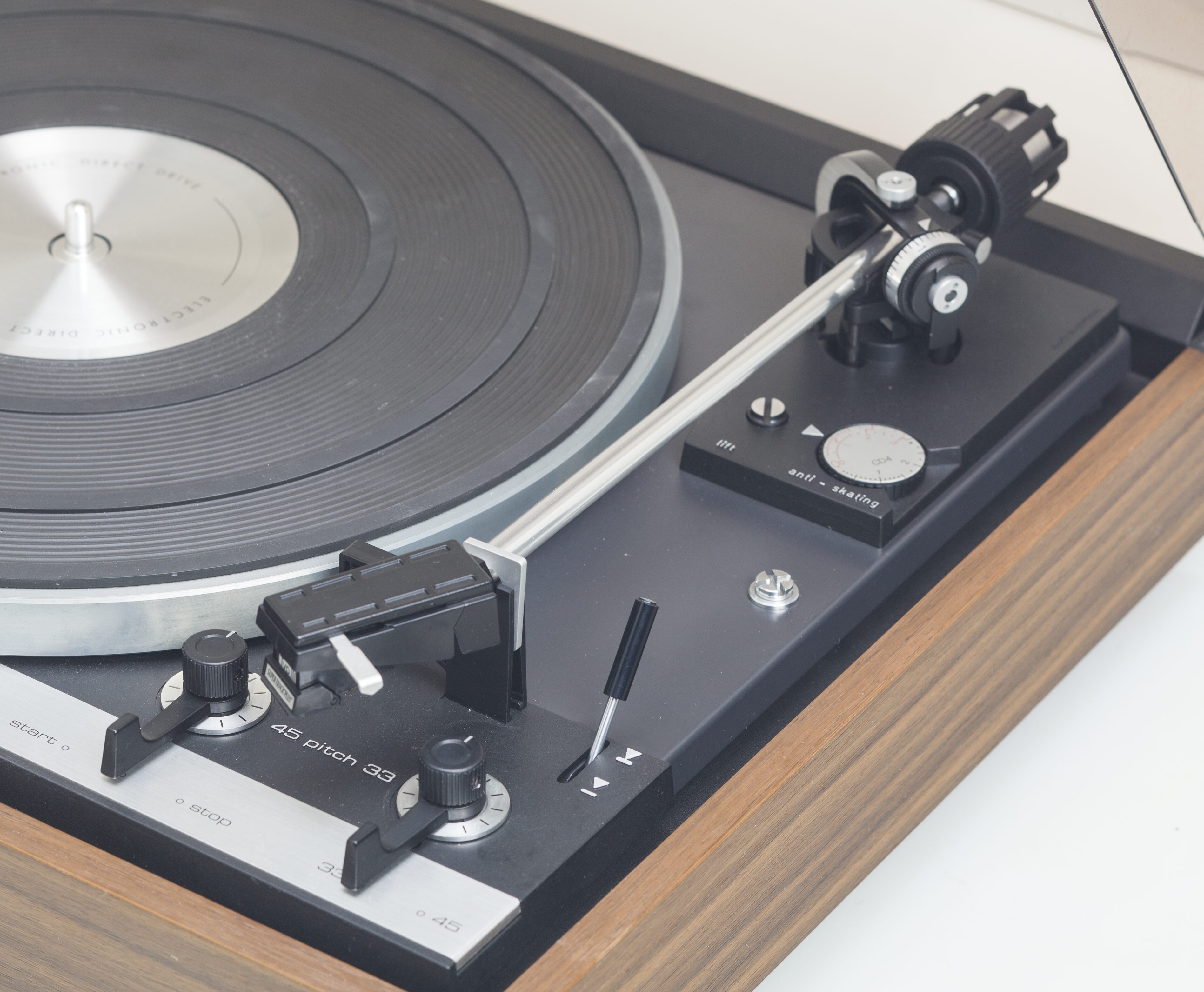

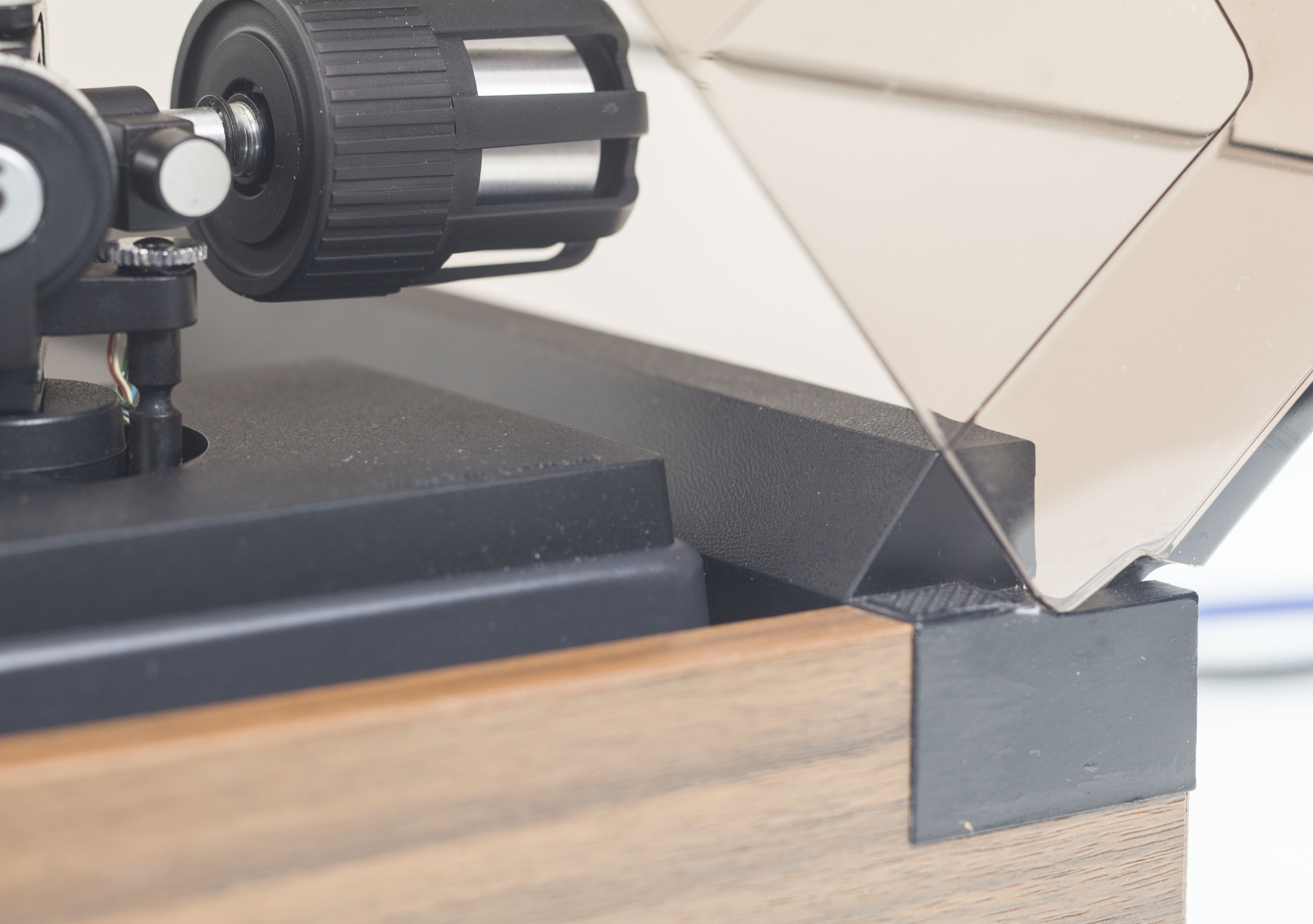

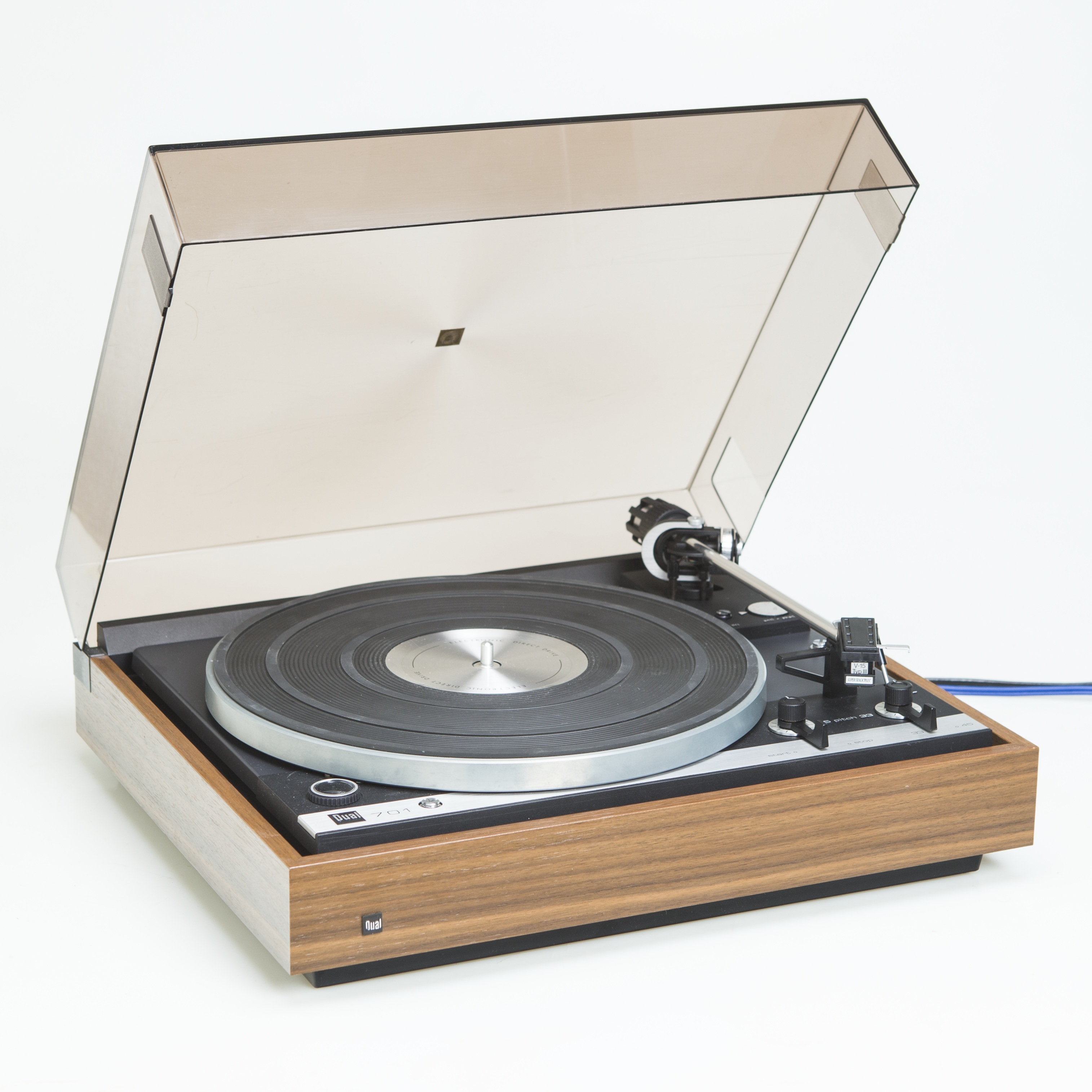

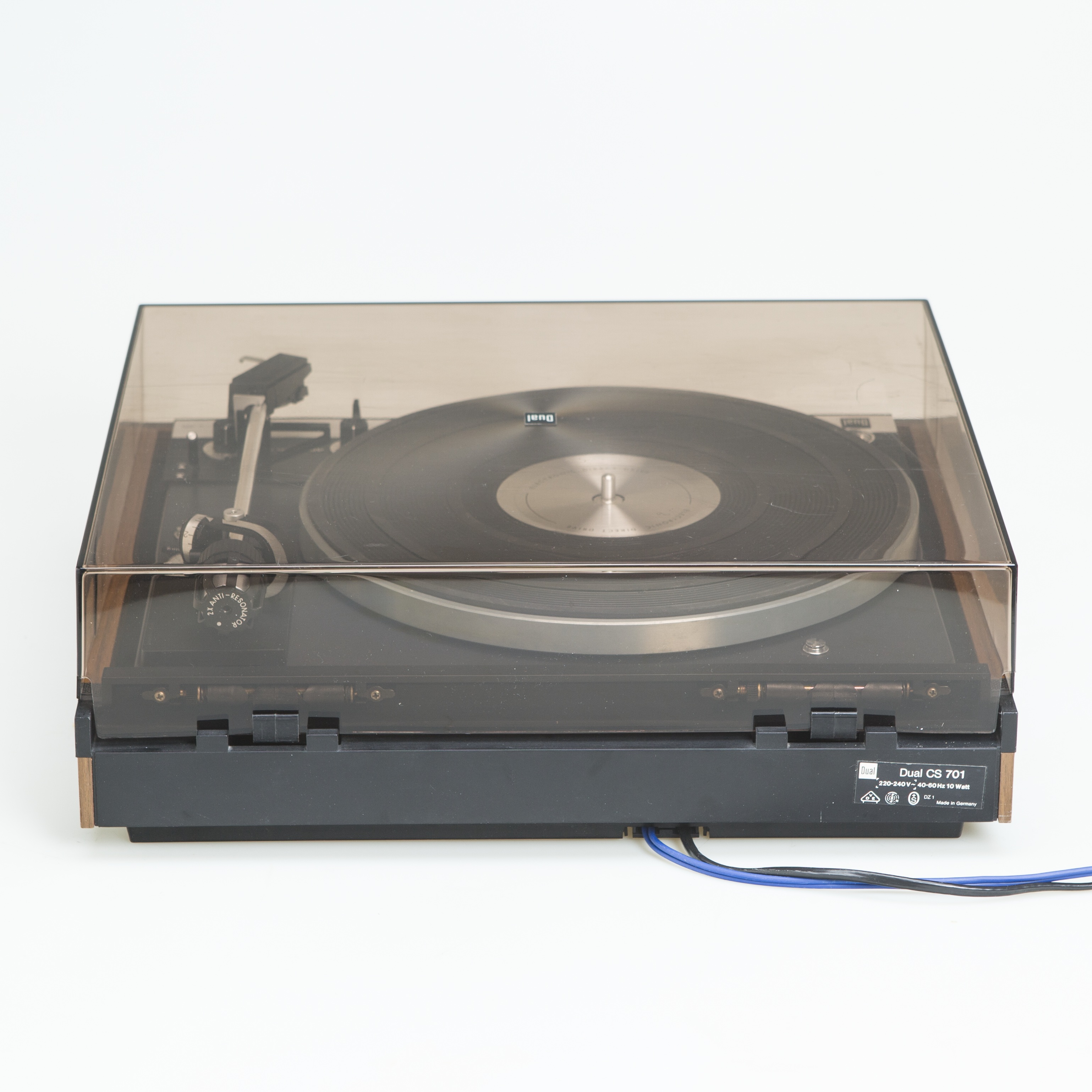

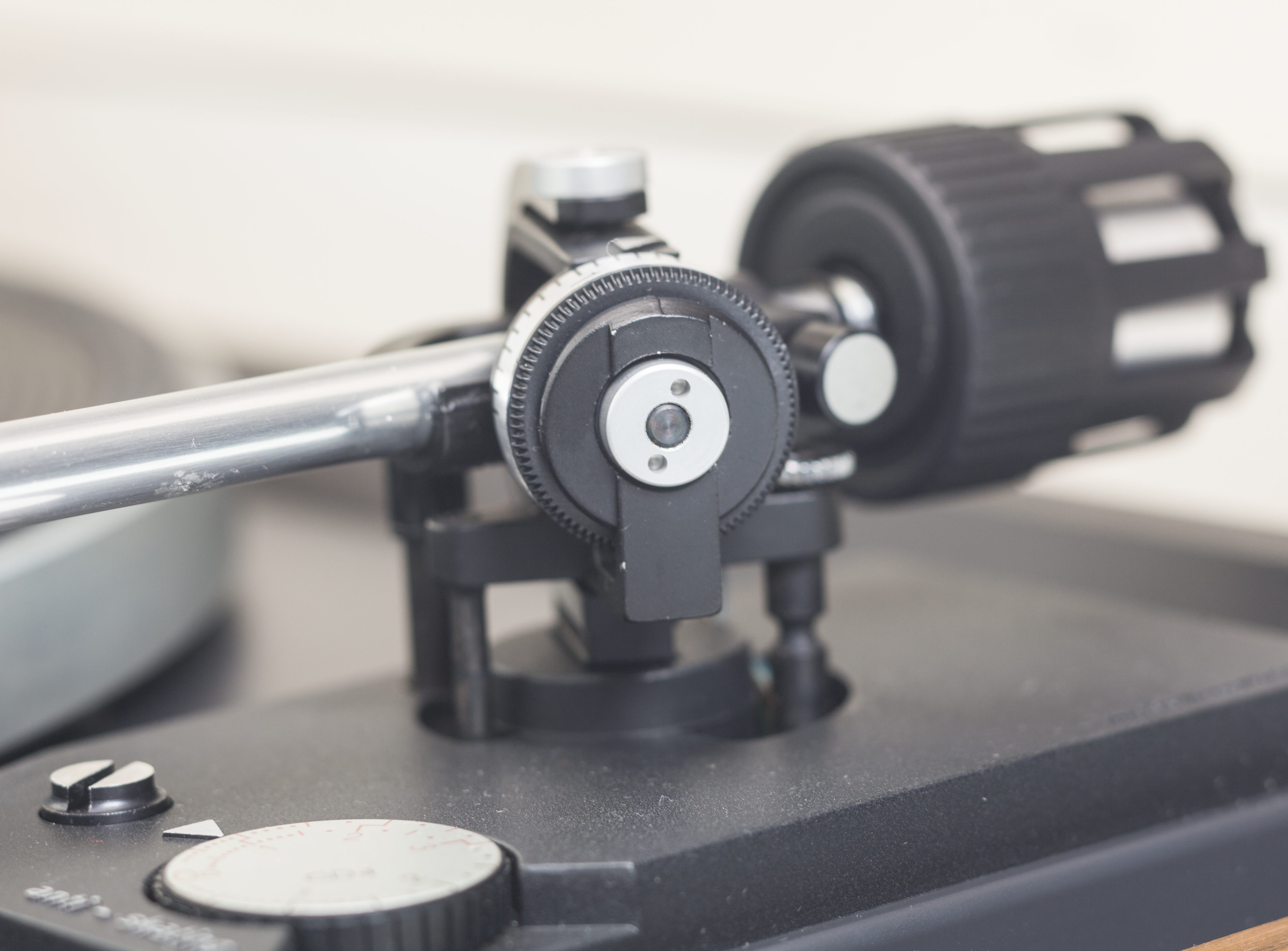

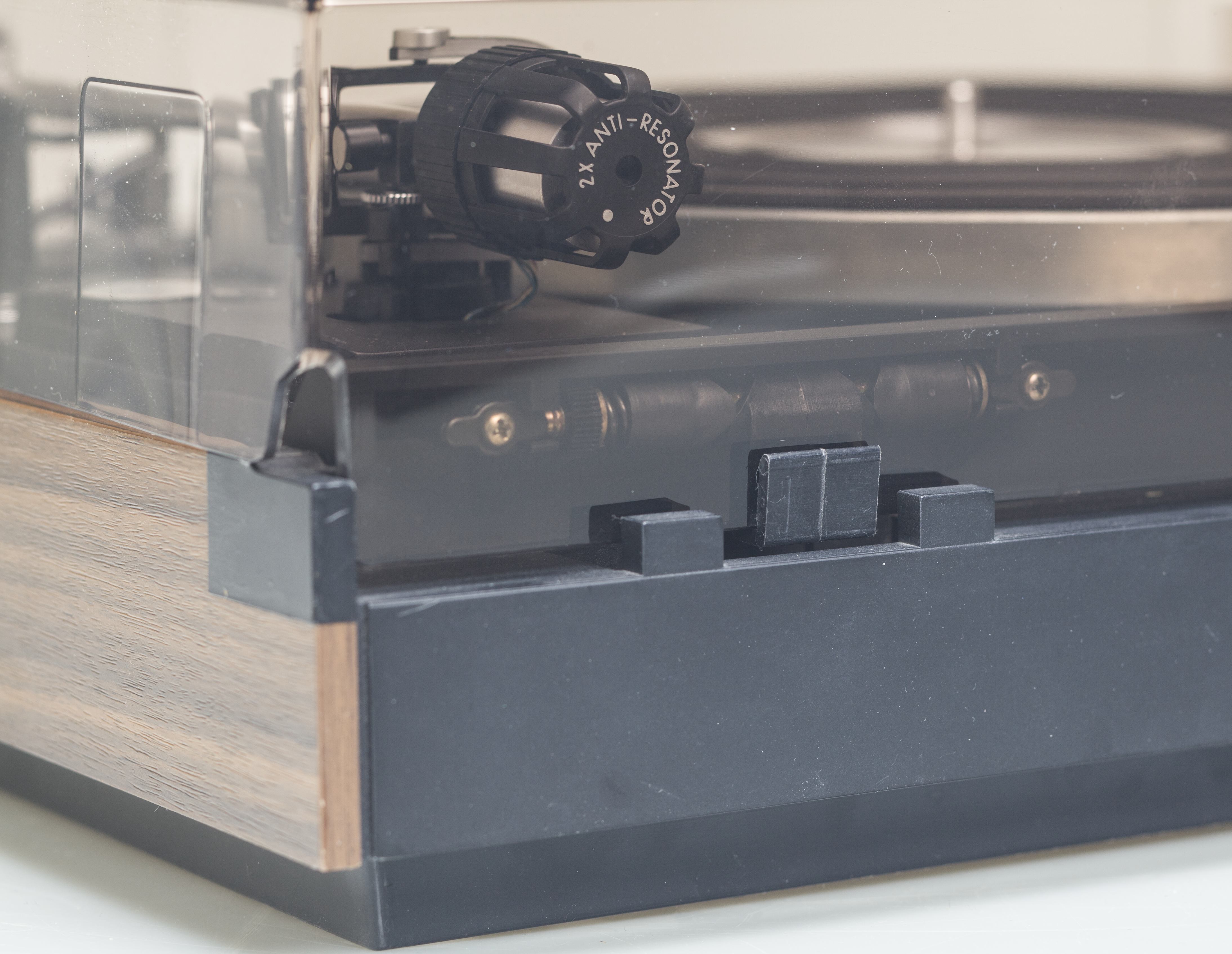

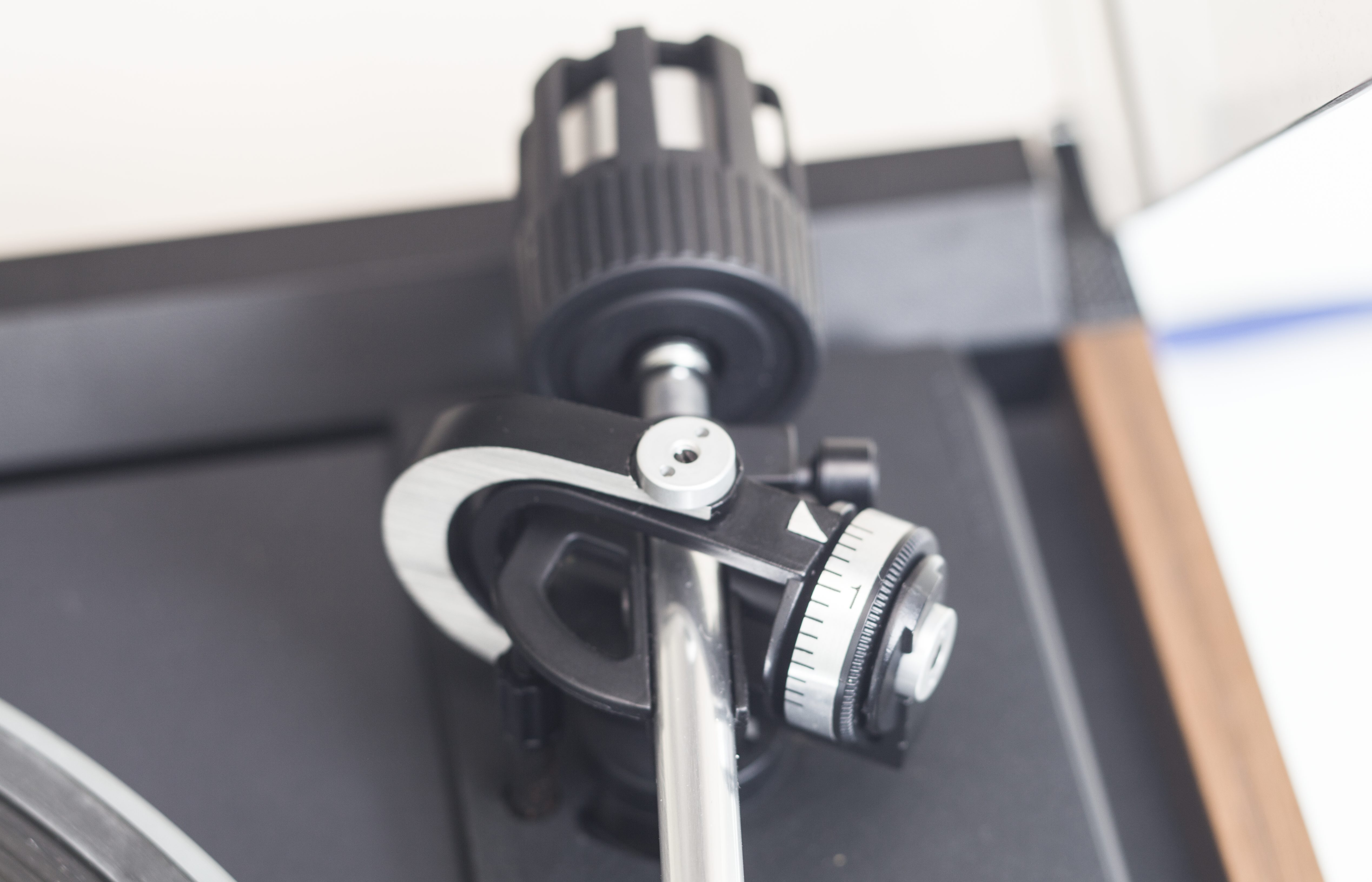

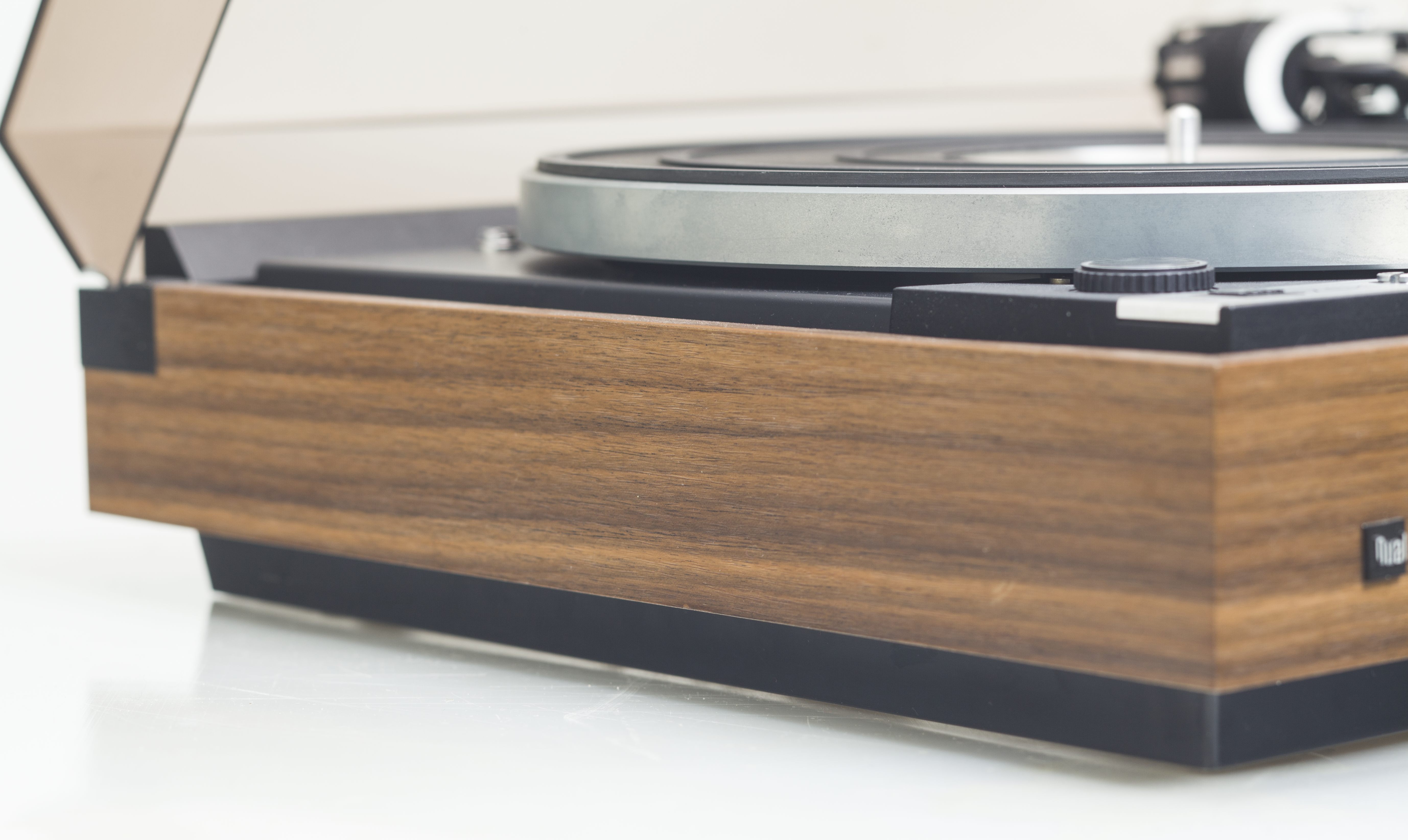

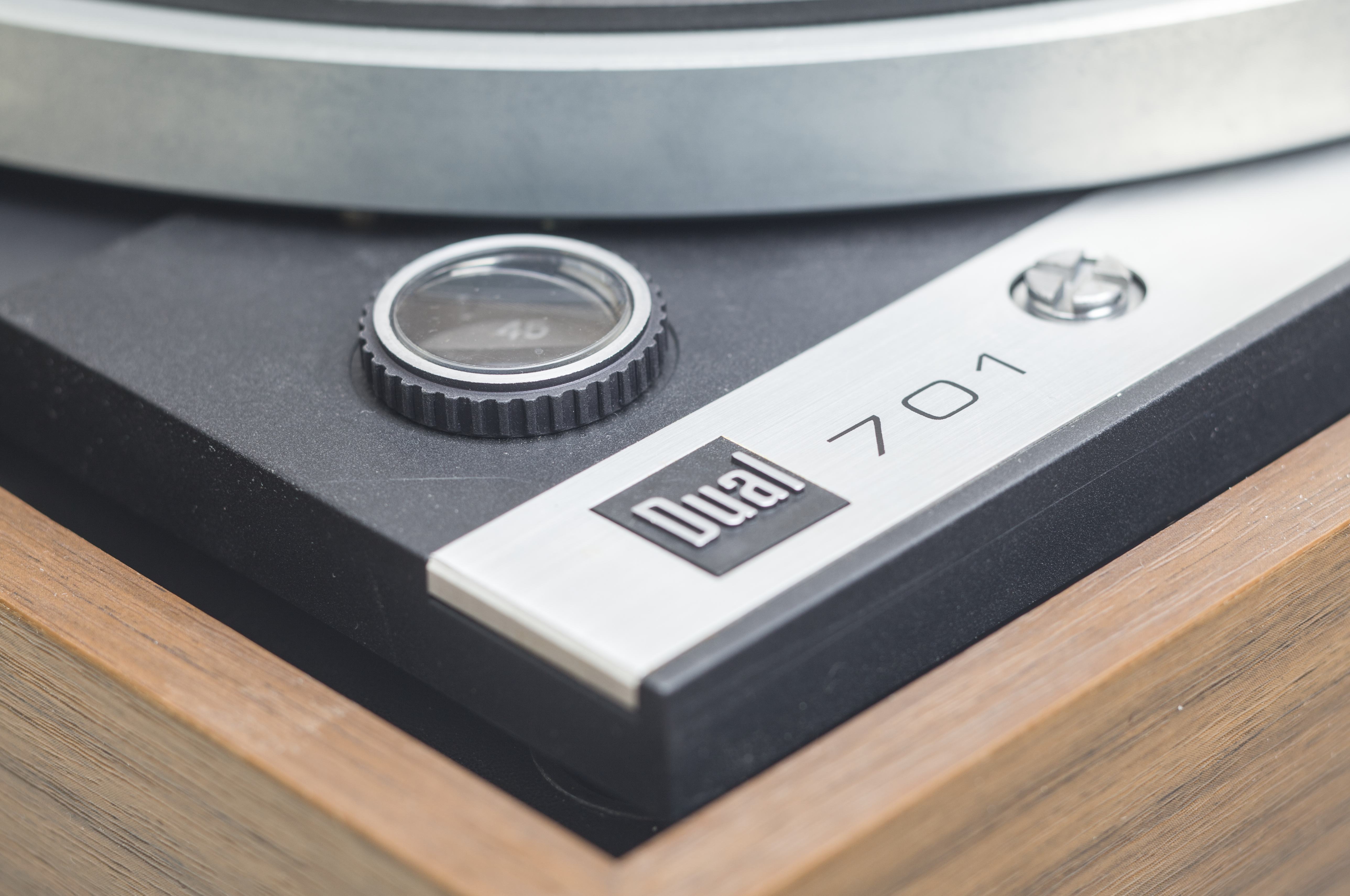

Turntable Dual 701

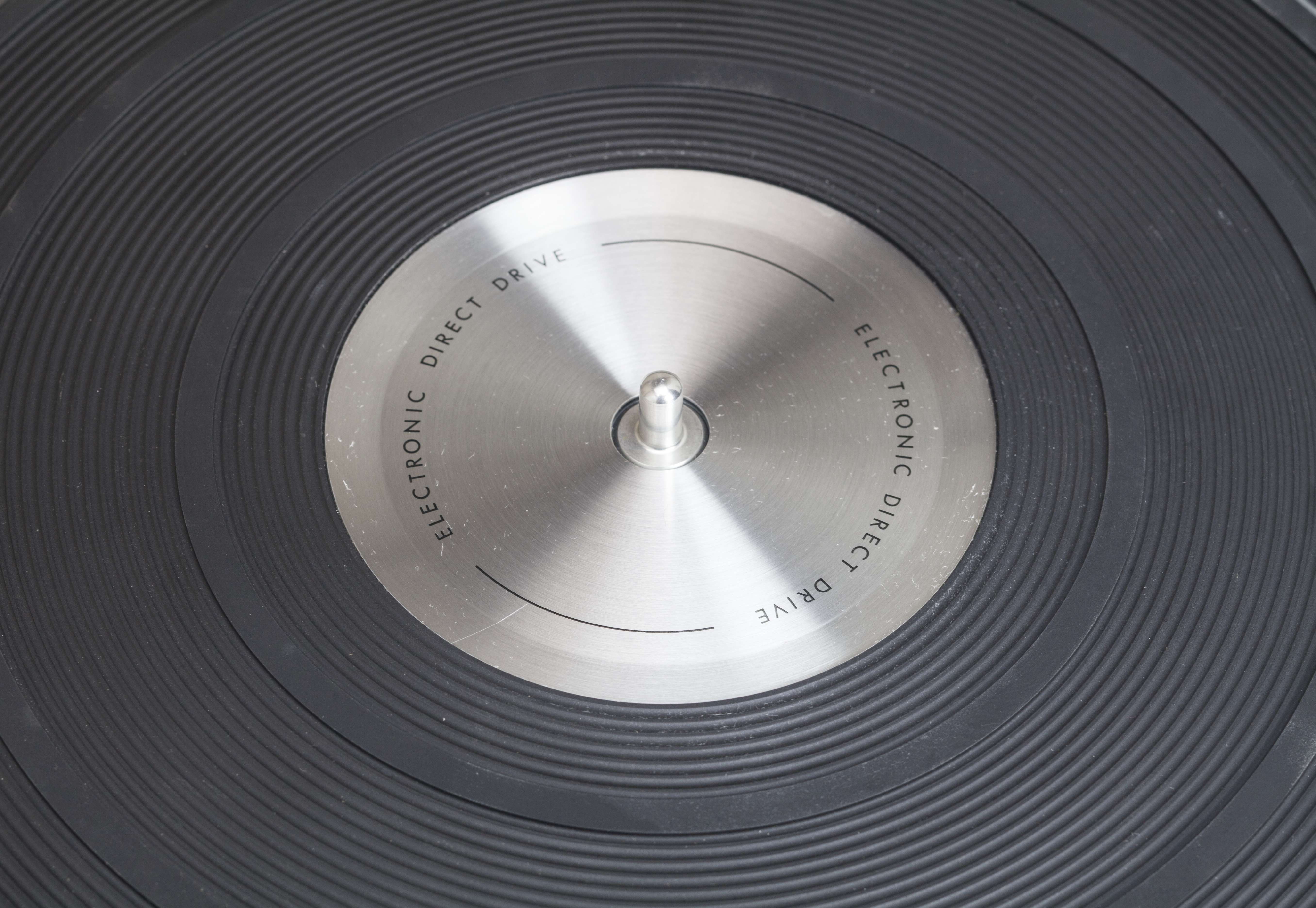

Platter: non-magnetic, dynamically balanced, detachable 2.9kg

Platter speeds: 33.33 and 45rpm, electronically adjustable

Pitch control: 10% separate for both speeds, each adjusted by means of variable resistor, with calibration scale

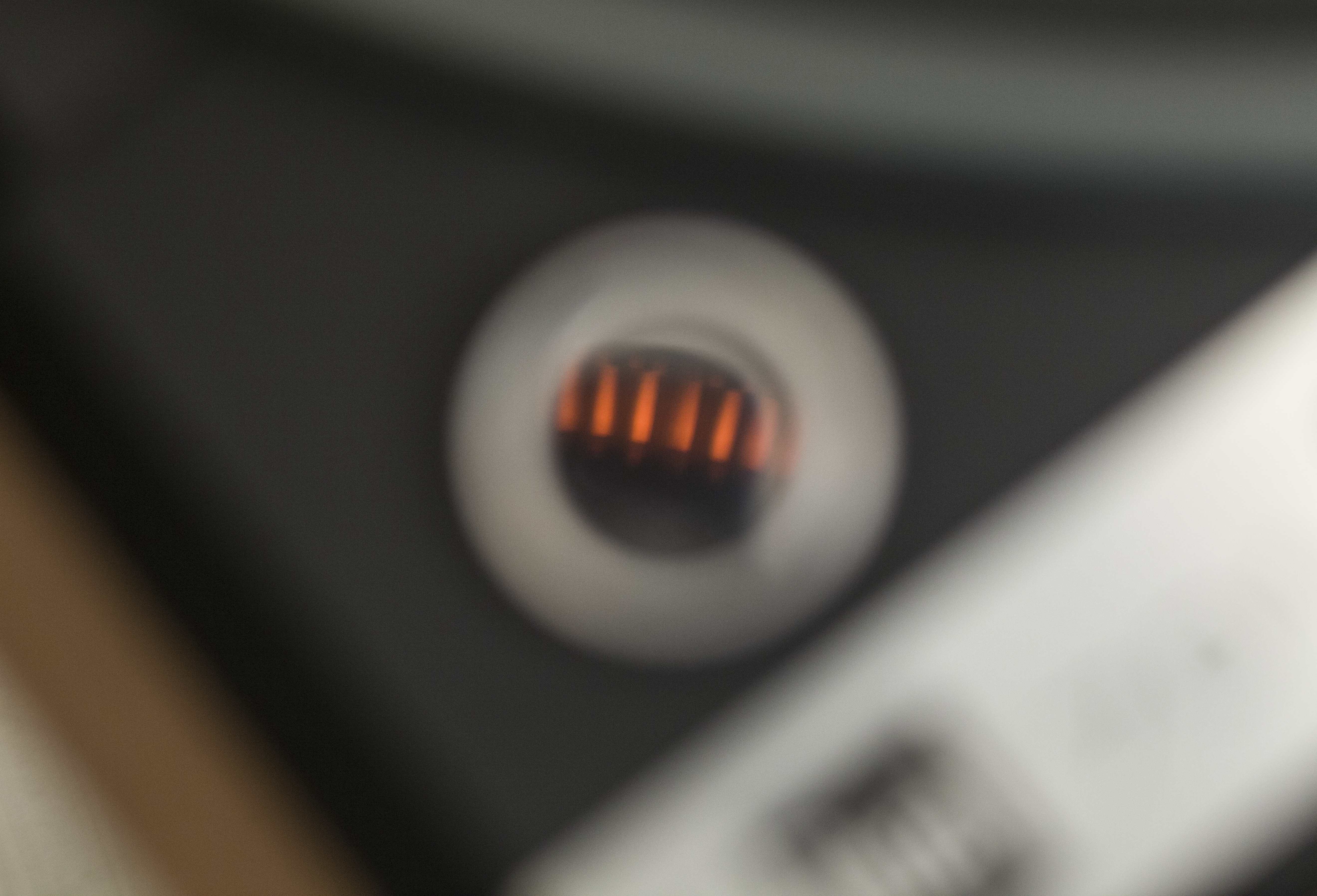

Speed control: with illuminated stroboscope

Wow and flutter: < 0.03
