NEW

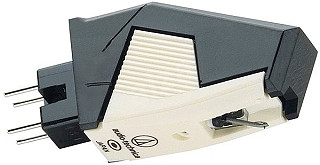

Audio-Technica AT-311EP
Sorry , product no longer available
Info
| Record grading: NEW without any damage more info here |
Description
Audio-technica AT-311EP with T4P conector
MOVING MAGNET CARTRIDGE
- 0.4 x 0.7 mil elliptical stylus
- Alloy tube cantilever
- Universal adaptor and installation screw and nut supplied
- Bonded round shank diamon
| Type | Dual Magnet |
| Mounting | P-mount & 1/2” mount |
| Frequency Response | 15 - 27,000 Hz |
| Channel Separation | 29 dB / 18 dB (1 kHz/10 kHz) |
| Output Channel Balance | 1.25 dB (1 kHz) |
| Output Voltage | 3.5 mV (at 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force Range | 1.0 to 1.5g (1.25g recommended) |
| Stylus Shape | Elliptical |
| Stylus Size | 0.3 x 07 mil |
| Stylus Construction | Bonded Round Shank |
| Cantilever | Alloy Tube |
| Coil Inductance | 400 mH (1 kHz) |
| Recommended Load Impedance | 47,000 ohms |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN3472SE |
