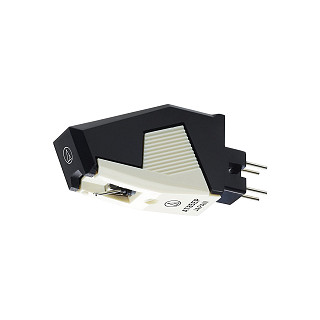

Audio-Technica AT-85EP

Audio-technica AT-85EP with T4P conector

MOVING MAGNET CARTRIDGE

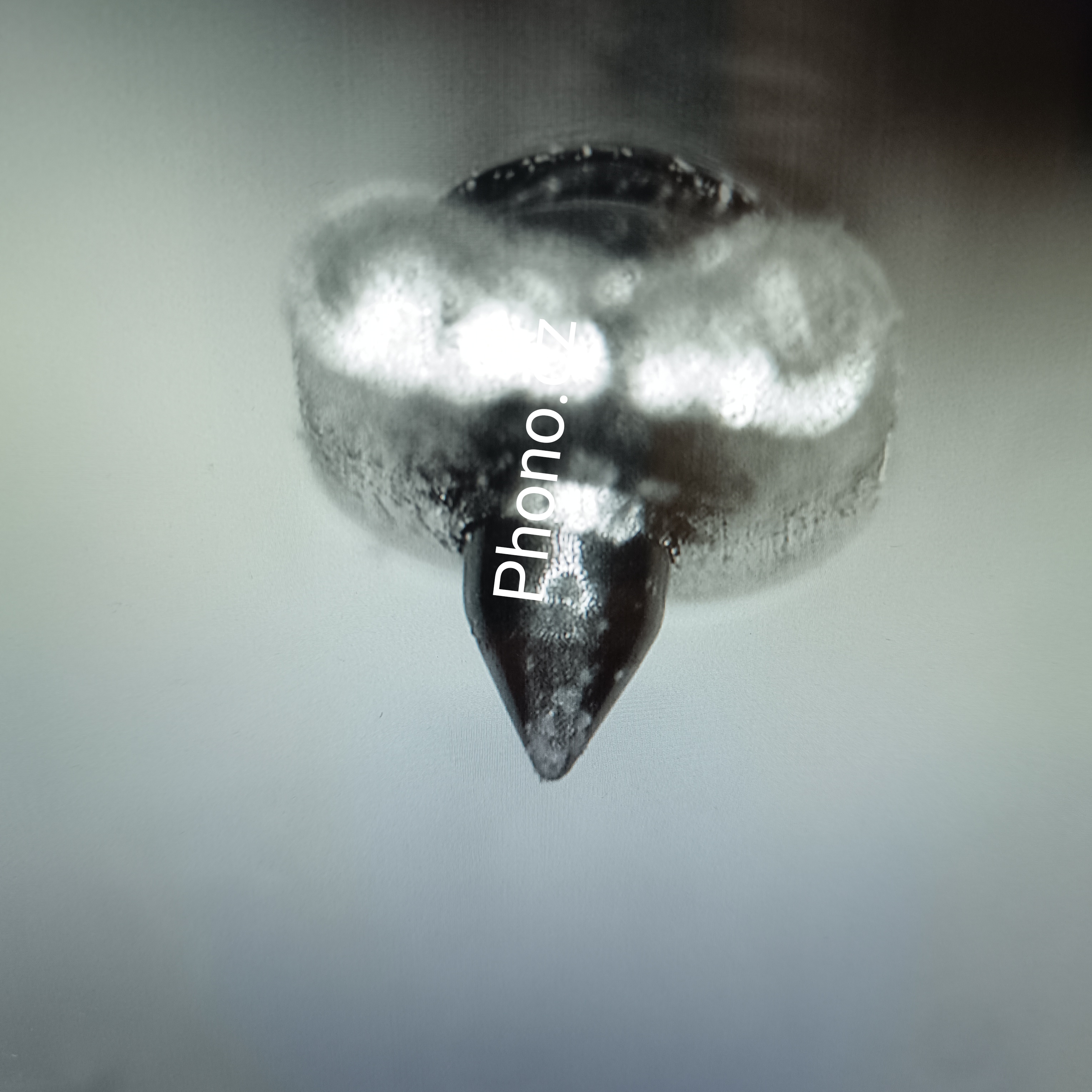

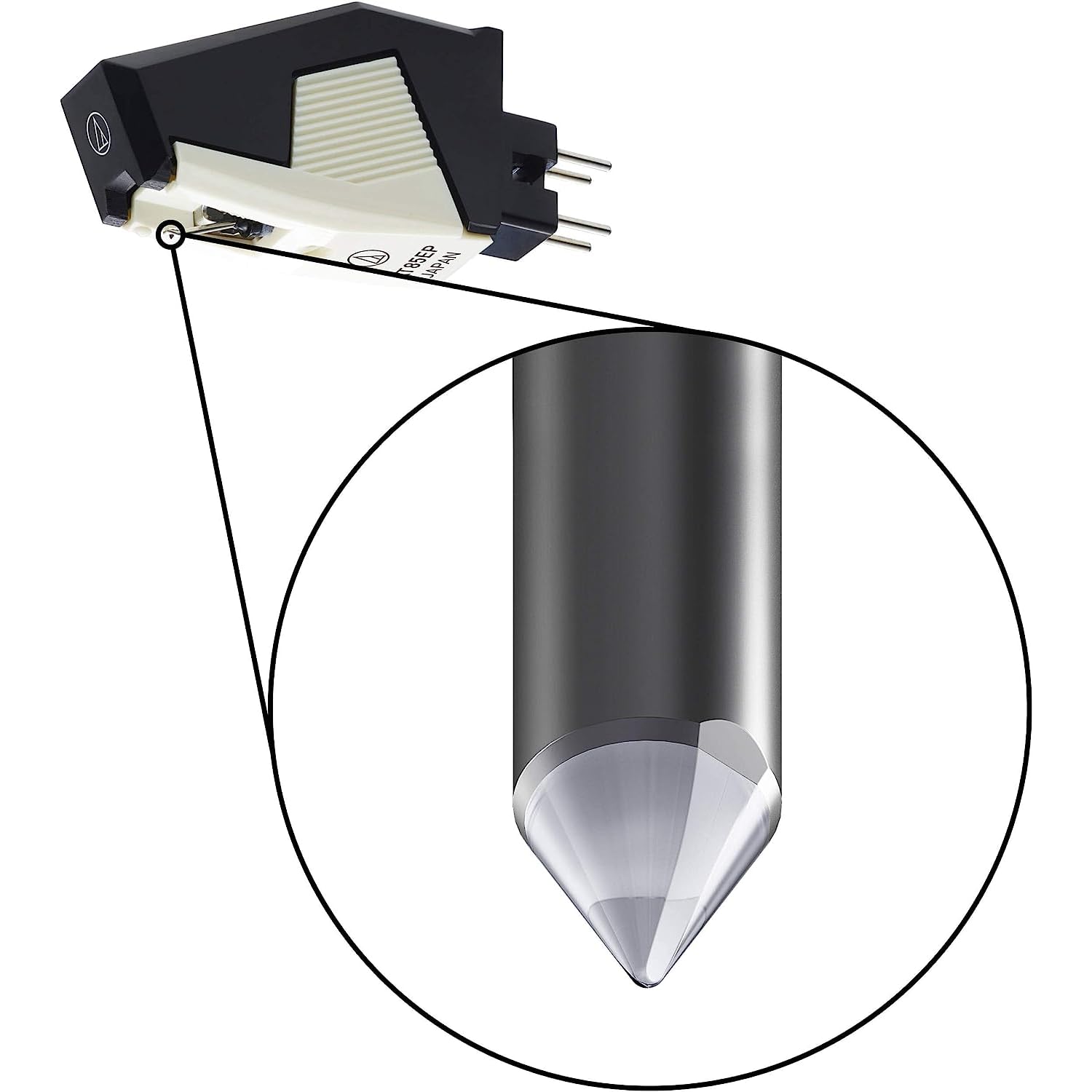

• 0.3 x 0.7 mil elliptical stylus
• Alloy tube cantilever

• Frequency Response	20-20,000 Hz
  Channel Separation	20 (dB at 1 kHz)
  Vertical Tracking Force	1.0-1.5 g (1.25 g standard)
  Stylus Construction	Bonded round shank
  Recommended Load Impedance	47,000 ohms
  Output	3.5 mV (1 kHz, 5 cm/sec.)
  Channel Balance	2.0 dB (1 kHz)
  Stylus Shape	0.3 x 0.7 mil elliptical
  Cantilever	Aluminum pipe
  Mount	P-mount
  Replacement Stylus	ATN85EP





  ---

  Coil impedance: 2.8 k ohms (1 kHz)
  DC resistance: 410 ohms
  Recommended load capacitance: 100 to 200 pF
  Coil inductance: 400 mH (1 kHz)
  Vertical tracking angle: 20°
  Dimensions: 15.3 mm (0.60") H × 10.0 mm (0.39") W × 35.1 mm (1.38") D
  Weight: 6.0 g (0.21 oz)
